ACE_XtReactor Class Reference

An object-oriented event demultiplexor and event handler dispatcher that uses the X Toolkit functions. More...

#include <XtReactor.h>

Inheritance diagram for ACE_XtReactor:

Inheritance graph
[legend]

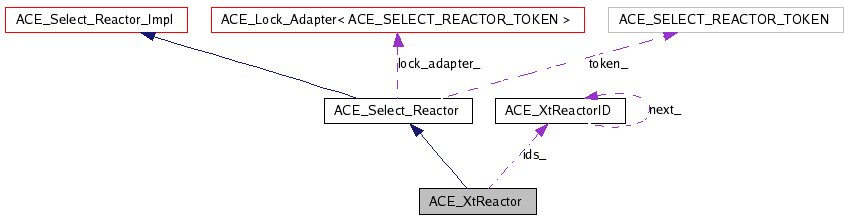

Collaboration diagram for ACE_XtReactor:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_XtReactor (XtAppContext context=0, size_t size=DEFAULT_SIZE, int restart=0, ACE_Sig_Handler *=0)
virtual ~ACE_XtReactor (void)
XtAppContext context (void) const
void context (XtAppContext)
virtual long schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval)
virtual int reset_timer_interval (long timer_id, const ACE_Time_Value &interval)
virtual int cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1)
virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)

Protected Member Functions

virtual int register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
 Register a single <handler>.
virtual int register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
 Register a set of <handlers>.
virtual int remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
 Remove the <handler> associated with this <handle>.
virtual int remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask)
 Remove a set of <handles>.
virtual void remove_XtInput (ACE_HANDLE handle)
 Removes an Xt handle.
virtual int wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
 Wait for events to occur.
virtual int XtWaitForMultipleEvents (int, ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
 Wait for Xt events to occur.

Protected Attributes

XtAppContext context_
ACE_XtReactorIDids_
XtIntervalId timeout_

Private Member Functions

void reset_timeout (void)
 ACE_XtReactor (const ACE_XtReactor &)
 Deny access since member-wise won't work...
ACE_XtReactoroperator= (const ACE_XtReactor &)

Static Private Member Functions

static void TimerCallbackProc (XtPointer closure, XtIntervalId *id)
static void InputCallbackProc (XtPointer closure, int *source, XtInputId *id)

Detailed Description

An object-oriented event demultiplexor and event handler dispatcher that uses the X Toolkit functions.


Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_XtReactor::ACE_XtReactor ( XtAppContext  context = 0,
size_t  size = DEFAULT_SIZE,
int  restart = 0,
ACE_Sig_Handler = 0
)

ACE_XtReactor::~ACE_XtReactor ( void   )  [virtual]

ACE_XtReactor::ACE_XtReactor ( const ACE_XtReactor  )  [private]

Deny access since member-wise won't work...


Member Function Documentation

int ACE_XtReactor::cancel_timer ( long  timer_id,
const void **  arg = 0,
int  dont_call_handle_close = 1
) [virtual]

Cancel the single ACE_Event_Handler that matches the <timer_id> value (which was returned from the <schedule> method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the <Event_Handler> was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

int ACE_XtReactor::cancel_timer ( ACE_Event_Handler handler,
int  dont_call_handle_close = 1
) [virtual]

Cancel all <event_handlers> that match the address of <event_handler>. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns number of handler's cancelled.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

void ACE_XtReactor::context ( XtAppContext   )

XtAppContext ACE_XtReactor::context ( void   )  const

void ACE_XtReactor::InputCallbackProc ( XtPointer  closure,
int *  source,
XtInputId *  id
) [static, private]

ACE_XtReactor& ACE_XtReactor::operator= ( const ACE_XtReactor  )  [private]

int ACE_XtReactor::register_handler_i ( const ACE_Handle_Set handles,
ACE_Event_Handler handler,
ACE_Reactor_Mask  mask
) [protected, virtual]

Register a set of <handlers>.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

int ACE_XtReactor::register_handler_i ( ACE_HANDLE  handle,
ACE_Event_Handler handler,
ACE_Reactor_Mask  mask
) [protected, virtual]

Register a single <handler>.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

int ACE_XtReactor::remove_handler_i ( const ACE_Handle_Set handles,
ACE_Reactor_Mask
) [protected, virtual]

Remove a set of <handles>.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

int ACE_XtReactor::remove_handler_i ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
) [protected, virtual]

Remove the <handler> associated with this <handle>.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

void ACE_XtReactor::remove_XtInput ( ACE_HANDLE  handle  )  [protected, virtual]

Removes an Xt handle.

void ACE_XtReactor::reset_timeout ( void   )  [private]

This method ensures there's an Xt timeout for the first timeout in the Reactor's Timer_Queue.

int ACE_XtReactor::reset_timer_interval ( long  timer_id,
const ACE_Time_Value interval
) [virtual]

Resets the interval of the timer represented by <timer_id> to <interval>, which is specified in relative time to the current <gettimeofday>. If <interval> is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

long ACE_XtReactor::schedule_timer ( ACE_Event_Handler event_handler,
const void *  arg,
const ACE_Time_Value delay,
const ACE_Time_Value interval
) [virtual]

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:
cancel_timer()

reset_timer_interval()

Parameters:
event_handler Event handler to schedule on reactor
arg Argument passed to the handle_timeout() method of event_handler
delay Time interval after which the timer will expire
interval Time interval after which the timer will be automatically rescheduled
Returns:
-1 on failure, a timer_id value on success

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

void ACE_XtReactor::TimerCallbackProc ( XtPointer  closure,
XtIntervalId *  id
) [static, private]

int ACE_XtReactor::wait_for_multiple_events ( ACE_Select_Reactor_Handle_Set ,
ACE_Time_Value
) [protected, virtual]

Wait for events to occur.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

int ACE_XtReactor::XtWaitForMultipleEvents ( int  ,
ACE_Select_Reactor_Handle_Set ,
ACE_Time_Value
) [protected, virtual]

Wait for Xt events to occur.


Member Data Documentation

XtAppContext ACE_XtReactor::context_ [protected]

ACE_XtReactorID* ACE_XtReactor::ids_ [protected]

XtIntervalId ACE_XtReactor::timeout_ [protected]


The documentation for this class was generated from the following files:
Generated on Sun Jul 9 09:27:34 2006 for ACE by  doxygen 1.4.7-1
