ACE_WIN32_Asynch_Timer Class Reference

This class is posted to the completion port when a timer expires. When the complete method of this object is called, the <handler>'s handle_timeout method will be called. More...

#include <WIN32_Proactor.h>

Inheritance diagram for ACE_WIN32_Asynch_Timer:

Inheritance graph
[legend]

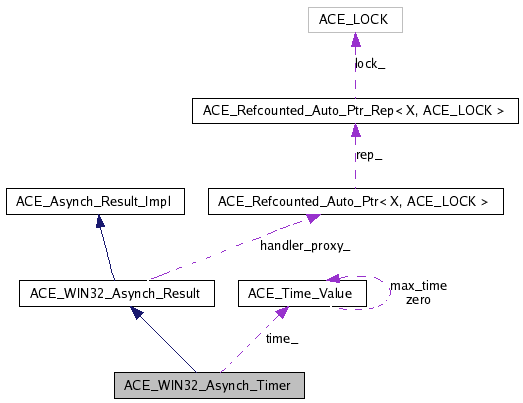

Collaboration diagram for ACE_WIN32_Asynch_Timer:

Collaboration graph
[legend]
List of all members.

Protected Member Functions

 ACE_WIN32_Asynch_Timer (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=0)
 Constructor.
virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0)
 This method calls the <handler>'s handle_timeout method.

Protected Attributes

ACE_Time_Value time_
 Time value requested by caller.

Friends

class ACE_WIN32_Proactor

Detailed Description

This class is posted to the completion port when a timer expires. When the complete method of this object is called, the <handler>'s handle_timeout method will be called.


Constructor & Destructor Documentation

ACE_WIN32_Asynch_Timer::ACE_WIN32_Asynch_Timer ( const ACE_Handler::Proxy_Ptr handler_proxy,
const void *  act,
const ACE_Time_Value tv,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = 0
) [protected]

Constructor.


Member Function Documentation

void ACE_WIN32_Asynch_Timer::complete ( size_t  bytes_transferred,
int  success,
const void *  completion_key,
u_long  error = 0
) [protected, virtual]

This method calls the <handler>'s handle_timeout method.

Implements ACE_Asynch_Result_Impl.


Friends And Related Function Documentation

friend class ACE_WIN32_Proactor [friend]

The factory method for this class is with the POSIX_Proactor class.

Reimplemented from ACE_WIN32_Asynch_Result.


Member Data Documentation

ACE_Time_Value ACE_WIN32_Asynch_Timer::time_ [protected]

Time value requested by caller.


The documentation for this class was generated from the following files:
