#include <Token_Request_Reply.h>

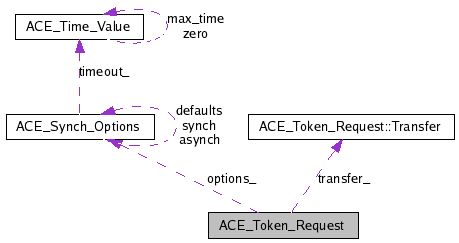

Collaboration diagram for ACE_Token_Request:
Public Types | |
ACQUIRE | |
Acquire the token. | |
RELEASE | |
Release the token. | |
RENEW | |
Renew the token. | |
REMOVE | |
Remove the token. | |
TRY_ACQUIRE | |
enum | OPERATION { ACQUIRE, RELEASE, RENEW, REMOVE, TRY_ACQUIRE } |
Operation types. More... | |
Public Member Functions | |
ACE_Token_Request (void) | |
Default constructor. | |
ACE_Token_Request (int token_type, int proxy_type, ACE_UINT32 operation, const ACE_TCHAR token_name[], const ACE_TCHAR client_id[], const ACE_Synch_Options &options) | |
ACE_UINT32 | length (void) const |
Get the length of the encoded/decoded message. | |
void | length (ACE_UINT32) |
Set the length of the encoded/decoded message. | |
int | proxy_type (void) const |
Get the type of proxy. | |
void | proxy_type (int proxy_type) |
Set the type of proxy. | |
int | token_type (void) const |
Get the type of token. | |
void | token_type (int token_type) |
Set the type of token. | |
ACE_UINT32 | operation_type (void) const |
Get the type of the operation. | |
void | operation_type (ACE_UINT32) |
Set the type of the operation. | |
ACE_UINT32 | requeue_position (void) const |
void | requeue_position (ACE_UINT32) |
ACE_UINT32 | notify (void) const |
Get notify. These should be used when acquire is the operation type. | |
void | notify (ACE_UINT32) |
Set notify. These should be used when acquire is the operation type. | |
ACE_Synch_Options & | options (void) const |
Get the timeout. | |
void | options (const ACE_Synch_Options &options) |
Set the timeout. | |
ACE_TCHAR * | token_name (void) const |
ACE_TCHAR * | client_id (void) const |
void | token_name (const ACE_TCHAR *token_name, const ACE_TCHAR *client_id) |
int | encode (void *&) |
Encode the message before transmission. | |
int | decode (void) |
void | dump (void) const |
Print out the values of the message for debugging purposes. | |
Private Attributes | |
ACE_Token_Request::Transfer | transfer_ |
ACE_TCHAR * | token_name_ |
Pointer to the beginning of the token name in this->data_. | |
ACE_TCHAR * | client_id_ |
Pointer to the beginning of the client id in this->data_;. | |
ACE_Synch_Options | options_ |
Holds arg, sec, usec, etc. | |
Classes | |
struct | Transfer |
This class is implemented to minimize data copying. In particular, all marshaling is done in situ...
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Token_Request::ACE_Token_Request | ( | void | ) |
Default constructor.
ACE_Token_Request::ACE_Token_Request | ( | int | token_type, | |
int | proxy_type, | |||
ACE_UINT32 | operation, | |||
const ACE_TCHAR | token_name[], | |||
const ACE_TCHAR | client_id[], | |||
const ACE_Synch_Options & | options | |||
) |
token_type | MUTEX, RWLOCK | |
proxy_type | MUTEX, RLOCK, WLOCK (acquires mean different things) | |
operation | method | |
token_name | ||
client_id | ||
options | We check USE_TIMEOUT and use the arg. |
ACE_TCHAR* ACE_Token_Request::client_id | ( | void | ) | const |
int ACE_Token_Request::decode | ( | void | ) |
Decode message after reception. This must be called to set the internal options.
void ACE_Token_Request::dump | ( | void | ) | const |
Print out the values of the message for debugging purposes.
int ACE_Token_Request::encode | ( | void *& | ) |
Encode the message before transmission.
void ACE_Token_Request::length | ( | ACE_UINT32 | ) |
Set the length of the encoded/decoded message.
ACE_UINT32 ACE_Token_Request::length | ( | void | ) | const |
Get the length of the encoded/decoded message.
void ACE_Token_Request::notify | ( | ACE_UINT32 | ) |
Set notify. These should be used when acquire is the operation type.
ACE_UINT32 ACE_Token_Request::notify | ( | void | ) | const |
Get notify. These should be used when acquire is the operation type.
void ACE_Token_Request::operation_type | ( | ACE_UINT32 | ) |
Set the type of the operation.
ACE_UINT32 ACE_Token_Request::operation_type | ( | void | ) | const |
Get the type of the operation.
void ACE_Token_Request::options | ( | const ACE_Synch_Options & | options | ) |
Set the timeout.
ACE_Synch_Options& ACE_Token_Request::options | ( | void | ) | const |
Get the timeout.
void ACE_Token_Request::proxy_type | ( | int | proxy_type | ) |
Set the type of proxy.
int ACE_Token_Request::proxy_type | ( | void | ) | const |
Get the type of proxy.
void ACE_Token_Request::requeue_position | ( | ACE_UINT32 | ) |
Set the requeue position. These should be used when renew is the operation type.
ACE_UINT32 ACE_Token_Request::requeue_position | ( | void | ) | const |
Get the requeue position. These should be used when renew is the operation type.
ACE_TCHAR* ACE_Token_Request::token_name | ( | void | ) | const |
void ACE_Token_Request::token_type | ( | int | token_type | ) |
Set the type of token.
int ACE_Token_Request::token_type | ( | void | ) | const |
Get the type of token.
ACE_TCHAR* ACE_Token_Request::client_id_ [private] |
Pointer to the beginning of the client id in this->data_;.
ACE_Synch_Options ACE_Token_Request::options_ [private] |
Holds arg, sec, usec, etc.
ACE_TCHAR* ACE_Token_Request::token_name_ [private] |
Pointer to the beginning of the token name in this->data_.
struct ACE_Token_Request::Transfer ACE_Token_Request::transfer_ [private] |
