ACE_TP_Reactor Class Reference

Specialization of Select Reactor to support thread-pool based event dispatching. More...

#include <TP_Reactor.h>

Inheritance diagram for ACE_TP_Reactor:

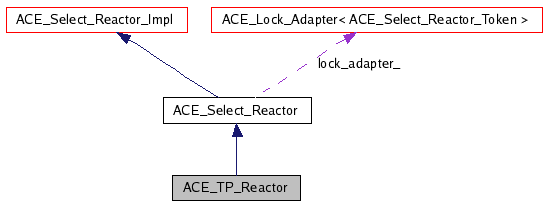

[legend]Collaboration diagram for ACE_TP_Reactor:

[legend]List of all members.

Public Member Functions
	ACE_TP_Reactor (ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int mask_signals=1, int s_queue=ACE_Select_Reactor_Token::FIFO)
	Initialize ACE_TP_Reactor with the default size.
	ACE_TP_Reactor (size_t max_number_of_handles, int restart=0, ACE_Sig_Handler *sh=0, ACE_Timer_Queue *tq=0, int mask_signals=1, int s_queue=ACE_Select_Reactor_Token::FIFO)
virtual int	handle_events (ACE_Time_Value *max_wait_time=0)
virtual int	handle_events (ACE_Time_Value &max_wait_time)
virtual int	register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)
virtual int	register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0)
virtual int	resumable_handler (void)
virtual int	owner (ACE_thread_t n_id, ACE_thread_t *o_id=0)
	Set the new owner of the thread and return the old owner.
virtual int	owner (ACE_thread_t *t_id)
	Return the current owner of the thread.
virtual int	register_handler (ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
virtual int	register_handler (ACE_HANDLE handle, ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
virtual int	register_handler (ACE_Event_Handler *event_handler, ACE_HANDLE event_handle=ACE_INVALID_HANDLE)
virtual int	register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int	register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
Static Public Member Functions
static void	no_op_sleep_hook (void *)
	Called from handle events.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
virtual void	clear_dispatch_mask (ACE_HANDLE handle, ACE_Reactor_Mask mask)
	Template method from the base class.
int	dispatch_i (ACE_Time_Value *max_wait_time, ACE_TP_Token_Guard &guard)
	Dispatch just 1 signal, timer, notification handlers.
int	get_event_for_dispatching (ACE_Time_Value *max_wait_time)
int	handle_signals (int &event_count, ACE_TP_Token_Guard &g)
int	handle_timer_events (int &event_count, ACE_TP_Token_Guard &g)
	Handle timer events.
int	handle_notify_events (int &event_count, ACE_TP_Token_Guard &g)
	Handle notify events.
int	handle_socket_events (int &event_count, ACE_TP_Token_Guard &g)
	handle socket events
virtual void	notify_handle (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Handle_Set &, ACE_Event_Handler *eh, ACE_EH_PTMF callback)
	This method shouldn't get called.
Private Member Functions
ACE_HANDLE	get_notify_handle (void)
int	get_socket_event_info (ACE_EH_Dispatch_Info &info)
	Get socket event dispatch information.
int	dispatch_socket_event (ACE_EH_Dispatch_Info &dispatch_info)
void	clear_handle_read_set (ACE_HANDLE handle)
	Clear the handle from the read_set.
int	post_process_socket_event (ACE_EH_Dispatch_Info &dispatch_info, int status)
	ACE_TP_Reactor (const ACE_TP_Reactor &)
	Deny access since member-wise won't work...
ACE_TP_Reactor &	operator= (const ACE_TP_Reactor &)

---

Detailed Description

Specialization of Select Reactor to support thread-pool based event dispatching.

One of the short comings of the Select_Reactor in ACE is that it did not support a thread pool based event dispatching model, similar to the one in WFMO_Reactor. In Select_Reactor, only thread can be blocked in <handle_events> at any given time.

A new Reactor has been added to ACE that removes this short-coming. TP_Reactor is a specialization of Select Reactor to support thread-pool based event dispatching. This Reactor takes advantage of the fact that events reported by <select> are persistent if not acted upon immediately. It works by remembering the event handler that just got activated, releasing the internal lock (so that some other thread can start waiting in the event loop) and then dispatching the event handler outside the context of the Reactor lock. After the event handler has been dispatched the event handler is resumed again. Don't call remove_handler() from the handle_x methods, instead return -1.

This Reactor is best suited for situations when the callbacks to event handlers can take arbitrarily long and/or a number of threads are available to run the event loops. Note that callback code in Event Handlers (e.g. Event_Handler::handle_input) does not have to be modified or made thread-safe for this Reactor. This is because an activated Event Handler is suspended in the Reactor before the upcall is made and resumed after the upcall completes. Therefore, one Event Handler cannot be called by multiple threads simultaneously.

---

Constructor & Destructor Documentation

ACE_TP_Reactor::ACE_TP_Reactor	(	ACE_Sig_Handler *	= 0,
		ACE_Timer_Queue *	= 0,
		int	mask_signals = 1,
		int	s_queue = ACE_Select_Reactor_Token::FIFO
	)

Initialize ACE_TP_Reactor with the default size.

ACE_TP_Reactor::ACE_TP_Reactor	(	size_t	max_number_of_handles,
		int	restart = 0,
		ACE_Sig_Handler *	sh = 0,
		ACE_Timer_Queue *	tq = 0,
		int	mask_signals = 1,
		int	s_queue = ACE_Select_Reactor_Token::FIFO
	)

Initialize the ACE_TP_Reactor to manage max_number_of_handles. If restart is non-0 then the ACE_Reactor's <handle_events> method will be restarted automatically when <EINTR> occurs. If <signal_handler> or <timer_queue> are non-0 they are used as the signal handler and timer queue, respectively.

ACE_TP_Reactor::ACE_TP_Reactor

(

const ACE_TP_Reactor &

)

[private]

Deny access since member-wise won't work...

---

Member Function Documentation

ACE_INLINE void ACE_TP_Reactor::clear_dispatch_mask	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask
	)			[protected, virtual]

Template method from the base class.

Reimplemented from ACE_Select_Reactor_Impl.

ACE_INLINE void ACE_TP_Reactor::clear_handle_read_set

(

ACE_HANDLE

handle

)

[private]

Clear the handle from the read_set.

int ACE_TP_Reactor::dispatch_i	(	ACE_Time_Value *	max_wait_time,
		ACE_TP_Token_Guard &	guard
	)			[protected]

Dispatch just 1 signal, timer, notification handlers.

int ACE_TP_Reactor::dispatch_socket_event

(

ACE_EH_Dispatch_Info &

dispatch_info

)

[private]

Notify the appropriate <callback> in the context of the <eh> associated with <handle> that a particular event has occurred.

int ACE_TP_Reactor::get_event_for_dispatching

(

ACE_Time_Value *

max_wait_time

)

[protected]

Get the event that needs dispatching. It could be either a signal, timer, notification handlers or return possibly 1 I/O handler for dispatching. In the most common use case, this would return 1 I/O handler for dispatching

ACE_HANDLE ACE_TP_Reactor::get_notify_handle

(

void

)

[private]

Get the handle of the notify pipe from the ready set if there is an event in the notify pipe.

int ACE_TP_Reactor::get_socket_event_info

(

ACE_EH_Dispatch_Info &

info

)

[private]

Get socket event dispatch information.

int ACE_TP_Reactor::handle_events

(

ACE_Time_Value &

max_wait_time

)

[virtual]

This method is just like the one above, except the max_wait_time value is a reference and can therefore never be NULL.

Current <alertable_handle_events> is identical to <handle_events>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::handle_events

(

ACE_Time_Value *

max_wait_time = 0

)

[virtual]

This event loop driver that blocks for <max_wait_time> before returning. It will return earlier if timer events, I/O events, or signal events occur. Note that <max_wait_time> can be 0, in which case this method blocks indefinitely until events occur.

<max_wait_time> is decremented to reflect how much time this call took. For instance, if a time value of 3 seconds is passed to handle_events and an event occurs after 2 seconds, <max_wait_time> will equal 1 second. This can be used if an application wishes to handle events for some fixed amount of time.

Returns the total number of ACE_Event_Handlers that were dispatched, 0 if the <max_wait_time> elapsed without dispatching any handlers, or -1 if something goes wrong.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::handle_notify_events	(	int &	event_count,
		ACE_TP_Token_Guard &	g
	)			[protected]

Handle notify events.

int ACE_TP_Reactor::handle_signals	(	int &	event_count,
		ACE_TP_Token_Guard &	g
	)			[protected]

Method to handle signals

Note:

It is just busted at this point in time.

int ACE_TP_Reactor::handle_socket_events	(	int &	event_count,
		ACE_TP_Token_Guard &	g
	)			[protected]

handle socket events

int ACE_TP_Reactor::handle_timer_events	(	int &	event_count,
		ACE_TP_Token_Guard &	g
	)			[protected]

Handle timer events.

ACE_INLINE void ACE_TP_Reactor::no_op_sleep_hook

(

void *

)

[static]

Called from handle events.

void ACE_TP_Reactor::notify_handle	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask,
		ACE_Handle_Set &	,
		ACE_Event_Handler *	eh,
		ACE_EH_PTMF	callback
	)			[protected, virtual]

This method shouldn't get called.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

ACE_TP_Reactor& ACE_TP_Reactor::operator=

(

const ACE_TP_Reactor &

)

[private]

int ACE_TP_Reactor::owner

(

ACE_thread_t *

t_id

)

[virtual]

Return the current owner of the thread.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::owner	(	ACE_thread_t	n_id,
		ACE_thread_t *	o_id = 0
	)			[virtual]

Set the new owner of the thread and return the old owner.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::post_process_socket_event	(	ACE_EH_Dispatch_Info &	dispatch_info,
		int	status
	)			[private]

int ACE_TP_Reactor::register_handler	(	const ACE_Handle_Set &	handles,
		ACE_Event_Handler *	eh,
		ACE_Reactor_Mask	mask
	)			[virtual]

The following template methods have been declared here to avoid some compilers complaining that we have hidden some of the other virtual functions. We need to override functions with signal handlers and return -1 since the TP_Reactor does not support signals. The definition of the following functions is just a side-effect. The actual definitions will just call the base class method. For detailed documentation of these methods please see Select_Reactor_T.h.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::register_handler	(	ACE_HANDLE	event_handle,
		ACE_HANDLE	io_handle,
		ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	mask
	)			[virtual]

The following template methods have been declared here to avoid some compilers complaining that we have hidden some of the other virtual functions. We need to override functions with signal handlers and return -1 since the TP_Reactor does not support signals. The definition of the following functions is just a side-effect. The actual definitions will just call the base class method. For detailed documentation of these methods please see Select_Reactor_T.h.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::register_handler	(	ACE_Event_Handler *	event_handler,
		ACE_HANDLE	event_handle = ACE_INVALID_HANDLE
	)			[virtual]

The following template methods have been declared here to avoid some compilers complaining that we have hidden some of the other virtual functions. We need to override functions with signal handlers and return -1 since the TP_Reactor does not support signals. The definition of the following functions is just a side-effect. The actual definitions will just call the base class method. For detailed documentation of these methods please see Select_Reactor_T.h.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::register_handler	(	ACE_HANDLE	handle,
		ACE_Event_Handler *	eh,
		ACE_Reactor_Mask	mask
	)			[virtual]

The following template methods have been declared here to avoid some compilers complaining that we have hidden some of the other virtual functions. We need to override functions with signal handlers and return -1 since the TP_Reactor does not support signals. The definition of the following functions is just a side-effect. The actual definitions will just call the base class method. For detailed documentation of these methods please see Select_Reactor_T.h.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::register_handler	(	ACE_Event_Handler *	eh,
		ACE_Reactor_Mask	mask
	)			[virtual]

The following template methods have been declared here to avoid some compilers complaining that we have hidden some of the other virtual functions. We need to override functions with signal handlers and return -1 since the TP_Reactor does not support signals. The definition of the following functions is just a side-effect. The actual definitions will just call the base class method. For detailed documentation of these methods please see Select_Reactor_T.h.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::register_handler	(	const ACE_Sig_Set &	sigset,
		ACE_Event_Handler *	new_sh,
		ACE_Sig_Action *	new_disp = 0
	)			[virtual]

Registers <new_sh> to handle a set of signals <sigset> using the <new_disp>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::register_handler	(	int	signum,
		ACE_Event_Handler *	new_sh,
		ACE_Sig_Action *	new_disp = 0,
		ACE_Event_Handler **	old_sh = 0,
		ACE_Sig_Action *	old_disp = 0
	)			[virtual]

Register <new_sh> to handle the signal <signum> using the <new_disp>. Returns the <old_sh> that was previously registered (if any), along with the <old_disp> of the signal handler.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TP_Reactor::resumable_handler

(

void

)

[virtual]

Does the reactor allow the application to resume the handle on its own ie. can it pass on the control of handle resumption to the application. The TP reactor has can allow applications to resume handles. So return a positive value.

Reimplemented from ACE_Select_Reactor_Impl.

---

Member Data Documentation

ACE_TP_Reactor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

---

The documentation for this class was generated from the following files:

• TP_Reactor.h
• TP_Reactor.cpp
• TP_Reactor.inl

---
