ACE_QtReactor Class Reference

An object-oriented event demultiplexor and event handler dispatcher that uses the Qt Library. This class declaration also uses the extension facilities provided by the Qt. So, readers of the class declaration should not be upset with the appearence of the Keywords like Q_OBJECT, private slots etc. They are specific to Qt which uses these as a call back methods implementation mechanism. More...

#include <QtReactor.h>

Inheritance diagram for ACE_QtReactor:

Inheritance graph
[legend]

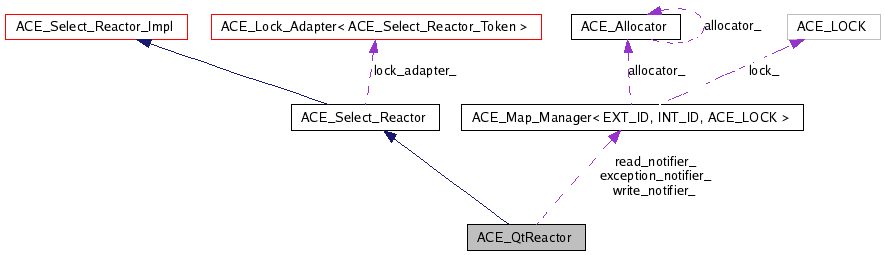

Collaboration diagram for ACE_QtReactor:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_QtReactor (QApplication *qapp=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *notify=0, int mask_signals=1, int s_queue=ACE_SELECT_TOKEN::FIFO)
 Constructor follows .
 ACE_QtReactor (size_t size, QApplication *qapp=0, int restart=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *notify=0, int mask_signals=1, int s_queue=ACE_SELECT_TOKEN::FIFO)
 Constructor follows .
virtual ~ACE_QtReactor (void)
void qapplication (QApplication *qapp)
virtual long schedule_timer (ACE_Event_Handler *handler, const void *arg, const ACE_Time_Value &delay_time, const ACE_Time_Value &interval)
virtual int cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1)
virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)

Protected Types

typedef ACE_Map_Manager< ACE_HANDLE,
QSocketNotifier *, ACE_Null_Mutex
MAP
 Typedef of a map.

Protected Member Functions

virtual int register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
 Register a single <handler>.
virtual int register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
 Register a set of <handlers> with Qt.
virtual int remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
 Remove the <handler> associated with this <handle>.
virtual int remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask mask)
 Remove a set of <handles>.
virtual int wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &handle_set, ACE_Time_Value *max_wait_time)
 Wait for events to occur.
virtual int QtWaitForMultipleEvents (int width, ACE_Select_Reactor_Handle_Set &wait_set, ACE_Time_Value *max_wait_time)
virtual int bit_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Select_Reactor_Handle_Set &handle_set, int ops)
 Allow manipulation of the <wait_set_> mask and <ready_set_> mask.
int set_enable_flag_by_mask (int flag_value, ACE_HANDLE handle, ACE_Reactor_Mask mask)
void create_notifiers_for_handle (ACE_HANDLE handle)
void destroy_notifiers_for_handle (ACE_HANDLE handle)

Protected Attributes

QApplication * qapp_
 Some Qt stuff that we need to have.
MAP read_notifier_
 A notifier for a read.
MAP write_notifier_
 A write notifier.
MAP exception_notifier_
 An exception notifier.
QTimer * qtime_
 The timer class that would provide timer-sgnals & single-shot timers.

Private Slots

void read_event (int FD)
 Dispatch a Read Event.
void write_event (int FD)
 Dispatch a Write Event.
void exception_event (int FD)
 Dispatch an exception event.
void timeout_event (void)
 Dispach a timeout event.

Private Member Functions

void reset_timeout (void)
void reopen_notification_pipe (void)
 reopens notification pipe to create SocketNotifier for it
 ACE_QtReactor (const ACE_QtReactor &)
 Deny access since member-wise won't work...
ACE_QtReactoroperator= (const ACE_QtReactor &)

Detailed Description

An object-oriented event demultiplexor and event handler dispatcher that uses the Qt Library. This class declaration also uses the extension facilities provided by the Qt. So, readers of the class declaration should not be upset with the appearence of the Keywords like Q_OBJECT, private slots etc. They are specific to Qt which uses these as a call back methods implementation mechanism.

Note:
Marek Brudka <mbrudka@elka.pw.edu.pl>: ACE_QtReactor was quickly bugfixed to meet ACE 5.4.2 (6.0.0?) deadline. While it passes QtReactor_Test now, there is a great room for improvements as the implementation is rather inefficient and obfuscated To be more specific:


Member Typedef Documentation

typedef ACE_Map_Manager<ACE_HANDLE, QSocketNotifier *, ACE_Null_Mutex> ACE_QtReactor::MAP [protected]

Typedef of a map.


Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_QtReactor::ACE_QtReactor ( QApplication *  qapp = 0,
ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify notify = 0,
int  mask_signals = 1,
int  s_queue = ACE_SELECT_TOKEN::FIFO
)

Constructor follows .

Parameters:
QApplication *qapp, qapplication which runs events loop

ACE_QtReactor::ACE_QtReactor ( size_t  size,
QApplication *  qapp = 0,
int  restart = 0,
ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify notify = 0,
int  mask_signals = 1,
int  s_queue = ACE_SELECT_TOKEN::FIFO
)

Constructor follows .

Parameters:
QApplication *qapp, qapplication which runs events loop

ACE_QtReactor::~ACE_QtReactor ( void   )  [virtual]

ACE_QtReactor::ACE_QtReactor ( const ACE_QtReactor  )  [private]

Deny access since member-wise won't work...


Member Function Documentation

int ACE_QtReactor::bit_ops ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
ACE_Select_Reactor_Handle_Set handle_set,
int  ops
) [protected, virtual]

Allow manipulation of the <wait_set_> mask and <ready_set_> mask.

Reimplemented from ACE_Select_Reactor_Impl.

int ACE_QtReactor::cancel_timer ( long  timer_id,
const void **  arg = 0,
int  dont_call_handle_close = 1
) [virtual]

Cancel the single ACE_Event_Handler that matches the <timer_id> value (which was returned from the <schedule> method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the <Event_Handler> was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::cancel_timer ( ACE_Event_Handler handler,
int  dont_call_handle_close = 1
) [virtual]

Cancel all <event_handlers> that match the address of <event_handler>. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns number of handler's cancelled.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_QtReactor::create_notifiers_for_handle ( ACE_HANDLE  handle  )  [protected]

void ACE_QtReactor::destroy_notifiers_for_handle ( ACE_HANDLE  handle  )  [protected]

void ACE_QtReactor::exception_event ( int  FD  )  [private, slot]

Dispatch an exception event.

ACE_QtReactor& ACE_QtReactor::operator= ( const ACE_QtReactor  )  [private]

void ACE_QtReactor::qapplication ( QApplication *  qapp  )

int ACE_QtReactor::QtWaitForMultipleEvents ( int  width,
ACE_Select_Reactor_Handle_Set wait_set,
ACE_Time_Value max_wait_time
) [protected, virtual]

void ACE_QtReactor::read_event ( int  FD  )  [private, slot]

Dispatch a Read Event.

int ACE_QtReactor::register_handler_i ( const ACE_Handle_Set handles,
ACE_Event_Handler handler,
ACE_Reactor_Mask  mask
) [protected, virtual]

Register a set of <handlers> with Qt.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::register_handler_i ( ACE_HANDLE  handle,
ACE_Event_Handler handler,
ACE_Reactor_Mask  mask
) [protected, virtual]

Register a single <handler>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::remove_handler_i ( const ACE_Handle_Set handles,
ACE_Reactor_Mask  mask
) [protected, virtual]

Remove a set of <handles>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::remove_handler_i ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
) [protected, virtual]

Remove the <handler> associated with this <handle>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_QtReactor::reopen_notification_pipe ( void   )  [private]

reopens notification pipe to create SocketNotifier for it

void ACE_QtReactor::reset_timeout ( void   )  [private]

This method ensures there's an Qt timeout for the first timeout in the Reactor's Timer_Queue.

long ACE_QtReactor::schedule_timer ( ACE_Event_Handler handler,
const void *  arg,
const ACE_Time_Value delay_time,
const ACE_Time_Value interval
) [virtual]

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:
cancel_timer()

reset_timer_interval()

Parameters:
event_handler Event handler to schedule on reactor
arg Argument passed to the handle_timeout() method of event_handler
delay Time interval after which the timer will expire
interval Time interval after which the timer will be automatically rescheduled
Returns:
-1 on failure, a timer_id value on success

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::set_enable_flag_by_mask ( int  flag_value,
ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
) [protected]

void ACE_QtReactor::timeout_event ( void   )  [private, slot]

Dispach a timeout event.

int ACE_QtReactor::wait_for_multiple_events ( ACE_Select_Reactor_Handle_Set handle_set,
ACE_Time_Value max_wait_time
) [protected, virtual]

Wait for events to occur.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_QtReactor::write_event ( int  FD  )  [private, slot]

Dispatch a Write Event.


Member Data Documentation

MAP ACE_QtReactor::exception_notifier_ [protected]

An exception notifier.

QApplication* ACE_QtReactor::qapp_ [protected]

Some Qt stuff that we need to have.

QTimer* ACE_QtReactor::qtime_ [protected]

The timer class that would provide timer-sgnals & single-shot timers.

MAP ACE_QtReactor::read_notifier_ [protected]

A notifier for a read.

MAP ACE_QtReactor::write_notifier_ [protected]

A write notifier.


The documentation for this class was generated from the following files:
