ACE_Multihomed_INET_Addr Class Reference

Extends ACE_INET_Addr with support for multi-homed addresses. More...

#include <Multihomed_INET_Addr.h>

Inheritance diagram for ACE_Multihomed_INET_Addr:

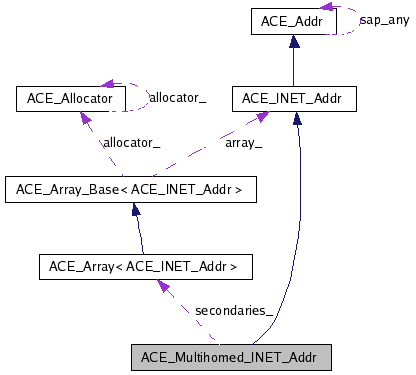

[legend]Collaboration diagram for ACE_Multihomed_INET_Addr:

[legend]List of all members.

Public Member Functions
	ACE_Multihomed_INET_Addr (void)
	Default constructor.
	ACE_Multihomed_INET_Addr (const char address[])
	ACE_Multihomed_INET_Addr (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
	ACE_Multihomed_INET_Addr (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
	ACE_Multihomed_INET_Addr (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
int	set (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
	~ACE_Multihomed_INET_Addr (void)
	Default dtor.
int	set (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
int	set (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
void	set_port_number (u_short, int encode=1)
size_t	get_num_secondary_addresses () const
int	get_secondary_addresses (ACE_INET_Addr *secondary_addrs, size_t size) const
void	get_addresses (sockaddr_in *addrs, size_t size) const
void	get_addresses (sockaddr_in6 *addrs, size_t size) const
	IPV6 version of the above.
Private Attributes
ACE_Array< ACE_INET_Addr >	secondaries_

---

Detailed Description

Extends ACE_INET_Addr with support for multi-homed addresses.

---

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr

(

void

)

Default constructor.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr

(

const char

address[]

)

[explicit]

Initializes an <ACE_Multihomed_INET_Addr> from the <address>, which can be "ip-number:port-number" (e.g., "tango.cs.wustl.edu:1234" or "128.252.166.57:1234"). If there is no ':' in the <address> it is assumed to be a port number, with the IP address being INADDR_ANY.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr	(	u_short	port_number,
		const char	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const char *	(secondary_host_names[]) = 0,
		size_t	size = 0
	)

Constructs an <ACE_Multihomed_INET_Addr> from a <port_number>, a <primary_host_name>, and an array of <secondary_host_names>. <size> is taken to be the length of the array. If <encode> is non-zero, then <port_number> is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. <address_family> can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr	(	u_short	port_number,
		ACE_UINT32	primary_ip_addr = INADDR_ANY,
		int	encode = 1,
		const ACE_UINT32 *	secondary_ip_addrs = 0,
		size_t	size = 0
	)

Constructs an <ACE_Multihomed_INET_Addr> from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr	(	u_short	port_number,
		const wchar_t	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const wchar_t *	(secondary_host_names[]) = 0,
		size_t	size = 0
	)

WCHAR versions of the methods that take char's as arguments.

ACE_Multihomed_INET_Addr::~ACE_Multihomed_INET_Addr

(

void

)

Default dtor.

---

Member Function Documentation

void ACE_Multihomed_INET_Addr::get_addresses	(	sockaddr_in6 *	addrs,
		size_t	size
	)			const

IPV6 version of the above.

void ACE_Multihomed_INET_Addr::get_addresses	(	sockaddr_in *	addrs,
		size_t	size
	)			const

Initialize user-supplied array <addrs> with the the current primary and secondary addresses. <size> is taken as the size of this array.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE size_t ACE_Multihomed_INET_Addr::get_num_secondary_addresses

(

)

const

Returns the number of secondary addresses.

int ACE_Multihomed_INET_Addr::get_secondary_addresses	(	ACE_INET_Addr *	secondary_addrs,
		size_t	size
	)			const

Initialize user-supplied array <secondary_addrs> with the current secondary addresses. <size> is taken as the size of this array.

int ACE_Multihomed_INET_Addr::set	(	u_short	port_number,
		ACE_UINT32	primary_ip_addr = INADDR_ANY,
		int	encode = 1,
		const ACE_UINT32 *	secondary_ip_addrs = 0,
		size_t	size = 0
	)

Initializes an <ACE_Multihomed_INET_Addr> from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

int ACE_Multihomed_INET_Addr::set	(	u_short	port_number,
		const char	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const char *	(secondary_host_names[]) = 0,
		size_t	size = 0
	)

Initializes an <ACE_Multihomed_INET_Addr> from a <port_number>, a <primary_host_name>, and an array of <secondary_host_names>. <size> is taken to be the length of the array. If <encode> is non-zero, then <port_number> is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. <address_family> can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

int ACE_Multihomed_INET_Addr::set	(	u_short	port_number,
		const wchar_t	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const wchar_t *	(secondary_host_names[]) = 0,
		size_t	size = 0
	)

void ACE_Multihomed_INET_Addr::set_port_number	(	u_short	,
		int	encode = 1
	)

Sets the port number without affecting the host name. The port numbers of the primary address, and of any and all secondary addresses, are affected. If <encode> is enabled, then <port_number> is converted into network byte order, otherwise it is assumed to be in network byte order already and is passed straight through.

Reimplemented from ACE_INET_Addr.

---

Member Data Documentation

ACE_Array<ACE_INET_Addr> ACE_Multihomed_INET_Addr::secondaries_ [private]

---

The documentation for this class was generated from the following files:

• Multihomed_INET_Addr.h
• Multihomed_INET_Addr.cpp
• Multihomed_INET_Addr.inl

---
