ACE_Message_Queue<> Class Template Reference

A message queueing facility with parameterized synchronization capability. ACE_Message_Queue is modeled after the queueing facilities in System V STREAMs. More...

#include <Message_Queue_T.h>

Inheritance diagram for ACE_Message_Queue<>:

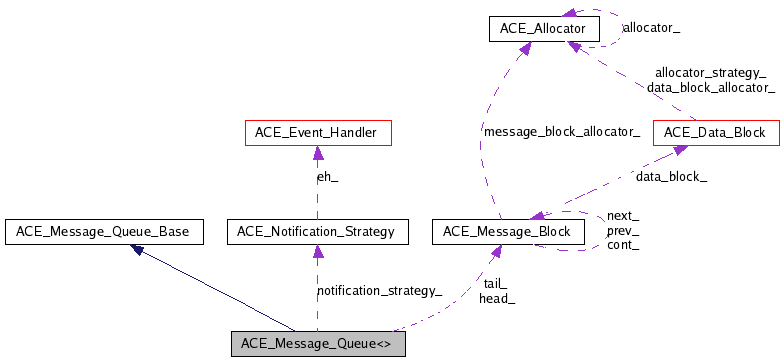

[legend]Collaboration diagram for ACE_Message_Queue<>:

[legend]List of all members.

Public Types
typedef ACE_Message_Queue_Iterator< ACE_SYNCH_USE >	ITERATOR
typedef ACE_Message_Queue_Reverse_Iterator< ACE_SYNCH_USE >	REVERSE_ITERATOR
Public Member Functions
virtual int	close (void)
virtual	~ACE_Message_Queue (void)
	Releases all resources from the message queue and marks it deactivated.
virtual int	flush (void)
virtual int	flush_i (void)
virtual int	is_full (void)
	True if queue is full, else false.
virtual int	is_empty (void)
	True if queue is empty, else false.
virtual ACE_SYNCH_MUTEX_T &	lock (void)
	Returns a reference to the lock used by the ACE_Message_Queue.
virtual void	dump (void) const
	Dump the state of an object.
	ACE_Message_Queue (size_t hwm=ACE_Message_Queue_Base::DEFAULT_HWM, size_t lwm=ACE_Message_Queue_Base::DEFAULT_LWM, ACE_Notification_Strategy *ns=0)
virtual int	open (size_t hwm=ACE_Message_Queue_Base::DEFAULT_HWM, size_t lwm=ACE_Message_Queue_Base::DEFAULT_LWM, ACE_Notification_Strategy *ns=0)
Enqueue and dequeue methods
The enqueue and dequeue methods accept a timeout value passed as an ACE_Time_Value *. In all cases, if the timeout pointer is 0, the caller will block until action is possible. If the timeout pointer is non-zero, the call will wait (if needed, subject to water mark settings) until the absolute time specified in the referenced ACE_Time_Value object is reached. If the time is reached before the desired action is possible, the method will return -1 with errno set to EWOULDBLOCK. Regardless of the timeout setting, however, these methods will also fail and return -1 when the queue is closed, deactivated, pulsed, or when a signal occurs. See C++NPv2 Section 6.2 and APG Section 12.3 for a fuller treatment of ACE_Message_Queue, enqueueing, dequeueing, and how these operations are affected by queue state transitions.
virtual int	peek_dequeue_head (ACE_Message_Block *&first_item, ACE_Time_Value *timeout=0)
virtual int	enqueue_prio (ACE_Message_Block *new_item, ACE_Time_Value *timeout=0)
virtual int	enqueue_deadline (ACE_Message_Block *new_item, ACE_Time_Value *timeout=0)
virtual int	enqueue (ACE_Message_Block *new_item, ACE_Time_Value *timeout=0)
virtual int	enqueue_tail (ACE_Message_Block *new_item, ACE_Time_Value *timeout=0)
virtual int	enqueue_head (ACE_Message_Block *new_item, ACE_Time_Value *timeout=0)
virtual int	dequeue (ACE_Message_Block *&first_item, ACE_Time_Value *timeout=0)
	This method is an alias for the dequeue_head() method.
virtual int	dequeue_head (ACE_Message_Block *&first_item, ACE_Time_Value *timeout=0)
virtual int	dequeue_prio (ACE_Message_Block *&first_item, ACE_Time_Value *timeout=0)
virtual int	dequeue_tail (ACE_Message_Block *&dequeued, ACE_Time_Value *timeout=0)
virtual int	dequeue_deadline (ACE_Message_Block *&dequeued, ACE_Time_Value *timeout=0)
Queue statistics methods
virtual size_t	message_bytes (void)
virtual size_t	message_length (void)
virtual size_t	message_count (void)
virtual void	message_bytes (size_t new_size)
virtual void	message_length (size_t new_length)
Water mark (flow control) methods
virtual size_t	high_water_mark (void)
virtual void	high_water_mark (size_t hwm)
virtual size_t	low_water_mark (void)
virtual void	low_water_mark (size_t lwm)
Activation and queue state methods
See C++NPv2 Section 6.2 and APG Section 12.3 for a fuller treatment of queue states and transitions and how the transitions affect message enqueueing and dequeueing operations.
virtual int	deactivate (void)
virtual int	activate (void)
virtual int	pulse (void)
virtual int	state (void)
virtual int	deactivated (void)
Notification strategy methods
virtual int	notify (void)
virtual ACE_Notification_Strategy *	notification_strategy (void)
	Get the notification strategy for the <Message_Queue>.
virtual void	notification_strategy (ACE_Notification_Strategy *s)
	Set the notification strategy for the <Message_Queue>.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
virtual int	enqueue_i (ACE_Message_Block *new_item)
	Enqueue an <ACE_Message_Block *> in accordance with its priority.
virtual int	enqueue_deadline_i (ACE_Message_Block *new_item)
	Enqueue an <ACE_Message_Block *> in accordance with its deadline time.
virtual int	enqueue_tail_i (ACE_Message_Block *new_item)
	Enqueue an <ACE_Message_Block *> at the end of the queue.
virtual int	enqueue_head_i (ACE_Message_Block *new_item)
	Enqueue an <ACE_Message_Block *> at the head of the queue.
virtual int	dequeue_head_i (ACE_Message_Block *&first_item)
virtual int	dequeue_prio_i (ACE_Message_Block *&dequeued)
virtual int	dequeue_tail_i (ACE_Message_Block *&first_item)
virtual int	dequeue_deadline_i (ACE_Message_Block *&first_item)
virtual int	is_full_i (void)
	True if queue is full, else false.
virtual int	is_empty_i (void)
	True if queue is empty, else false.
virtual int	deactivate_i (int pulse=0)
virtual int	activate_i (void)
	Activate the queue.
virtual int	wait_not_full_cond (ACE_Guard< ACE_SYNCH_MUTEX_T > &mon, ACE_Time_Value *timeout)
	Wait for the queue to become non-full.
virtual int	wait_not_empty_cond (ACE_Guard< ACE_SYNCH_MUTEX_T > &mon, ACE_Time_Value *timeout)
	Wait for the queue to become non-empty.
virtual int	signal_enqueue_waiters (void)
	Inform any threads waiting to enqueue that they can procede.
virtual int	signal_dequeue_waiters (void)
	Inform any threads waiting to dequeue that they can procede.
Protected Attributes
ACE_Message_Block *	head_
	Pointer to head of ACE_Message_Block list.
ACE_Message_Block *	tail_
	Pointer to tail of ACE_Message_Block list.
size_t	low_water_mark_
	Lowest number before unblocking occurs.
size_t	high_water_mark_
	Greatest number of bytes before blocking.
size_t	cur_bytes_
	Current number of bytes in the queue.
size_t	cur_length_
	Current length of messages in the queue.
size_t	cur_count_
	Current number of messages in the queue.
ACE_Notification_Strategy *	notification_strategy_
	The notification strategy used when a new message is enqueued.
ACE_SYNCH_MUTEX_T	lock_
	Protect queue from concurrent access.
ACE_SYNCH_CONDITION_T	not_empty_cond_
	Used to make threads sleep until the queue is no longer empty.
ACE_SYNCH_CONDITION_T	not_full_cond_
	Used to make threads sleep until the queue is no longer full.
Private Member Functions
void	operator= (const ACE_Message_Queue< _ACE_SYNCH > &)
	ACE_Message_Queue (const ACE_Message_Queue< _ACE_SYNCH > &)
Friends
class	ACE_Message_Queue_Iterator< ACE_SYNCH_USE >
class	ACE_Message_Queue_Reverse_Iterator< ACE_SYNCH_USE >

---

Detailed Description

template<ACE_SYNCH_DECL>
class ACE_Message_Queue<>

A message queueing facility with parameterized synchronization capability. ACE_Message_Queue is modeled after the queueing facilities in System V STREAMs.

ACE_Message_Queue is the primary queueing facility for messages in the ACE framework. It's one template argument parameterizes the queue's synchronization. The argument specifies a synchronization strategy. The two main strategies available for ACE_SYNCH_DECL are:

1. ACE_MT_SYNCH: all operations are thread-safe
2. ACE_NULL_SYNCH: no synchronization and no locking overhead

All data passing through ACE_Message_Queue is in the form of ACE_Message_Block objects.

See also:

ACE_Message_Block.

---

Member Typedef Documentation

template<ACE_SYNCH_DECL >

typedef ACE_Message_Queue_Iterator<ACE_SYNCH_USE> ACE_Message_Queue<>::ITERATOR

template<ACE_SYNCH_DECL >

typedef ACE_Message_Queue_Reverse_Iterator<ACE_SYNCH_USE> ACE_Message_Queue<>::REVERSE_ITERATOR

---

Constructor & Destructor Documentation

template<ACE_SYNCH_DECL >

ACE_Message_Queue<>::ACE_Message_Queue	(	size_t	hwm = ACE_Message_Queue_Base::DEFAULT_HWM,
		size_t	lwm = ACE_Message_Queue_Base::DEFAULT_LWM,
		ACE_Notification_Strategy *	ns = 0
	)

Initialize an ACE_Message_Queue.

Parameters:

	hwm	High water mark. Determines how many bytes can be stored in a queue before it's considered full. Supplier threads must block until the queue is no longer full.
	lwm	Low water mark. Determines how many bytes must be in the queue before supplier threads are allowed to enqueue additional data. By default, the hwm equals lwm, which means that suppliers will be able to enqueue new messages as soon as a consumer removes any message from the queue. Making the low water mark smaller than the high water mark forces consumers to drain more messages from the queue before suppliers can enqueue new messages, which can minimize the "silly window syndrome."
	ns	Notification strategy. Pointer to an object conforming to the ACE_Notification_Strategy interface. If set, the object's notify(void) method will be called each time data is added to this ACE_Message_Queue.

See also:

ACE_Reactor_Notification_Strategy.

template<ACE_SYNCH_DECL >

virtual ACE_Message_Queue<>::~ACE_Message_Queue

(

void

)

[virtual]

Releases all resources from the message queue and marks it deactivated.

template<ACE_SYNCH_DECL >

ACE_Message_Queue<>::ACE_Message_Queue

(

const ACE_Message_Queue< _ACE_SYNCH > &

)

[private]

---

Member Function Documentation

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::activate

(

void

)

[virtual]

Reactivate the queue so that threads can enqueue and dequeue messages again. Returns the state of the queue before the call.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::activate_i

(

void

)

[protected, virtual]

Activate the queue.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::close

(

void

)

[virtual]

Releases all resources from the message queue and marks it deactivated.

See also:

flush().

Return values:

The

number of messages released from the queue; -1 on error.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::deactivate

(

void

)

[virtual]

Deactivate the queue and wakeup all threads waiting on the queue so they can continue. No messages are removed from the queue, however. Any other operations called until the queue is activated again will immediately return -1 with <errno> == ESHUTDOWN. Returns WAS_INACTIVE if queue was inactive before the call and WAS_ACTIVE if queue was active before the call.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::deactivate_i

(

int

pulse = 0

)

[protected, virtual]

Notifies all waiting threads that the queue has been deactivated so they can wakeup and continue other processing. No messages are removed from the queue.

Parameters:

pulse

If 0, the queue's state is changed to DEACTIVATED and any other operations called until the queue is reactivated will immediately return -1 with errno == ESHUTDOWN. If not zero, only the waiting threads are notified and the queue's state changes to PULSED.

Returns:

The state of the queue before the call.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::deactivated

(

void

)

[virtual]

Returns true if the state of the queue is <DEACTIVATED>, but false if the queue's is <ACTIVATED> or <PULSED>.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue	(	ACE_Message_Block *&	first_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

This method is an alias for the dequeue_head() method.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_deadline	(	ACE_Message_Block *&	dequeued,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Dequeue the ACE_Message_Block with the earliest deadline time and return a pointer to the dequeued block.

Parameters:

	dequeued	Reference to an ACE_Message_Block * that will be set to the address of the dequeued block.
	timeout	The absolute time the caller will wait until for a block to be dequeued.

Return values:

	>=0	The number of ACE_Message_Blocks remaining in the queue.
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_deadline_i

(

ACE_Message_Block *&

first_item

)

[protected, virtual]

Dequeue and return the <ACE_Message_Block *> with the lowest deadline time.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_head	(	ACE_Message_Block *&	first_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Dequeue the ACE_Message_Block at the head of the queue and return a pointer to the dequeued block.

Parameters:

	first_item	Reference to an ACE_Message_Block * that will be set to the address of the dequeued block.
	timeout	The absolute time the caller will wait until for a block to be dequeued.

Return values:

	>=0	The number of ACE_Message_Blocks remaining in the queue.
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

Implements ACE_Message_Queue_Base.

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_head_i

(

ACE_Message_Block *&

first_item

)

[protected, virtual]

Dequeue and return the <ACE_Message_Block *> at the head of the queue.

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_prio	(	ACE_Message_Block *&	first_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Dequeue the ACE_Message_Block that has the lowest priority (preserves FIFO order for messages with the same priority) and return a pointer to the dequeued block.

Parameters:

	first_item	Reference to an ACE_Message_Block * that will be set to the address of the dequeued block.
	timeout	The absolute time the caller will wait until for a block to be dequeued.

Return values:

	>=0	The number of ACE_Message_Blocks remaining in the queue.
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_prio_i

(

ACE_Message_Block *&

dequeued

)

[protected, virtual]

Dequeue and return the <ACE_Message_Block *> with the lowest priority.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_tail	(	ACE_Message_Block *&	dequeued,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Dequeue the ACE_Message_Block at the tail of the queue and return a pointer to the dequeued block.

Parameters:

	dequeued	Reference to an ACE_Message_Block * that will be set to the address of the dequeued block.
	timeout	The absolute time the caller will wait until for a block to be dequeued.

Return values:

	>=0	The number of ACE_Message_Blocks remaining in the queue.
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::dequeue_tail_i

(

ACE_Message_Block *&

first_item

)

[protected, virtual]

Dequeue and return the <ACE_Message_Block *> at the tail of the queue.

template<ACE_SYNCH_DECL >

virtual void ACE_Message_Queue<>::dump

(

void

)

const [virtual]

Dump the state of an object.

Implements ACE_Message_Queue_Base.

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue	(	ACE_Message_Block *	new_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Deprecated:

This is an alias for enqueue_prio(). It's only here for backwards compatibility and will go away in a subsequent release. Please use enqueue_prio() instead.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_deadline	(	ACE_Message_Block *	new_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Enqueue an ACE_Message_Block into the queue in accordance with the block's deadline time. FIFO order is maintained when messages of the same deadline time are inserted consecutively.

Parameters:

	new_item	Pointer to an ACE_Message_Block that will be added to the queue. The block's msg_deadline_time() method will be called to obtain the relative queueing position.
	timeout	The absolute time the caller will wait until for the block to be queued.

Return values:

	>0	The number of ACE_Message_Blocks on the queue after adding the specified block.
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_deadline_i

(

ACE_Message_Block *

new_item

)

[protected, virtual]

Enqueue an <ACE_Message_Block *> in accordance with its deadline time.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_head	(	ACE_Message_Block *	new_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Enqueue one or more ACE_Message_Block objects at the head of the queue. If the new_item next() pointer is non-zero, it is assumed to be the start of a series of ACE_Message_Block objects connected via their next() pointers. The series of blocks will be added to the queue in the same order they are passed in as.

Parameters:

	new_item	Pointer to an ACE_Message_Block that will be added to the queue. If the block's next() pointer is non-zero, all blocks chained from the next() pointer are enqueued as well.
	timeout	The absolute time the caller will wait until for the block to be queued.

Return values:

	>0	The number of ACE_Message_Blocks on the queue after adding the specified block(s).
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_head_i

(

ACE_Message_Block *

new_item

)

[protected, virtual]

Enqueue an <ACE_Message_Block *> at the head of the queue.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_i

(

ACE_Message_Block *

new_item

)

[protected, virtual]

Enqueue an <ACE_Message_Block *> in accordance with its priority.

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_prio	(	ACE_Message_Block *	new_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Enqueue an ACE_Message_Block into the queue in accordance with the ACE_Message_Block's priority (0 is lowest priority). FIFO order is maintained when messages of the same priority are inserted consecutively.

Parameters:

	new_item	Pointer to an ACE_Message_Block that will be added to the queue. The block's msg_priority() method will be called to obtain the queueing priority.
	timeout	The absolute time the caller will wait until for the block to be queued.

Return values:

	>0	The number of ACE_Message_Blocks on the queue after adding the specified block.
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_tail	(	ACE_Message_Block *	new_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Enqueue one or more ACE_Message_Block objects at the tail of the queue. If the new_item next() pointer is non-zero, it is assumed to be the start of a series of ACE_Message_Block objects connected via their next() pointers. The series of blocks will be added to the queue in the same order they are passed in as.

Parameters:

	new_item	Pointer to an ACE_Message_Block that will be added to the queue. If the block's next() pointer is non-zero, all blocks chained from the next() pointer are enqueued as well.
	timeout	The absolute time the caller will wait until for the block to be queued.

Return values:

	>0	The number of ACE_Message_Blocks on the queue after adding the specified block(s).
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

Implements ACE_Message_Queue_Base.

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::enqueue_tail_i

(

ACE_Message_Block *

new_item

)

[protected, virtual]

Enqueue an <ACE_Message_Block *> at the end of the queue.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::flush

(

void

)

[virtual]

This method holds the queue lock during this operation.

Returns:

The number of messages flushed; -1 on error.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::flush_i

(

void

)

[virtual]

Precondition:

The caller must be holding the queue lock before calling this method.

Returns:

The number of messages flushed.

template<ACE_SYNCH_DECL >

virtual void ACE_Message_Queue<>::high_water_mark

(

size_t

hwm

)

[virtual]

Set the high watermark, which determines how many bytes can be stored in a queue before it's considered "full."

template<ACE_SYNCH_DECL >

virtual size_t ACE_Message_Queue<>::high_water_mark

(

void

)

[virtual]

Get high watermark.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::is_empty

(

void

)

[virtual]

True if queue is empty, else false.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::is_empty_i

(

void

)

[protected, virtual]

True if queue is empty, else false.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::is_full

(

void

)

[virtual]

True if queue is full, else false.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::is_full_i

(

void

)

[protected, virtual]

True if queue is full, else false.

template<ACE_SYNCH_DECL >

virtual ACE_SYNCH_MUTEX_T& ACE_Message_Queue<>::lock

(

void

)

[virtual]

Returns a reference to the lock used by the ACE_Message_Queue.

template<ACE_SYNCH_DECL >

virtual void ACE_Message_Queue<>::low_water_mark

(

size_t

lwm

)

[virtual]

Set the low watermark, which determines how many bytes must be in the queue before supplier threads are allowed to enqueue additional ACE_Message_Blocks.

template<ACE_SYNCH_DECL >

virtual size_t ACE_Message_Queue<>::low_water_mark

(

void

)

[virtual]

Get low watermark.

template<ACE_SYNCH_DECL >

virtual void ACE_Message_Queue<>::message_bytes

(

size_t

new_size

)

[virtual]

New value of the number of total bytes on the queue, i.e., sum of the message block sizes.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual size_t ACE_Message_Queue<>::message_bytes

(

void

)

[virtual]

Number of total bytes on the queue, i.e., sum of the message block sizes.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual size_t ACE_Message_Queue<>::message_count

(

void

)

[virtual]

Number of total messages on the queue.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual void ACE_Message_Queue<>::message_length

(

size_t

new_length

)

[virtual]

New value of the number of total length on the queue, i.e., sum of the message block lengths.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual size_t ACE_Message_Queue<>::message_length

(

void

)

[virtual]

Number of total length on the queue, i.e., sum of the message block lengths.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual void ACE_Message_Queue<>::notification_strategy

(

ACE_Notification_Strategy *

s

)

[virtual]

Set the notification strategy for the <Message_Queue>.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual ACE_Notification_Strategy* ACE_Message_Queue<>::notification_strategy

(

void

)

[virtual]

Get the notification strategy for the <Message_Queue>.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::notify

(

void

)

[virtual]

This hook is automatically invoked by <enqueue_head>, <enqueue_tail>, and <enqueue_prio> when a new item is inserted into the queue. Subclasses can override this method to perform specific notification strategies (e.g., signaling events for a <WFMO_Reactor>, notifying a <Reactor>, etc.). In a multi-threaded application with concurrent consumers, there is no guarantee that the queue will be still be non-empty by the time the notification occurs.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::open	(	size_t	hwm = ACE_Message_Queue_Base::DEFAULT_HWM,
		size_t	lwm = ACE_Message_Queue_Base::DEFAULT_LWM,
		ACE_Notification_Strategy *	ns = 0
	)			[virtual]

Initialize an ACE_Message_Queue.

Parameters:

	hwm	High water mark. Determines how many bytes can be stored in a queue before it's considered full. Supplier threads must block until the queue is no longer full.
	lwm	Low water mark. Determines how many bytes must be in the queue before supplier threads are allowed to enqueue additional data. By default, the hwm equals lwm, which means that suppliers will be able to enqueue new messages as soon as a consumer removes any message from the queue. Making the low water mark smaller than the high water mark forces consumers to drain more messages from the queue before suppliers can enqueue new messages, which can minimize the "silly window syndrome."
	ns	Notification strategy. Pointer to an object conforming to the ACE_Notification_Strategy interface. If set, the object's notify(void) method will be called each time data is added to this ACE_Message_Queue.

See also:

ACE_Reactor_Notification_Strategy.

template<ACE_SYNCH_DECL >

void ACE_Message_Queue<>::operator=

(

const ACE_Message_Queue< _ACE_SYNCH > &

)

[private]

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::peek_dequeue_head	(	ACE_Message_Block *&	first_item,
		ACE_Time_Value *	timeout = 0
	)			[virtual]

Retrieve a pointer to the first ACE_Message_Block in the queue without removing it.

Note:

Because the block whose pointer is returned is still on the queue, another thread may dequeue the referenced block at any time, including before the calling thread examines the peeked-at block. Be very careful with this method in multithreaded queueing situations.

Parameters:

	first_item	Reference to an ACE_Message_Block * that will point to the first block on the queue. The block remains on the queue until this or another thread dequeues it.
	timeout	The absolute time the caller will wait until for a block to be queued.

Return values:

	>0	The number of ACE_Message_Blocks on the queue.
	-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

Implements ACE_Message_Queue_Base.

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::pulse

(

void

)

[virtual]

Pulse the queue to wake up any waiting threads. Changes the queue state to PULSED; future enqueue/dequeue operations proceed as in ACTIVATED state.

Returns:

The queue's state before this call.

Implements ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::signal_dequeue_waiters

(

void

)

[protected, virtual]

Inform any threads waiting to dequeue that they can procede.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::signal_enqueue_waiters

(

void

)

[protected, virtual]

Inform any threads waiting to enqueue that they can procede.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::state

(

void

)

[virtual]

Returns the current state of the queue, which can be one of ACTIVATED, DEACTIVATED, or PULSED.

Reimplemented from ACE_Message_Queue_Base.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::wait_not_empty_cond	(	ACE_Guard< ACE_SYNCH_MUTEX_T > &	mon,
		ACE_Time_Value *	timeout
	)			[protected, virtual]

Wait for the queue to become non-empty.

template<ACE_SYNCH_DECL >

virtual int ACE_Message_Queue<>::wait_not_full_cond	(	ACE_Guard< ACE_SYNCH_MUTEX_T > &	mon,
		ACE_Time_Value *	timeout
	)			[protected, virtual]

Wait for the queue to become non-full.

---

Friends And Related Function Documentation

template<ACE_SYNCH_DECL >

friend class ACE_Message_Queue_Iterator< ACE_SYNCH_USE > [friend]

template<ACE_SYNCH_DECL >

friend class ACE_Message_Queue_Reverse_Iterator< ACE_SYNCH_USE > [friend]

---

Member Data Documentation

template<ACE_SYNCH_DECL >

ACE_Message_Queue<>::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_Message_Queue_Base.

Reimplemented in ACE_Dynamic_Message_Queue<>.

template<ACE_SYNCH_DECL >

size_t ACE_Message_Queue<>::cur_bytes_ [protected]

Current number of bytes in the queue.

template<ACE_SYNCH_DECL >

size_t ACE_Message_Queue<>::cur_count_ [protected]

Current number of messages in the queue.

template<ACE_SYNCH_DECL >

size_t ACE_Message_Queue<>::cur_length_ [protected]

Current length of messages in the queue.

template<ACE_SYNCH_DECL >

ACE_Message_Block* ACE_Message_Queue<>::head_ [protected]

Pointer to head of ACE_Message_Block list.

template<ACE_SYNCH_DECL >

size_t ACE_Message_Queue<>::high_water_mark_ [protected]

Greatest number of bytes before blocking.

template<ACE_SYNCH_DECL >

ACE_SYNCH_MUTEX_T ACE_Message_Queue<>::lock_ [protected]

Protect queue from concurrent access.

template<ACE_SYNCH_DECL >

size_t ACE_Message_Queue<>::low_water_mark_ [protected]

Lowest number before unblocking occurs.

template<ACE_SYNCH_DECL >

ACE_SYNCH_CONDITION_T ACE_Message_Queue<>::not_empty_cond_ [protected]

Used to make threads sleep until the queue is no longer empty.

template<ACE_SYNCH_DECL >

ACE_SYNCH_CONDITION_T ACE_Message_Queue<>::not_full_cond_ [protected]

Used to make threads sleep until the queue is no longer full.

template<ACE_SYNCH_DECL >

ACE_Notification_Strategy* ACE_Message_Queue<>::notification_strategy_ [protected]

The notification strategy used when a new message is enqueued.

template<ACE_SYNCH_DECL >

ACE_Message_Block* ACE_Message_Queue<>::tail_ [protected]

Pointer to tail of ACE_Message_Block list.

---

The documentation for this class was generated from the following file:

• Message_Queue_T.h

---
