ACE_Asynch_Connect Class Reference

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Connect:

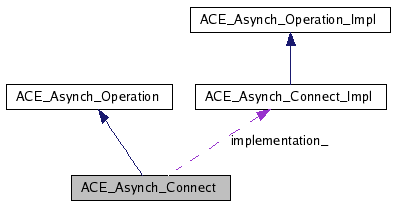

[legend]Collaboration diagram for ACE_Asynch_Connect:

[legend]List of all members.

Public Member Functions
	ACE_Asynch_Connect (void)
	A do nothing constructor.
virtual	~ACE_Asynch_Connect (void)
	Destructor.
int	open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int	connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Operation_Impl *	implementation (void) const
	Return the underlying implementation class.
Protected Attributes
ACE_Asynch_Connect_Impl *	implementation_
Classes
class	Result
	This is that class which will be passed back to the handler when the asynchronous connect completes. More...

---

Detailed Description

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class.

Once open is called, multiple asynchronous connect operationss can started using this class. A ACE_Asynch_Connect::Result will be passed back to the associated ACE_Handler when the asynchronous connect completes through the ACE_Handler::handle_connect() callback.

---

Constructor & Destructor Documentation

ACE_Asynch_Connect::ACE_Asynch_Connect

(

void

)

A do nothing constructor.

ACE_Asynch_Connect::~ACE_Asynch_Connect

(

void

)

[virtual]

Destructor.

---

Member Function Documentation

int ACE_Asynch_Connect::connect	(	ACE_HANDLE	connect_handle,
		const ACE_Addr &	remote_sap,
		const ACE_Addr &	local_sap,
		int	reuse_addr,
		const void *	act = 0,
		int	priority = 0,
		int	signal_number = ACE_SIGRTMIN
	)

This starts off an asynchronous Connect.

ACE_Asynch_Operation_Impl * ACE_Asynch_Connect::implementation

(

void

)

const [virtual]

Return the underlying implementation class.

Implements ACE_Asynch_Operation.

int ACE_Asynch_Connect::open	(	ACE_Handler &	handler,
		ACE_HANDLE	handle = ACE_INVALID_HANDLE,
		const void *	completion_key = 0,
		ACE_Proactor *	proactor = 0
	)

Initializes the factory with information which will be used with each asynchronous call.

Note:

• handle is ignored and should be ACE_INVALID_HANDLE.

Reimplemented from ACE_Asynch_Operation.

---

Member Data Documentation

ACE_Asynch_Connect_Impl* ACE_Asynch_Connect::implementation_ [protected]

Delegation/implementation class that all methods will be forwarded to.

---

The documentation for this class was generated from the following files:

• Asynch_IO.h
• Asynch_IO.cpp

---
