ACE_Async_Timer_Queue_Adapter< TQ > Class Template Reference

Adapts an ACE timer queue to be driven asynchronously using signals. More...

#include <Timer_Queue_Adapters.h>

Inheritance diagram for ACE_Async_Timer_Queue_Adapter< TQ >:

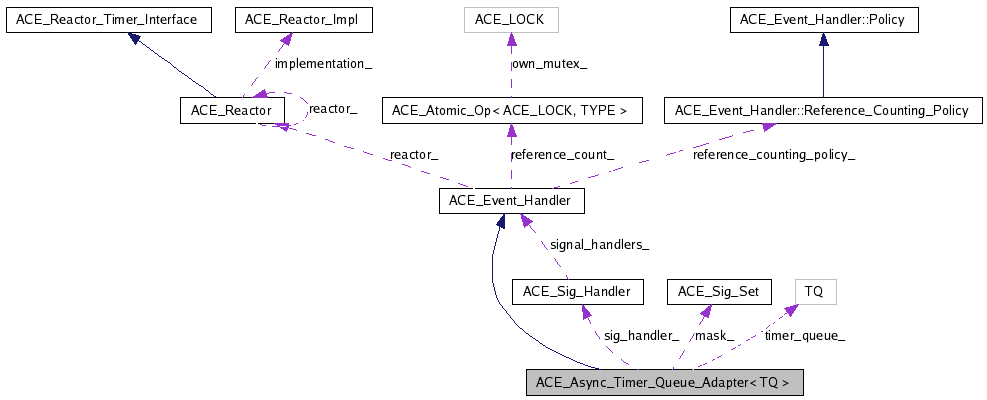

[legend]Collaboration diagram for ACE_Async_Timer_Queue_Adapter< TQ >:

[legend]List of all members.

Public Types
typedef TQ	TIMER_QUEUE
Public Member Functions
	ACE_Async_Timer_Queue_Adapter (ACE_Sig_Set *mask=0)
	Constructor.
long	schedule (ACE_Event_Handler *type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)
int	cancel (long timer_id, const void **act=0)
int	expire (void)
TQ &	timer_queue (void)
	Return a reference to the underlying timer queue.
Private Member Functions
virtual int	schedule_ualarm (void)
	Perform the logic to compute the new ualarm(2) setting.
virtual int	handle_signal (int signum, siginfo_t *, ucontext_t *)
	Called back by SIGALRM handler.
Private Attributes
ACE_Sig_Handler	sig_handler_
TQ	timer_queue_
ACE_Sig_Set	mask_
	Mask of signals to be blocked when we're servicing SIGALRM.

---

Detailed Description

template<class TQ>
class ACE_Async_Timer_Queue_Adapter< TQ >

Adapts an ACE timer queue to be driven asynchronously using signals.

This implementation uses the ACE_OS::ualarm call, to generate the SIGARLM signal that is caught by this class.

Note:

This adapter only works on platforms that support ualarm(). POSIX platforms generally do; Windows and some others do not.

Todo:

This adapter does not automatically reschedule repeating timers.

---

Member Typedef Documentation

template<class TQ>

typedef TQ ACE_Async_Timer_Queue_Adapter< TQ >::TIMER_QUEUE

---

Constructor & Destructor Documentation

template<class TQ>

ACE_Async_Timer_Queue_Adapter< TQ >::ACE_Async_Timer_Queue_Adapter

(

ACE_Sig_Set *

mask = 0

)

Constructor.

Register the SIGALRM handler. If mask == 0 then block all signals when SIGALRM is run. Otherwise, just block the signals indicated in mask.

---

Member Function Documentation

template<class TQ>

int ACE_Async_Timer_Queue_Adapter< TQ >::cancel	(	long	timer_id,
		const void **	act = 0
	)

Cancel the timer_id and pass back the act if an address is passed in.

template<class TQ>

int ACE_Async_Timer_Queue_Adapter< TQ >::expire

(

void

)

Dispatch all timers with expiry time at or before the current time. Returns the number of timers expired.

template<class TQ>

int ACE_Async_Timer_Queue_Adapter< TQ >::handle_signal	(	int	signum,
		siginfo_t *	,
		ucontext_t *
	)			[private, virtual]

Called back by SIGALRM handler.

Reimplemented from ACE_Event_Handler.

template<class TQ>

long ACE_Async_Timer_Queue_Adapter< TQ >::schedule	(	ACE_Event_Handler *	type,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval = ACE_Time_Value::zero
	)

This timer gets dispatched via a signal, rather than by a user calling expire(). Note that interval timers are not implemented yet.

template<class TQ>

int ACE_Async_Timer_Queue_Adapter< TQ >::schedule_ualarm

(

void

)

[private, virtual]

Perform the logic to compute the new ualarm(2) setting.

template<class TQ>

ACE_BEGIN_VERSIONED_NAMESPACE_DECL TQ & ACE_Async_Timer_Queue_Adapter< TQ >::timer_queue

(

void

)

Return a reference to the underlying timer queue.

---

Member Data Documentation

template<class TQ>

ACE_Sig_Set ACE_Async_Timer_Queue_Adapter< TQ >::mask_ [private]

Mask of signals to be blocked when we're servicing SIGALRM.

template<class TQ>

ACE_Sig_Handler ACE_Async_Timer_Queue_Adapter< TQ >::sig_handler_ [private]

Handler for the SIGALRM signal, so that we can access our state without requiring any global variables.

template<class TQ>

TQ ACE_Async_Timer_Queue_Adapter< TQ >::timer_queue_ [private]

Implementation of the timer queue (e.g., ACE_Timer_List, ACE_Timer_Heap, etc.).

---

The documentation for this class was generated from the following files:

• Timer_Queue_Adapters.h
• Timer_Queue_Adapters.cpp

---
