TAO_CEC_ConsumerAdmin Class Reference

ConsumerAdmin. More...

#include <CEC_ConsumerAdmin.h>

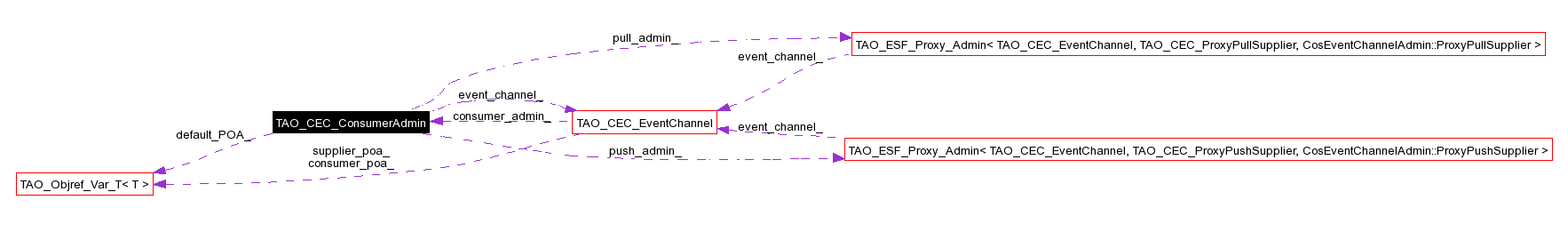

Collaboration diagram for TAO_CEC_ConsumerAdmin:

[legend]List of all members.

Public Member Functions
	TAO_CEC_ConsumerAdmin (TAO_CEC_EventChannel *event_channel)
virtual	~TAO_CEC_ConsumerAdmin (void)
	destructor...
void	for_each (TAO_ESF_Worker< TAO_CEC_ProxyPushSupplier > *worker)
	For each elements call <worker->work()>.
void	for_each (TAO_ESF_Worker< TAO_CEC_ProxyPullSupplier > *worker)
void	push (const CORBA::Any &event)
	Push the event to all the consumers.
virtual void	connected (TAO_CEC_ProxyPushSupplier *)
virtual void	reconnected (TAO_CEC_ProxyPushSupplier *)
virtual void	disconnected (TAO_CEC_ProxyPushSupplier *)
virtual void	connected (TAO_CEC_ProxyPullSupplier *)
virtual void	reconnected (TAO_CEC_ProxyPullSupplier *)
virtual void	disconnected (TAO_CEC_ProxyPullSupplier *)
virtual void	shutdown ()
virtual CosEventChannelAdmin::ProxyPushSupplier_ptr	obtain_push_supplier () throw (CORBA::SystemException)
virtual CosEventChannelAdmin::ProxyPullSupplier_ptr	obtain_pull_supplier () throw (CORBA::SystemException)
virtual PortableServer::POA_ptr	_default_POA ()
Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The Event Channel we belong to.
PortableServer::POA_var	default_POA_
	Store the default POA.
TAO_ESF_Proxy_Admin< TAO_CEC_EventChannel, TAO_CEC_ProxyPushSupplier, CosEventChannelAdmin::ProxyPushSupplier >	push_admin_
	Implement the push side of this class.
TAO_ESF_Proxy_Admin< TAO_CEC_EventChannel, TAO_CEC_ProxyPullSupplier, CosEventChannelAdmin::ProxyPullSupplier >	pull_admin_
	Implement the pull side of this class.

---

Detailed Description

ConsumerAdmin.

Implements the ConsumerAdmin interface, i.e. the factory for ProxyPushSupplier objects. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_EventChannel object; but it *does* assume ownership of the TAO_CEC_ProxyPushSupplier_Set object. = LOCKING No provisions for locking, access must be serialized externally. = TODO

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_CEC_ConsumerAdmin::TAO_CEC_ConsumerAdmin

(

TAO_CEC_EventChannel *

event_channel

)

constructor. If <supplier_set> is nil then it builds one using the <event_channel> argument. In any case it assumes ownership.

TAO_CEC_ConsumerAdmin::~TAO_CEC_ConsumerAdmin

(

void

)

[virtual]

destructor...

---

Member Function Documentation

PortableServer::POA_ptr TAO_CEC_ConsumerAdmin::_default_POA

(

)

[virtual]

void TAO_CEC_ConsumerAdmin::connected

(

TAO_CEC_ProxyPullSupplier *

)

[virtual]

void TAO_CEC_ConsumerAdmin::connected

(

TAO_CEC_ProxyPushSupplier *

)

[virtual]

Used to inform the EC that a Supplier has connected or disconnected from it.

void TAO_CEC_ConsumerAdmin::disconnected

(

TAO_CEC_ProxyPullSupplier *

)

[virtual]

void TAO_CEC_ConsumerAdmin::disconnected

(

TAO_CEC_ProxyPushSupplier *

)

[virtual]

void TAO_CEC_ConsumerAdmin::for_each

(

TAO_ESF_Worker< TAO_CEC_ProxyPullSupplier > *

worker

)

void TAO_CEC_ConsumerAdmin::for_each

(

TAO_ESF_Worker< TAO_CEC_ProxyPushSupplier > *

worker

)

For each elements call <worker->work()>.

CosEventChannelAdmin::ProxyPullSupplier_ptr TAO_CEC_ConsumerAdmin::obtain_pull_supplier

(

)

throw (CORBA::SystemException) [virtual]

CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_CEC_ConsumerAdmin::obtain_push_supplier

(

)

throw (CORBA::SystemException) [virtual]

void TAO_CEC_ConsumerAdmin::push

(

const CORBA::Any &

event

)

Push the event to all the consumers.

void TAO_CEC_ConsumerAdmin::reconnected

(

TAO_CEC_ProxyPullSupplier *

)

[virtual]

void TAO_CEC_ConsumerAdmin::reconnected

(

TAO_CEC_ProxyPushSupplier *

)

[virtual]

void TAO_CEC_ConsumerAdmin::shutdown

(

)

[virtual]

The event channel is shutting down, inform all the consumers of this

---

Member Data Documentation

PortableServer::POA_var TAO_CEC_ConsumerAdmin::default_POA_ [private]

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ConsumerAdmin::event_channel_ [private]

The Event Channel we belong to.

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel,TAO_CEC_ProxyPullSupplier,CosEventChannelAdmin::ProxyPullSupplier> TAO_CEC_ConsumerAdmin::pull_admin_ [private]

Implement the pull side of this class.

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel,TAO_CEC_ProxyPushSupplier,CosEventChannelAdmin::ProxyPushSupplier> TAO_CEC_ConsumerAdmin::push_admin_ [private]

Implement the push side of this class.

---

The documentation for this class was generated from the following files:

• CEC_ConsumerAdmin.h
• CEC_ConsumerAdmin.cpp

---
