CORBA::Object Class Reference

Implementation of a CORBA object reference. More...

#include <Object.h>

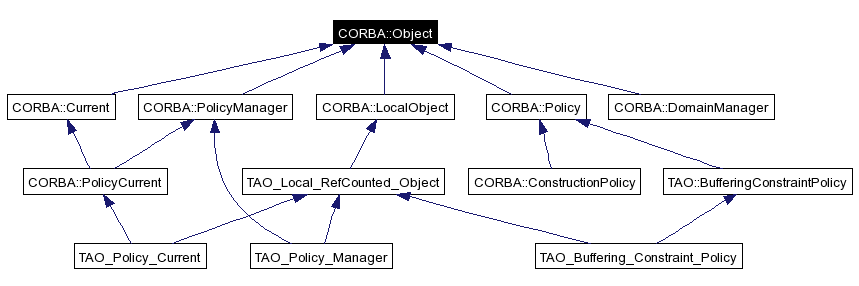

Inheritance diagram for CORBA::Object:

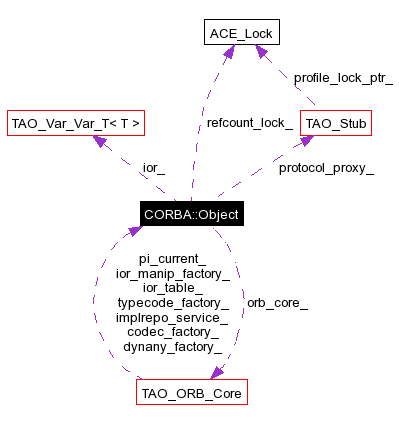

[legend]Collaboration diagram for CORBA::Object:

[legend]List of all members.

Spec defined methods
These methods are defined here since they are required by the CORBA spec in a form specified by the C++ mapping.
virtual CORBA::Boolean	_is_a (const char *logical_type_id)
	Determine if we are of the type specified by the "logical_type_id".
virtual const char *	_interface_repository_id (void) const
virtual CORBA::ULong	_hash (CORBA::ULong maximum)
virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj) throw ()
virtual CORBA::Boolean	_non_existent ()
	Determine if we are of the type specified by the "logical_type_id".
virtual CORBA::ImplementationDef_ptr	_get_implementation ()
virtual InterfaceDef_ptr	_get_interface ()
	Get info about the object from the Interface Repository.
virtual CORBA::Object_ptr	_get_component ()
	Get info about the object from the Interface Repository.
virtual char *	_repository_id ()
	Get the repository id.
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)
	Determine if we are of the type specified by the "logical_type_id".
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)
	Determine if we are of the type specified by the "logical_type_id".
virtual CORBA::Request_ptr	_request (const char *operation)
	DII operation to create a request.
CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)
	Determine if we are of the type specified by the "logical_type_id".
CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)
	Determine if we are of the type specified by the "logical_type_id".
CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)
	Determine if we are of the type specified by the "logical_type_id".
CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)
	Determine if we are of the type specified by the "logical_type_id".
CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)
	Determine if we are of the type specified by the "logical_type_id".
virtual CORBA::ORB_ptr	_get_orb ()
	Determine if we are of the type specified by the "logical_type_id".
static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)
	Increment the ref count.
static CORBA::Object_ptr	_nil (void)
	Return a NULL object.
static CORBA::Object_ptr	_narrow (CORBA::Object_ptr obj)
	No-op it is just here to simplify some templates.
Methods that are TAO specific.
These methods are defined here as helper functions to be used by other parts of TAO. Theoretically they shold all start with tao_. But we have deviated from that principle.
virtual TAO_Abstract_ServantBase *	_servant (void) const
virtual CORBA::Boolean	_is_collocated (void) const
virtual CORBA::Boolean	_is_local (void) const
	Is this a local object?
virtual TAO::ObjectKey *	_key ()
	Object (TAO_Stub *p, CORBA::Boolean collocated=0, TAO_Abstract_ServantBase *servant=0, TAO_ORB_Core *orb_core=0)
	Constructor.
	Object (IOP::IOR *ior, TAO_ORB_Core *orb_core=0)
virtual TAO_Stub *	_stubobj (void) const
	Get the underlying stub object.
virtual TAO_Stub *	_stubobj (void)
virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)
	Set the proxy broker.
virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)
	Allows us to forbid marshaling of local interfaces.
CORBA::Boolean	is_evaluated (void) const
	Accessor to the flag..
void	set_collocated_servant (TAO_Abstract_ServantBase *)
	Mutator for setting the servant in collocated cases.
TAO_ORB_Core *	orb_core (void) const
	Accessor for the ORB_Core..
IOP::IOR *	steal_ior (void)
	Accessors for the underlying IOP::IOR's.
const IOP::IOR &	ior (void) const
static CORBA::Boolean	marshal (Object_ptr obj, TAO_OutputCDR &strm)
static void	_tao_any_destructor (void *)
	Used in the implementation of CORBA::Any.
static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)
	Uninlined part of the now-inlined CORBA::is_nil().
static void	tao_object_initialize (Object *)
	Helper function for reading contents of an IOR.
Public Types
typedef Object_ptr	_ptr_type
typedef Object_var	_var_type
Public Member Functions
virtual	~Object (void)
	Destructor.
Reference Count Managment
These are the standard CORBA object reference count manipulations methods.
virtual void	_add_ref (void)
	Increment the reference count.
virtual void	_remove_ref (void)
	Decrement the reference count.
Protected Member Functions
	Object (int dummy=0)
	Initializing a local object.
TAO::Object_Proxy_Broker *	proxy_broker () const
Private Member Functions
	Object (const Object &)
Object &	operator= (const Object &)
Private Attributes
CORBA::Boolean	is_local_
	Specify whether this is a local object or not.
CORBA::Boolean	is_evaluated_
	Flag to indicate whether the IOP::IOR has been evaluated fully.
IOP::IOR_var	ior_
TAO_ORB_Core *	orb_core_
	Cached pointer of our ORB_Core.
TAO_Stub *	protocol_proxy_
CORBA::ULong	refcount_
	Number of outstanding references to this object.
ACE_Lock *	refcount_lock_
	Protect reference count manipulation from race conditions.

---

Detailed Description

Implementation of a CORBA object reference.

All CORBA objects, both unconstrained and locality-constrained, inherit from this class. The interface is defined in the CORBA specification and the C++ mapping.

---

Member Typedef Documentation

typedef Object_ptr CORBA::Object::_ptr_type

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

typedef Object_var CORBA::Object::_var_type

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL CORBA::Object::~Object

(

void

)

[virtual]

Destructor.

CORBA::Object::Object	(	TAO_Stub *	protocol_proxy,
		CORBA::Boolean	collocated = 0,
		TAO_Abstract_ServantBase *	servant = 0,
		TAO_ORB_Core *	orb_core = 0
	)

Constructor.

This constructor should not be called when the protocol proxy is null ie. when the object is a LocalObject. Assert that requirement.

CORBA::Object::Object	(	IOP::IOR *	ior,
		TAO_ORB_Core *	orb_core = 0
	)

Accessor for the cached servant reference held on the stub if this object is collocated

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE CORBA::Object::Object

(

int

dummy = 0

)

[protected]

Initializing a local object.

CORBA::Object::Object

(

const Object &

)

[private]

---

Member Function Documentation

void CORBA::Object::_add_ref

(

void

)

[virtual]

Increment the reference count.

Reimplemented in CORBA::LocalObject, and TAO_Local_RefCounted_Object.

void CORBA::Object::_create_request	(	CORBA::Context_ptr	ctx,
		const char *	operation,
		CORBA::NVList_ptr	arg_list,
		CORBA::NamedValue_ptr	result,
		CORBA::ExceptionList_ptr	exclist,
		CORBA::ContextList_ptr	ctxtlist,
		CORBA::Request_ptr &	request,
		CORBA::Flags	req_flags
	)			[virtual]

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

void CORBA::Object::_create_request	(	CORBA::Context_ptr	ctx,
		const char *	operation,
		CORBA::NVList_ptr	arg_list,
		CORBA::NamedValue_ptr	result,
		CORBA::Request_ptr &	request,
		CORBA::Flags	req_flags
	)			[virtual]

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

ACE_INLINE CORBA::Object_ptr CORBA::Object::_duplicate

(

CORBA::Object_ptr

obj

)

[static]

Increment the ref count.

CORBA::Policy_ptr CORBA::Object::_get_cached_policy

(

TAO_Cached_Policy_Type

type

)

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

CORBA::Object_ptr CORBA::Object::_get_component

(

)

[virtual]

Get info about the object from the Interface Repository.

Reimplemented in CORBA::LocalObject.

CORBA::ImplementationDef_ptr CORBA::Object::_get_implementation

(

)

[virtual]

This method is deprecated in the CORBA 2.2 spec, we just return 0 every time.

Reimplemented in CORBA::LocalObject.

CORBA::InterfaceDef_ptr CORBA::Object::_get_interface

(

)

[virtual]

Get info about the object from the Interface Repository.

Reimplemented in CORBA::LocalObject.

CORBA::ORB_ptr CORBA::Object::_get_orb

(

)

[virtual]

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

CORBA::Policy_ptr CORBA::Object::_get_policy

(

CORBA::PolicyType

type

)

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

CORBA::PolicyList * CORBA::Object::_get_policy_overrides

(

const CORBA::PolicyTypeSeq &

types

)

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

CORBA::ULong CORBA::Object::_hash

(

CORBA::ULong

maximum

)

[virtual]

Return a (potentially non-unique) hash value for this object. This method relies on the representation of the object reference's private state. Since that changes easily (when different ORB protocols are in use) there is no default implementation.

Reimplemented in CORBA::LocalObject.

const char * CORBA::Object::_interface_repository_id

(

void

)

const [virtual]

The repository ID for the most derived class, this is an implementation method and does no remote invocations!

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

CORBA::Boolean CORBA::Object::_is_a

(

const char *

logical_type_id

)

[virtual]

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

CORBA::Boolean CORBA::Object::_is_collocated

(

void

)

const [virtual]

Is this object collocated with the servant? Note this does not return this->is_collocated_ but will instead query the underlying stub for its collocation status

CORBA::Boolean CORBA::Object::_is_equivalent

(

CORBA::Object_ptr

other_obj

)

throw () [virtual]

Try to determine if this object is the same as other_obj. This method relies on the representation of the object reference's private state. Since that changes easily (when different ORB protocols are in use) there is no default implementation.

Reimplemented in CORBA::LocalObject.

CORBA::Boolean CORBA::Object::_is_local

(

void

)

const [virtual]

Is this a local object?

TAO::ObjectKey * CORBA::Object::_key

(

)

[virtual]

Return the object key as an out parameter. Caller should release return value when finished with it.

Reimplemented in CORBA::LocalObject.

ACE_INLINE CORBA::Object_ptr CORBA::Object::_narrow

(

CORBA::Object_ptr

obj

)

[static]

No-op it is just here to simplify some templates.

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

ACE_INLINE CORBA::Object_ptr CORBA::Object::_nil

(

void

)

[static]

Return a NULL object.

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

CORBA::Boolean CORBA::Object::_non_existent

(

)

[virtual]

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

void CORBA::Object::_proxy_broker

(

TAO::Object_Proxy_Broker *

proxy_broker

)

[virtual]

Set the proxy broker.

void CORBA::Object::_remove_ref

(

void

)

[virtual]

Decrement the reference count.

Reimplemented in CORBA::LocalObject, and TAO_Local_RefCounted_Object.

char * CORBA::Object::_repository_id

(

)

[virtual]

Get the repository id.

Reimplemented in CORBA::LocalObject.

CORBA::Request_ptr CORBA::Object::_request

(

const char *

operation

)

[virtual]

DII operation to create a request.

Reimplemented in CORBA::LocalObject.

TAO_Abstract_ServantBase * CORBA::Object::_servant

(

void

)

const [virtual]

Accessor for the cached servant reference held on the stub if this object is collocated

CORBA::Object_ptr CORBA::Object::_set_policy_overrides	(	const CORBA::PolicyList &	policies,
		CORBA::SetOverrideType	set_add
	)

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

TAO_Stub * CORBA::Object::_stubobj

(

void

)

[virtual]

Accessor for the cached servant reference held on the stub if this object is collocated

TAO_Stub * CORBA::Object::_stubobj

(

void

)

const [virtual]

Get the underlying stub object.

void CORBA::Object::_tao_any_destructor

(

void *

)

[static]

Used in the implementation of CORBA::Any.

Reimplemented in CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::Policy, CORBA::PolicyManager, and CORBA::PolicyCurrent.

CORBA::Boolean CORBA::Object::_validate_connection

(

CORBA::PolicyList_out

inconsistent_policies

)

Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

ACE_INLINE const IOP::IOR & CORBA::Object::ior

(

void

)

const

Accessor for the cached servant reference held on the stub if this object is collocated

ACE_INLINE CORBA::Boolean CORBA::Object::is_evaluated

(

void

)

const

Accessor to the flag..

CORBA::Boolean CORBA::Object::is_nil_i

(

CORBA::Object_ptr

obj

)

[static]

Uninlined part of the now-inlined CORBA::is_nil().

CORBA::Boolean CORBA::Object::marshal

(

TAO_OutputCDR &

cdr

)

[virtual]

Allows us to forbid marshaling of local interfaces.

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

CORBA::Boolean CORBA::Object::marshal	(	Object_ptr	obj,
		TAO_OutputCDR &	strm
	)			[static]

Marshalling operator used by the stub code. A long story why the stub code uses this, let us keep it short here.

Object& CORBA::Object::operator=

(

const Object &

)

[private]

ACE_INLINE TAO_ORB_Core * CORBA::Object::orb_core

(

void

)

const

Accessor for the ORB_Core..

TAO::Object_Proxy_Broker * CORBA::Object::proxy_broker

(

)

const [protected]

Convenience accessor for the object proxy broker of the underlying stub.

void CORBA::Object::set_collocated_servant

(

TAO_Abstract_ServantBase *

)

Mutator for setting the servant in collocated cases.

This is used by the Object_Adapter to set the servant for collocated cases and only when the object is initialized. The object initialization takes place when IOR's are lazily evaluated.

ACE_INLINE IOP::IOR * CORBA::Object::steal_ior

(

void

)

Accessors for the underlying IOP::IOR's.

The steal_ior () call basically relinquishes the ownership of the IOR. This is useful for cases when one wants to initialize a new CORBA Object

void CORBA::Object::tao_object_initialize

(

Object *

)

[static]

Helper function for reading contents of an IOR.

---

Member Data Documentation

IOP::IOR_var CORBA::Object::ior_ [private]

If the IOR hasnt been evaluated fully, then the contents of the IOR that we received should be in here!

CORBA::Boolean CORBA::Object::is_evaluated_ [private]

Flag to indicate whether the IOP::IOR has been evaluated fully.

CORBA::Boolean CORBA::Object::is_local_ [private]

Specify whether this is a local object or not.

TAO_ORB_Core* CORBA::Object::orb_core_ [private]

Cached pointer of our ORB_Core.

Be aware that this pointer can be zero or not. In fact there are two ways to get this pointer filled:

• If CORBA::Object is constructed through one of the constructors with a stub and null ORB_Core, we use the orb_core from the stub to fill this pointer
• If the other constructor, which uses IOP::IOR is used, a stub needs to be created first (i.e., the IOR needs to be evaluated first), in which case the ORB_Core would be null. The orb_core pointer then needs to be accessed from the stub and passed back as part of _get_orb().

TAO_Stub* CORBA::Object::protocol_proxy_ [private]

Pointer to the protocol-specific "object" containing important profiling information regarding this proxy. The protocol proxy is (potentially) shared among several Objects

CORBA::ULong CORBA::Object::refcount_ [private]

Number of outstanding references to this object.

Reimplemented in TAO_Local_RefCounted_Object.

ACE_Lock* CORBA::Object::refcount_lock_ [private]

Protect reference count manipulation from race conditions.

This lock is only instantiated for unconstrained objects. The reason for this is that locality-constrained objects that do not require reference counting (the default) may be instantiated in the critical path.

---

The documentation for this class was generated from the following files:

• Object.h
• Object.cpp
• Object.i

---
