CIAO::DomainDataManager Class Reference

Responsible for maintaining the Domain Information. More...

#include <DomainDataManager.h>

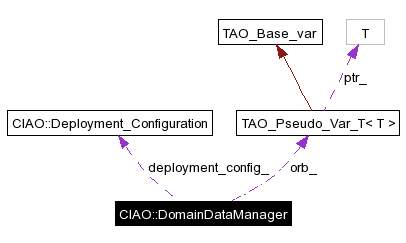

Collaboration diagram for CIAO::DomainDataManager:

[legend]List of all members.

Public Member Functions
int	update_domain (const ::CORBA::StringSeq &elements, const ::Deployment::Domain &domainSubset,::Deployment::DomainUpdateKind updateKind)
	This function is called by the other classes to update current domain data.
::Deployment::Domain *	get_initial_domain ()
	This function is called the Executor code to get the Original Domain data.
::Deployment::Domain *	get_current_domain ()
	This function is called the Executor code to get the Current Domain data.
	DomainDataManager (CORBA::ORB_ptr orb,::Deployment::TargetManager_ptr target)
Protected Member Functions
int	readin_domain_data ()
	It will read the initial Domain data from XML files.
int	call_all_node_managers ()
	This function calls all NM and gives them the sub-domain.
Protected Attributes
CORBA::ORB_var	orb_
	The ORB pointer.
CIAO::Deployment_Configuration	deployment_config_
	The Deployment Configuration.
::Deployment::Domain	initial_domain_
::Deployment::Domain	current_domain_
::Deployment::TargetManager_var	target_mgr_
	The Target Manager Context.

---

Detailed Description

Responsible for maintaining the Domain Information.

It maintains both the Current Domain Information as well as the Initial domain at full capacity.

---

Constructor & Destructor Documentation

CIAO::DomainDataManager::DomainDataManager	(	CORBA::ORB_ptr	orb,
		::Deployment::TargetManager_ptr	target
	)

Constructor

Parameters:

	orb	The orb pointer
	target	The Target Manager Object Reference

---

Member Function Documentation

int CIAO::DomainDataManager::call_all_node_managers

(

)

[protected]

This function calls all NM and gives them the sub-domain.

call_all_node_managers

Deployment::Domain * CIAO::DomainDataManager::get_current_domain

(

)

This function is called the Executor code to get the Current Domain data.

getCurrentDomain

Returns:

Domain* The Current Domain

Deployment::Domain * CIAO::DomainDataManager::get_initial_domain

(

)

This function is called the Executor code to get the Original Domain data.

getInitialDomain

Returns:

Domain* The Initial Domain

int CIAO::DomainDataManager::readin_domain_data

(

)

[protected]

It will read the initial Domain data from XML files.

readinDomainData

int CIAO::DomainDataManager::update_domain	(	const ::CORBA::StringSeq &	elements,
		const ::Deployment::Domain &	domainSubset,
		::Deployment::DomainUpdateKind	updateKind
	)

This function is called by the other classes to update current domain data.

updateDomain

Parameters:

	elements	The string sequence of elements being updated
	domainSubset	The subset of the actual Domain to be updated
	updateKind	Specifies the update type eg. add, delete, update

---

Member Data Documentation

::Deployment::Domain CIAO::DomainDataManager::current_domain_ [protected]

The Current Domain - contains resources at current capacity

CIAO::Deployment_Configuration CIAO::DomainDataManager::deployment_config_ [protected]

The Deployment Configuration.

::Deployment::Domain CIAO::DomainDataManager::initial_domain_ [protected]

The Initial Domain - contains resources at total capacity

CORBA::ORB_var CIAO::DomainDataManager::orb_ [protected]

The ORB pointer.

::Deployment::TargetManager_var CIAO::DomainDataManager::target_mgr_ [protected]

The Target Manager Context.

---

The documentation for this class was generated from the following files:

• DomainDataManager.h
• DomainDataManager.cpp

---
