ACE_SPIPE_Stream Class Reference

Defines the methods in the <ACE_SPIPE_Stream> abstraction. More...

#include <SPIPE_Stream.h>

Inheritance diagram for ACE_SPIPE_Stream:

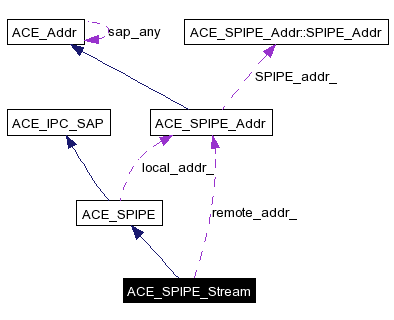

[legend]Collaboration diagram for ACE_SPIPE_Stream:


Public Types
typedef ACE_SPIPE_Addr	PEER_ADDR
Public Member Functions
	ACE_SPIPE_Stream (void)
	Default constructor.
int	get_remote_addr (ACE_SPIPE_Addr &remote_sap) const
	Obtain the address of whom we are connected with.
int	send_handle (ACE_HANDLE handle) const
	Send an open FD to another process.
int	recv_handle (ACE_HANDLE &handle) const
	Recv an open FD from another process.
int	recv_handle (strrecvfd &recvfd) const
	Recv an open FD from another process.
ssize_t	send_n (const void *buf, size_t len) const
	Send <len> bytes, keep trying until <len> are sent.
ssize_t	recv_n (void *buf, size_t len) const
	Recv <len> bytes, keep trying until <len> are received.
ssize_t	send (const void *buf, size_t len) const
	Send bytes via STREAM pipes using "band" mode.
ssize_t	recv (void *buf, size_t len) const
	Recv bytes via STREAM pipes using "band" mode.
ssize_t	send (const ACE_Str_Buf cntl, const ACE_Str_Buf data, int flags=0) const
	Send <cntl> and <data> via STREAM pipes.
ssize_t	recv (ACE_Str_Buf cntl, ACE_Str_Buf data, int *flags) const
	Recv <cntl> and <data> via STREAM pipes.
ssize_t	send (const ACE_Str_Buf cntl, const ACE_Str_Buf data, int band, int flags) const
	Send bytes via STREAM pipes using "band" mode.
ssize_t	recv (ACE_Str_Buf cntl, ACE_Str_Buf data, int band, int flags) const
	Recv bytes via STREAM pipes using "band" mode.
ssize_t	send (const iovec iov[], int len) const
	Send iovecs via the OS "gather-write" operation.
ssize_t	recv (iovec iov[], int len) const
	Recv iovecs via the OS "scatter-read" operation.
ssize_t	send (size_t len,...) const
ssize_t	recv (size_t len,...) const
ssize_t	send (const void buf, size_t len, ACE_OVERLAPPED overlapped) const
	Send <len> bytes via Win32 <WriteFile> using overlapped I/O.
ssize_t	recv (void buf, size_t len, ACE_OVERLAPPED overlapped) const
	Recv <len> bytes via Win32 <ReadFile> using overlapped I/O.
ssize_t	sendv (const iovec iov[], int len) const
	Send an <iovec> of size <len> to the stream.
ssize_t	sendv_n (const iovec iov[], int len) const
ssize_t	recvv_n (iovec iov[], int len) const
	Receive an <iovec> of size <len> to the stream.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Attributes
ACE_SPIPE_Addr	remote_addr_
Friends
class	ACE_SPIPE_Acceptor
class	ACE_SPIPE_Connector

Detailed Description

Defines the methods in the <ACE_SPIPE_Stream> abstraction.

<buf> is the buffer to write from or receive into. <len> is the number of bytes to transfer.

The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK.

The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

The number of bytes transferred is returned.
On error, -1 is returned, errno is set to appropriate error.
On EOF, 0 is returned, errno is irrelevant.

Methods with <iovec> parameter are I/O vector variants of the I/O operations.

The <send> and <revc> operations use "message" semantics rather than "bytestream" semantics.

Member Typedef Documentation

typedef ACE_SPIPE_Addr ACE_SPIPE_Stream::PEER_ADDR

Constructor & Destructor Documentation

ACE_SPIPE_Stream::ACE_SPIPE_Stream ( void )

Default constructor.

Member Function Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_SPIPE_Stream::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_SPIPE.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_SPIPE_Stream::get_remote_addr ( ACE_SPIPE_Addr & remote_sap ) const

Obtain the address of whom we are connected with.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv	(	void *	buf,
		size_t	len,
		ACE_OVERLAPPED *	overlapped
	)			const

Recv <len> bytes via Win32 <ReadFile> using overlapped I/O.

ssize_t ACE_SPIPE_Stream::recv	(	size_t	len,
			...
	)			const

This is an interface to readv, that doesn't use the struct iovec explicitly. The ... can be passed as an arbitrary number of (char *ptr, int len) tuples. However, the count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv	(	iovec	iov[],
		int	len
	)			const

Recv iovecs via the OS "scatter-read" operation.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv	(	ACE_Str_Buf *	cntl,
		ACE_Str_Buf *	data,
		int *	band,
		int *	flags
	)			const

Recv bytes via STREAM pipes using "band" mode.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv	(	ACE_Str_Buf *	cntl,
		ACE_Str_Buf *	data,
		int *	flags
	)			const

Recv <cntl> and <data> via STREAM pipes.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv	(	void *	buf,
		size_t	len
	)			const

Recv bytes via STREAM pipes using "band" mode.

ACE_INLINE int ACE_SPIPE_Stream::recv_handle ( strrecvfd & recvfd ) const

Recv an open FD from another process.

ACE_INLINE int ACE_SPIPE_Stream::recv_handle ( ACE_HANDLE & handle ) const

Recv an open FD from another process.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv_n	(	void *	buf,
		size_t	len
	)			const

Recv <len> bytes, keep trying until <len> are received.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recvv_n	(	iovec	iov[],
		int	len
	)			const

Receive an <iovec> of size <len> to the stream.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send	(	const void *	buf,
		size_t	len,
		ACE_OVERLAPPED *	overlapped
	)			const

Send <len> bytes via Win32 <WriteFile> using overlapped I/O.

ssize_t ACE_SPIPE_Stream::send	(	size_t	len,
			...
	)			const

Send N char *ptrs and int lengths. Note that the char *'s precede the ints (basically, an varargs version of writev). The count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

ACE_INLINE ssize_t ACE_SPIPE_Stream::send	(	const iovec	iov[],
		int	len
	)			const

Send iovecs via the OS "gather-write" operation.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send	(	const ACE_Str_Buf *	cntl,
		const ACE_Str_Buf *	data,
		int	band,
		int	flags
	)			const

Send bytes via STREAM pipes using "band" mode.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send	(	const ACE_Str_Buf *	cntl,
		const ACE_Str_Buf *	data,
		int	flags = `0`
	)			const

Send <cntl> and <data> via STREAM pipes.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send	(	const void *	buf,
		size_t	len
	)			const

Send bytes via STREAM pipes using "band" mode.

ACE_INLINE int ACE_SPIPE_Stream::send_handle ( ACE_HANDLE handle ) const

Send an open FD to another process.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send_n	(	const void *	buf,
		size_t	len
	)			const

Send <len> bytes, keep trying until <len> are sent.

ACE_INLINE ssize_t ACE_SPIPE_Stream::sendv	(	const iovec	iov[],
		int	len
	)			const

Send an <iovec> of size <len> to the stream.

ACE_INLINE ssize_t ACE_SPIPE_Stream::sendv_n	(	const iovec	iov[],
		int	len
	)			const

Send an <iovec> of size <len> to the stream. Will block until all bytes are sent or an error occurs.

Friends And Related Function Documentation

friend class ACE_SPIPE_Acceptor [friend]

friend class ACE_SPIPE_Connector [friend]

Member Data Documentation

ACE_SPIPE_Stream::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SPIPE.

ACE_SPIPE_Addr ACE_SPIPE_Stream::remote_addr_ [private]

The documentation for this class was generated from the following files:
