ACE_POSIX_Asynch_Result Class Reference

#include <POSIX_Asynch_IO.h>

Inheritance diagram for ACE_POSIX_Asynch_Result:

Inheritance graph
[legend]

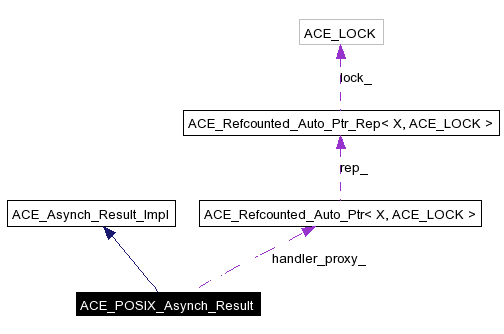

Collaboration diagram for ACE_POSIX_Asynch_Result:

Collaboration graph
[legend]
List of all members.

Public Member Functions

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation.
const void * act (void) const
 ACT associated with the operation.
int success (void) const
 Did the operation succeed?
const void * completion_key (void) const
u_long error (void) const
 Error value if the operation fail.
ACE_HANDLE event (void) const
 This returns ACE_INVALID_HANDLE on POSIX4 platforms.
u_long offset (void) const
u_long offset_high (void) const
int priority (void) const
 Priority of the operation.
int signal_number (void) const
int post_completion (ACE_Proactor_Impl *proactor)
 Post <this> to the Proactor.
virtual ~ACE_POSIX_Asynch_Result (void)
 Destructor.
void set_error (u_long errcode)
 Simulate error value to use in the post_completion ().
void set_bytes_transferred (size_t nbytes)
 Simulate value to use in the post_completion ().

Protected Member Functions

 ACE_POSIX_Asynch_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, ACE_HANDLE event, u_long offset, u_long offset_high, int priority, int signal_number)
 Constructor. <Event> is not used on POSIX.

Protected Attributes

ACE_Handler::Proxy_Ptr handler_proxy_
 Handler that will be called back.
const void * act_
size_t bytes_transferred_
 Bytes transferred by this operation.
int success_
 Success indicator.
const void * completion_key_
 ACT associated with handle.
u_long error_
 Error if operation failed.

Detailed Description

This class provides concrete implementation for ACE_Asynch_Result for POSIX4 platforms. This class extends aiocb and makes it more useful.


Constructor & Destructor Documentation

ACE_POSIX_Asynch_Result::~ACE_POSIX_Asynch_Result ( void   )  [virtual]

Destructor.

ACE_POSIX_Asynch_Result::ACE_POSIX_Asynch_Result ( const ACE_Handler::Proxy_Ptr handler_proxy,
const void *  act,
ACE_HANDLE  event,
u_long  offset,
u_long  offset_high,
int  priority,
int  signal_number
) [protected]

Constructor. <Event> is not used on POSIX.


Member Function Documentation

const void * ACE_POSIX_Asynch_Result::act ( void   )  const [virtual]

ACT associated with the operation.

Implements ACE_Asynch_Result_Impl.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL size_t ACE_POSIX_Asynch_Result::bytes_transferred ( void   )  const [virtual]

Number of bytes transferred by the operation.

Implements ACE_Asynch_Result_Impl.

const void * ACE_POSIX_Asynch_Result::completion_key ( void   )  const [virtual]

This is the ACT associated with the handle on which the Asynch_Operation takes place.

@ This is not implemented for POSIX4 platforms.

Implements ACE_Asynch_Result_Impl.

u_long ACE_POSIX_Asynch_Result::error ( void   )  const [virtual]

Error value if the operation fail.

Implements ACE_Asynch_Result_Impl.

ACE_HANDLE ACE_POSIX_Asynch_Result::event ( void   )  const [virtual]

This returns ACE_INVALID_HANDLE on POSIX4 platforms.

Implements ACE_Asynch_Result_Impl.

u_long ACE_POSIX_Asynch_Result::offset ( void   )  const [virtual]

This really make sense only when doing file I/O.

@ On POSIX4-Unix, offset_high should be supported using aiocb64.

Implements ACE_Asynch_Result_Impl.

u_long ACE_POSIX_Asynch_Result::offset_high ( void   )  const [virtual]

Implements ACE_Asynch_Result_Impl.

int ACE_POSIX_Asynch_Result::post_completion ( ACE_Proactor_Impl proactor  )  [virtual]

Post <this> to the Proactor.

Implements ACE_Asynch_Result_Impl.

int ACE_POSIX_Asynch_Result::priority ( void   )  const [virtual]

Priority of the operation.

Implements ACE_Asynch_Result_Impl.

void ACE_POSIX_Asynch_Result::set_bytes_transferred ( size_t  nbytes  )

Simulate value to use in the post_completion ().

void ACE_POSIX_Asynch_Result::set_error ( u_long  errcode  )

Simulate error value to use in the post_completion ().

int ACE_POSIX_Asynch_Result::signal_number ( void   )  const [virtual]

POSIX4 realtime signal number to be used for the operation. <signal_number> ranges from SIGRTMIN to SIGRTMAX. By default, SIGRTMIN is used to issue <aio_> calls.

Implements ACE_Asynch_Result_Impl.

int ACE_POSIX_Asynch_Result::success ( void   )  const [virtual]

Did the operation succeed?

Implements ACE_Asynch_Result_Impl.


Member Data Documentation

const void* ACE_POSIX_Asynch_Result::act_ [protected]

ACT for this operation. We could use <aiocb::aio_sigevent.sigev_value.sival_ptr> for this. But it doesnot provide the constness, so this may be better.

size_t ACE_POSIX_Asynch_Result::bytes_transferred_ [protected]

Bytes transferred by this operation.

const void* ACE_POSIX_Asynch_Result::completion_key_ [protected]

ACT associated with handle.

u_long ACE_POSIX_Asynch_Result::error_ [protected]

Error if operation failed.

ACE_Handler::Proxy_Ptr ACE_POSIX_Asynch_Result::handler_proxy_ [protected]

Handler that will be called back.

int ACE_POSIX_Asynch_Result::success_ [protected]

Success indicator.


The documentation for this class was generated from the following files:
Generated on Wed Apr 19 03:06:58 2006 for ACE by  doxygen 1.4.6-4
