ACE_Buffered_Svc_Handler<, > Class Template Reference

Defines the interface for a service that exchanges data with its connected peer and supports buffering. More...

#include <Svc_Handler.h>

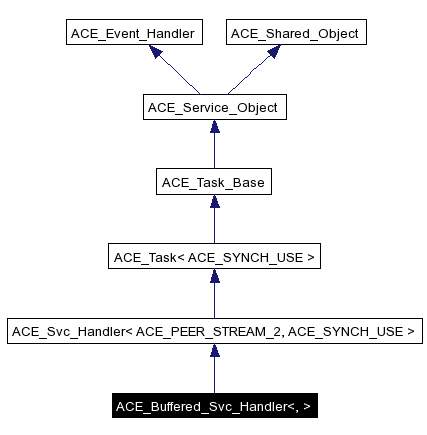

Inheritance diagram for ACE_Buffered_Svc_Handler<, >:

Inheritance graph
[legend]

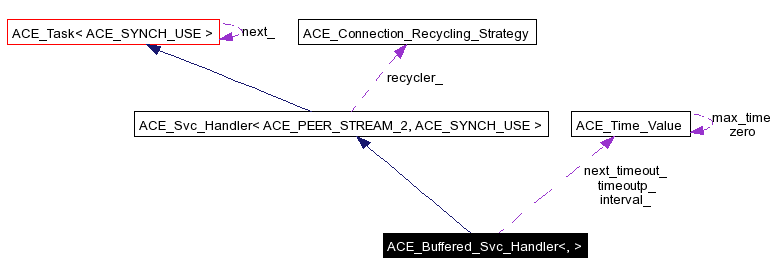

Collaboration diagram for ACE_Buffered_Svc_Handler<, >:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Buffered_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance(), size_t max_buffer_size=0, ACE_Time_Value *relative_timeout=0)
virtual ~ACE_Buffered_Svc_Handler (void)
 Destructor, which calls <flush>.
virtual int put (ACE_Message_Block *message_block, ACE_Time_Value *timeout=0)
virtual int flush (void)
virtual int handle_timeout (const ACE_Time_Value &time, const void *)
void dump (void) const
 Dump the state of an object.

Protected Member Functions

virtual int flush_i (void)

Protected Attributes

size_t maximum_buffer_size_
size_t current_buffer_size_
 Current size in bytes of the <Message_Queue> contents.
ACE_Time_Value next_timeout_
 Timeout value used to control when the buffer is flushed.
ACE_Time_Value interval_
 Interval of the timeout.
ACE_Time_Valuetimeoutp_
 Timeout pointer.

Detailed Description

template<ACE_PEER_STREAM_1, ACE_SYNCH_DECL>
class ACE_Buffered_Svc_Handler<, >

Defines the interface for a service that exchanges data with its connected peer and supports buffering.

The buffering feature makes it possible to queue up <ACE_Message_Blocks> in an ACE_Message_Queue until (1) the queue is "full" or (2) a period of time elapses, at which point the queue is "flushed" via <sendv_n> to the peer.


Constructor & Destructor Documentation

template<PR_ST_1 , ACE_SYNCH_DECL >
ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler ( ACE_Thread_Manager thr_mgr = 0,
ACE_Message_Queue< ACE_SYNCH_USE > *  mq = 0,
ACE_Reactor reactor = ACE_Reactor::instance(),
size_t  max_buffer_size = 0,
ACE_Time_Value relative_timeout = 0
)

Constructor initializes the <thr_mgr> and <mq> by passing them down to the <ACE_Task> base class. The <reactor> is passed to the ACE_Event_Handler. The <max_buffer_size> and <relative_timeout> are used to determine at what point to flush the <mq>. By default, there's no buffering at all. The <relative_timeout> value is interpreted to be in a unit that's relative to the current time returned by <ACE_OS::gettimeofday>.

template<PR_ST_1 , ACE_SYNCH_DECL >
ACE_Buffered_Svc_Handler<, >::~ACE_Buffered_Svc_Handler ( void   )  [virtual]

Destructor, which calls <flush>.


Member Function Documentation

template<PR_ST_1 , ACE_SYNCH_DECL >
void ACE_Buffered_Svc_Handler<, >::dump ( void   )  const

Dump the state of an object.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::flush ( void   )  [virtual]

Flush the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the <PEER_STREAM>.

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::flush_i ( void   )  [protected, virtual]

Implement the flush operation on the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the <PEER_STREAM>. Assumes that the caller holds the lock.

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::handle_timeout ( const ACE_Time_Value time,
const void *
) [virtual]

This method is not currently implemented -- this is where the integration with the <Reactor> would occur.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::put ( ACE_Message_Block message_block,
ACE_Time_Value timeout = 0
) [virtual]

Insert the ACE_Message_Block chain rooted at <message_block> into the ACE_Message_Queue with the designated <timeout>. The <flush> method will be called if this <put> causes the number of bytes to exceed the maximum buffer size or if the timeout period has elapsed.

Reimplemented from ACE_Task_Base.


Member Data Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
size_t ACE_Buffered_Svc_Handler<, >::current_buffer_size_ [protected]

Current size in bytes of the <Message_Queue> contents.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value ACE_Buffered_Svc_Handler<, >::interval_ [protected]

Interval of the timeout.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
size_t ACE_Buffered_Svc_Handler<, >::maximum_buffer_size_ [protected]

Maximum size the <Message_Queue> can be before we have to flush the buffer.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value ACE_Buffered_Svc_Handler<, >::next_timeout_ [protected]

Timeout value used to control when the buffer is flushed.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value* ACE_Buffered_Svc_Handler<, >::timeoutp_ [protected]

Timeout pointer.


The documentation for this class was generated from the following files:
