ACE_Asynch_Connect Class Reference

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Connect:

Inheritance graph

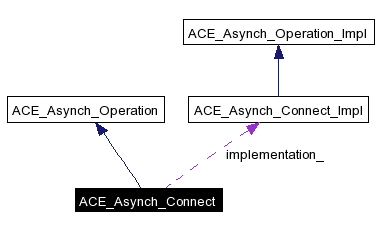

Collaboration diagram for ACE_Asynch_Connect:

Collaboration graph
List of all members.

Public Member Functions

 ACE_Asynch_Connect (void)
 A do nothing constructor.
virtual ~ACE_Asynch_Connect (void)
int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Operation_Implimplementation (void) const
 Return the underlying implementation class.

Protected Attributes



class  Result
 This is that class which will be passed back to the handler when the asynchronous connect completes. More...

Detailed Description

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class.

Once open is called, multiple asynchronous connect operationss can started using this class. A ACE_Asynch_Connect::Result will be passed back to the associated ACE_Handler when the asynchronous connect completes through the ACE_Handler::handle_connect() callback.

Constructor & Destructor Documentation

ACE_Asynch_Connect::ACE_Asynch_Connect ( void   )

A do nothing constructor.

ACE_Asynch_Connect::~ACE_Asynch_Connect ( void   )  [virtual]


Member Function Documentation

int ACE_Asynch_Connect::connect ( ACE_HANDLE  connect_handle,
const ACE_Addr remote_sap,
const ACE_Addr local_sap,
int  reuse_addr,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN

This starts off an asynchronous Connect.

ACE_Asynch_Operation_Impl * ACE_Asynch_Connect::implementation ( void   )  const [virtual]

Return the underlying implementation class.

Implements ACE_Asynch_Operation.

int ACE_Asynch_Connect::open ( ACE_Handler handler,
const void *  completion_key = 0,
ACE_Proactor proactor = 0

Initializes the factory with information which will be used with each asynchronous call.

  • handle is ignored and should be ACE_INVALID_HANDLE.

Reimplemented from ACE_Asynch_Operation.

Member Data Documentation

ACE_Asynch_Connect_Impl* ACE_Asynch_Connect::implementation_ [protected]

Delegation/implementation class that all methods will be forwarded to.

The documentation for this class was generated from the following files:
Generated on Wed Apr 19 03:05:40 2006 for ACE by  doxygen 1.4.6-4
