TAO_Notify_Event_Map_T< PROXY, ACE_LOCK > Class Template Reference

Template class for storing the collection of Proxys. More...

#include <Event_Map_T.h>

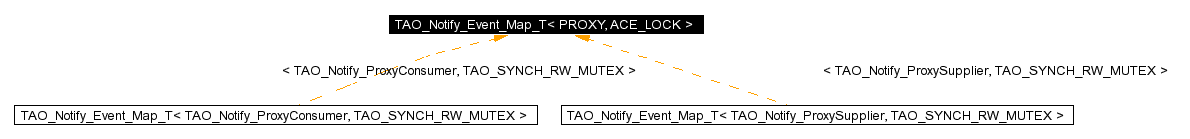

Inheritance diagram for TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >:

[legend]Collaboration diagram for TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >:

[legend]List of all members.

Public Types
typedef TAO_Notify_Event_Map_Entry_T< PROXY >	ENTRY
Public Methods
	TAO_Notify_Event_Map_T (void)
	Constuctor.
	~TAO_Notify_Event_Map_T ()
	Destructor.
void	init (ACE_ENV_SINGLE_ARG_DECL)
	Init.
void	connect (PROXY *proxy ACE_ENV_ARG_DECL)
	Connect a PROXY.
void	disconnect (PROXY *proxy ACE_ENV_ARG_DECL)
	Disconnect a PROXY.
int	insert (PROXY *proxy, const TAO_Notify_EventType &event_type ACE_ENV_ARG_DECL)
int	remove (PROXY *proxy, const TAO_Notify_EventType &event_type ACE_ENV_ARG_DECL)
ENTRY *	find (const TAO_Notify_EventType &event_type ACE_ENV_ARG_DECL)
ACE_TYPENAME ENTRY::COLLECTION *	broadcast_collection (void)
	Find the default broadcast list.
ACE_TYPENAME ENTRY::COLLECTION *	updates_collection (void)
	Find the update list. This is all the PROXYS connected to this Map.
void	release (ENTRY *entry)
	Release the usage count on this entry.
const TAO_Notify_EventTypeSeq &	event_types (void)
	Access all the event types available.
int	proxy_count (void)
	Access number of proxys connected in all.
Protected Attributes
ACE_Hash_Map_Manager< TAO_Notify_EventType, ENTRY *, ACE_SYNCH_NULL_MUTEX >	map_
	The Map that stores eventtype to entry mapping.
ACE_LOCK	lock_
	The lock to use.
int	proxy_count_
	Count of proxys connected.
ENTRY	broadcast_entry_
	The default broadcast list for EventType::special.
ENTRY	updates_entry_
	Update Entry - Keeps a list of all PROXY's connected to this Map. Updates are send to this list.
TAO_Notify_EventTypeSeq	event_types_
	The event types that are available in this map.

---

Detailed Description

template<class PROXY, class ACE_LOCK>
class TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >

Template class for storing the collection of Proxys.

---

Member Typedef Documentation

template<class PROXY, class ACE_LOCK> typedef TAO_Notify_Event_Map_Entry_T<PROXY> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::ENTRY

---

Constructor & Destructor Documentation

template<class PROXY, class ACE_LOCK> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::TAO_Notify_Event_Map_T (  void    )

Constuctor.

template<class PROXY, class ACE_LOCK> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::~TAO_Notify_Event_Map_T (    )

Destructor.

---

Member Function Documentation

template<class PROXY, class ACE_LOCK> ACE_TYPENAME ENTRY::COLLECTION* TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::broadcast_collection (  void    )

Find the default broadcast list.

template<class PROXY, class ACE_LOCK> void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::connect (  PROXY *proxy    ACE_ENV_ARG_DECL )

Connect a PROXY.

template<class PROXY, class ACE_LOCK> void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::disconnect (  PROXY *proxy    ACE_ENV_ARG_DECL )

Disconnect a PROXY.

template<class PROXY, class ACE_LOCK> const TAO_Notify_EventTypeSeq& TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::event_types (  void    )

Access all the event types available.

template<class PROXY, class ACE_LOCK> ENTRY* TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::find (  const TAO_Notify_EventType &event_type    ACE_ENV_ARG_DECL )

Find the collection mapped to the <event_type> The usage_count on the entry returned is incremented.

template<class PROXY, class ACE_LOCK> void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::init (  ACE_ENV_SINGLE_ARG_DECL    )

Init.

template<class PROXY, class ACE_LOCK> int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::insert (  PROXY *    proxy, const TAO_Notify_EventType &event_type    ACE_ENV_ARG_DECL )

Associate PROXY and event_type. Returns 1 if <event_type> is being seem for the 1st time otherwise returns 0. Returns -1 on error.

template<class PROXY, class ACE_LOCK> int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::proxy_count (  void    )

Access number of proxys connected in all.

template<class PROXY, class ACE_LOCK> void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::release (  ENTRY *    entry )

Release the usage count on this entry.

template<class PROXY, class ACE_LOCK> int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::remove (  PROXY *    proxy, const TAO_Notify_EventType &event_type    ACE_ENV_ARG_DECL )

Remove association of PROXY and event_type. Returns 1 if <event_type> is being seem for the last time otherwise returns 0. Returns -1 on error.

template<class PROXY, class ACE_LOCK> ACE_TYPENAME ENTRY::COLLECTION* TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::updates_collection (  void    )

Find the update list. This is all the PROXYS connected to this Map.

---

Member Data Documentation

template<class PROXY, class ACE_LOCK> ENTRY TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::broadcast_entry_ [protected]

The default broadcast list for EventType::special.

template<class PROXY, class ACE_LOCK> TAO_Notify_EventTypeSeq TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::event_types_ [protected]

The event types that are available in this map.

template<class PROXY, class ACE_LOCK> ACE_LOCK TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::lock_ [protected]

The lock to use.

template<class PROXY, class ACE_LOCK> ACE_Hash_Map_Manager<TAO_Notify_EventType, ENTRY*, ACE_SYNCH_NULL_MUTEX> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::map_ [protected]

The Map that stores eventtype to entry mapping.

template<class PROXY, class ACE_LOCK> int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::proxy_count_ [protected]

Count of proxys connected.

template<class PROXY, class ACE_LOCK> ENTRY TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::updates_entry_ [protected]

Update Entry - Keeps a list of all PROXY's connected to this Map. Updates are send to this list.

---

The documentation for this class was generated from the following files:

• Event_Map_T.h
• Event_Map_T.cpp

---
