TAO_Notify_Event Class Reference

Base class abstraction for Events flowing through the EventChannel. More...

#include <Event.h>

Inheritance diagram for TAO_Notify_Event:

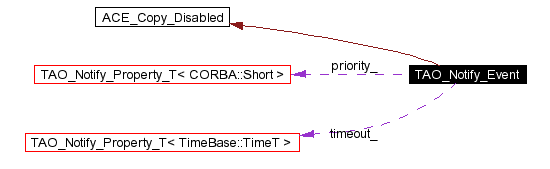

[legend]Collaboration diagram for TAO_Notify_Event:

[legend]List of all members.

Public Methods
	TAO_Notify_Event (void)
	Constuctor.
virtual	~TAO_Notify_Event ()
	Destructor.
virtual TAO_Notify_Event *	copy (ACE_ENV_SINGLE_ARG_DECL) const=0
	Copy the event.
virtual const TAO_Notify_EventType &	type (void) const=0
	Get the event type.
virtual CORBA::Boolean	do_match (CosNotifyFilter::Filter_ptr filter ACE_ENV_ARG_DECL) const=0
	Returns true if the filter matches.
virtual void	convert (CosNotification::StructuredEvent &notification) const=0
	Convert to CosNotification::Structured type.
virtual void	push (TAO_Notify_Consumer *consumer ACE_ENV_ARG_DECL) const=0
	Push event to consumer.
virtual void	push (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const=0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const=0
	Push event to the Event_Forwarder interface.
virtual void	push (Event_Forwarder::ProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const=0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::ProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const=0
	Push event to the Event_Forwarder interface.
const TAO_Notify_Property_Short &	priority (void) const
const TAO_Notify_Property_Time &	timeout (void) const
	Timeout.
Static Public Methods
void	translate (const CORBA::Any &any, CosNotification::StructuredEvent &notification)
	Translate Any to Structured.
void	translate (const CosNotification::StructuredEvent &notification, CORBA::Any &any)
	Translate Structured to Any.
Protected Attributes
TAO_Notify_Property_Short	priority_
	= QoS properties Priority.
TAO_Notify_Property_Time	timeout_
	Timeout.

---

Detailed Description

Base class abstraction for Events flowing through the EventChannel.

---

Constructor & Destructor Documentation

TAO_Notify_Event::TAO_Notify_Event (  void    )

Constuctor.

TAO_Notify_Event::~TAO_Notify_Event (    )  [virtual]

Destructor.

---

Member Function Documentation

virtual void TAO_Notify_Event::convert (  CosNotification::StructuredEvent &    notification )  const [pure virtual]

Convert to CosNotification::Structured type.

virtual TAO_Notify_Event* TAO_Notify_Event::copy (  ACE_ENV_SINGLE_ARG_DECL    )  const [pure virtual]

Copy the event.

virtual CORBA::Boolean TAO_Notify_Event::do_match (  CosNotifyFilter::Filter_ptr filter    ACE_ENV_ARG_DECL )  const [pure virtual]

Returns true if the filter matches.

const TAO_Notify_Property_Short& TAO_Notify_Event::priority (  void    )  const

= Accessors Priority

virtual void TAO_Notify_Event::push (  Event_Forwarder::ProxyPushSupplier_ptr forwarder    ACE_ENV_ARG_DECL )  const [pure virtual]

Push event to the Event_Forwarder interface.

virtual void TAO_Notify_Event::push (  Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder    ACE_ENV_ARG_DECL )  const [pure virtual]

Push event to the Event_Forwarder interface.

virtual void TAO_Notify_Event::push (  TAO_Notify_Consumer *consumer    ACE_ENV_ARG_DECL )  const [pure virtual]

Push event to consumer.

virtual void TAO_Notify_Event::push_no_filtering (  Event_Forwarder::ProxyPushSupplier_ptr forwarder    ACE_ENV_ARG_DECL )  const [pure virtual]

Push event to the Event_Forwarder interface.

virtual void TAO_Notify_Event::push_no_filtering (  Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder    ACE_ENV_ARG_DECL )  const [pure virtual]

Push event to the Event_Forwarder interface.

const TAO_Notify_Property_Time& TAO_Notify_Event::timeout (  void    )  const

Timeout.

void TAO_Notify_Event::translate (  const CosNotification::StructuredEvent &    notification, CORBA::Any &    any )  [static]

Translate Structured to Any.

void TAO_Notify_Event::translate (  const CORBA::Any &    any, CosNotification::StructuredEvent &    notification )  [static]

Translate Any to Structured.

virtual const TAO_Notify_EventType& TAO_Notify_Event::type (  void    )  const [pure virtual]

Get the event type.

---

Member Data Documentation

TAO_Notify_Property_Short TAO_Notify_Event::priority_ [protected]

= QoS properties Priority.

TAO_Notify_Property_Time TAO_Notify_Event::timeout_ [protected]

Timeout.

---

The documentation for this class was generated from the following files:

• Event.h
• Event.cpp

---
