TAO_Resource_Factory Class Reference

Factory which manufacturers resources for use by the ORB Core. More...

#include <Resource_Factory.h>

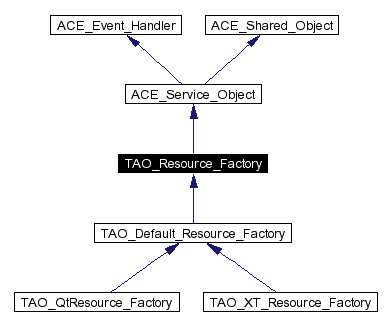

Inheritance diagram for TAO_Resource_Factory:

Inheritance graph
[legend]

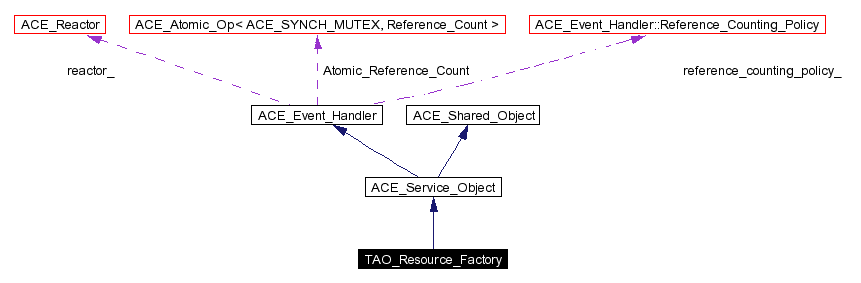

Collaboration diagram for TAO_Resource_Factory:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Purging_Strategy { LRU, LFU, FIFO, NOOP }
enum  Resource_Usage { TAO_EAGER, TAO_LAZY }

Public Methods

 TAO_Resource_Factory (void)
virtual ~TAO_Resource_Factory (void)
virtual int use_locked_data_blocks (void) const
virtual ACE_Reactorget_reactor (void)
 Return an <ACE_Reactor> to be utilized.

virtual void reclaim_reactor (ACE_Reactor *reactor)
 Reclaim reactor resources (e.g. deallocate, etc).

virtual TAO_Acceptor_Registryget_acceptor_registry (void)
 Return a reference to the acceptor registry.

virtual TAO_Connector_Registryget_connector_registry (void)
 Return an Connector to be utilized.

virtual ACE_Allocatorinput_cdr_dblock_allocator (void)
 Access the input CDR allocators.

virtual ACE_Allocatorinput_cdr_buffer_allocator (void)
virtual ACE_Allocatorinput_cdr_msgblock_allocator (void)
virtual int input_cdr_allocator_type_locked (void)
virtual ACE_Allocatoroutput_cdr_dblock_allocator (void)
 Access the output CDR allocators.

virtual ACE_Allocatoroutput_cdr_buffer_allocator (void)
virtual ACE_Allocatoroutput_cdr_msgblock_allocator (void)
virtual TAO_ProtocolFactorySetget_protocol_factories (void)
virtual TAO_Codeset_Managerget_codeset_manager (void)
virtual int init_protocol_factories (void)
virtual int cache_maximum (void) const
 This denotes the maximum number of connections that can be cached.

virtual int purge_percentage (void) const
virtual int max_muxed_connections (void) const
virtual int get_parser_names (char **&names, int &number_of_names)
virtual ACE_Lockcreate_cached_connection_lock (void)
virtual int locked_transport_cache (void)
virtual ACE_Lockcreate_object_key_table_lock (void)
 Creates a lock needed for the table that stores the object keys.

virtual ACE_Lockcreate_corba_object_lock (void)
 Creates the lock for the CORBA Object.

virtual TAO_Flushing_Strategycreate_flushing_strategy (void)=0
virtual TAO_Connection_Purging_Strategycreate_purging_strategy (void)=0
 Creates the connection purging strategy.

virtual TAO_LF_Strategycreate_lf_strategy (void)=0
virtual void disable_factory (void)=0
virtual TAO_Resource_Factory::Resource_Usage resource_usage_strategy (void) const=0
 Return the resource usage strategy.


Protected Methods

virtual int load_default_protocols (void)

Detailed Description

Factory which manufacturers resources for use by the ORB Core.

This class is a factory/repository for critical ORB Core resources.


Member Enumeration Documentation

enum TAO_Resource_Factory::Purging_Strategy


Enumeration values:
LRU
LFU
FIFO
NOOP

enum TAO_Resource_Factory::Resource_Usage


Enumeration values:
TAO_EAGER  Use resources in an eager fashion.
TAO_LAZY  Use resources in a lazy manner.


Constructor & Destructor Documentation

TAO_Resource_Factory::TAO_Resource_Factory void


TAO_Resource_Factory::~TAO_Resource_Factory void    [virtual]



Member Function Documentation

int TAO_Resource_Factory::cache_maximum void    const [virtual]


This denotes the maximum number of connections that can be cached.

Reimplemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_cached_connection_lock void    [virtual]


Creates the lock for the lock needed in the Cache Map

Deprecated:
:

Reimplemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_corba_object_lock void    [virtual]


Creates the lock for the CORBA Object.

Reimplemented in TAO_Default_Resource_Factory.

virtual TAO_Flushing_Strategy* TAO_Resource_Factory::create_flushing_strategy void    [pure virtual]


Creates the flushing strategy. The new instance is owned by the caller.

Implemented in TAO_Default_Resource_Factory.

virtual TAO_LF_Strategy* TAO_Resource_Factory::create_lf_strategy void    [pure virtual]


Creates the leader followers strategy. The new instance is owned by the caller.

Implemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_object_key_table_lock void    [virtual]


Creates a lock needed for the table that stores the object keys.

Reimplemented in TAO_Default_Resource_Factory.

virtual TAO_Connection_Purging_Strategy* TAO_Resource_Factory::create_purging_strategy void    [pure virtual]


Creates the connection purging strategy.

Implemented in TAO_Default_Resource_Factory.

virtual void TAO_Resource_Factory::disable_factory void    [pure virtual]


Disables the factory. When a new factory is installed and used, this function should be called on the previously used (default) factory. This should result in proper error reporting if the user attempts to set options on an unused factory.

Implemented in TAO_Default_Resource_Factory.

TAO_Acceptor_Registry * TAO_Resource_Factory::get_acceptor_registry void    [virtual]


Return a reference to the acceptor registry.

Reimplemented in TAO_Default_Resource_Factory.

TAO_Codeset_Manager * TAO_Resource_Factory::get_codeset_manager void    [virtual]


Reimplemented in TAO_Default_Resource_Factory.

TAO_Connector_Registry * TAO_Resource_Factory::get_connector_registry void    [virtual]


Return an Connector to be utilized.

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::get_parser_names char **&    names,
int &    number_of_names
[virtual]


Reimplemented in TAO_Default_Resource_Factory.

TAO_ProtocolFactorySet * TAO_Resource_Factory::get_protocol_factories void    [virtual]


The protocol factory list is implemented in this class since a) it will be a global resource and b) it is initialized at start up and then not altered. Returns a container holding the list of loaded protocols.

Reimplemented in TAO_Default_Resource_Factory.

ACE_Reactor * TAO_Resource_Factory::get_reactor void    [virtual]


Return an <ACE_Reactor> to be utilized.

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::init_protocol_factories void    [virtual]


this method will loop through the protocol list and using the protocol name field this method will retrieve a pointer to the associated protocol factory from the service configurator. It is assumed that only one thread will call this method at ORB initialization. NON-THREAD-SAFE

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::input_cdr_allocator_type_locked void    [virtual]


Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_buffer_allocator void    [virtual]


Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_dblock_allocator void    [virtual]


Access the input CDR allocators.

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_msgblock_allocator void    [virtual]


Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::load_default_protocols void    [protected, virtual]


Loads the default protocols. This method is used so that the advanced_resource.cpp can call the one in default_resource.cpp without calling unnecessary functions.

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::locked_transport_cache void    [virtual]


Should the transport cache have a lock or not? Return 1 if the transport cache needs to be locked else return 0

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::max_muxed_connections void    const [virtual]


Return the number of muxed connections that are allowed for a remote endpoint

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_buffer_allocator void    [virtual]


Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_dblock_allocator void    [virtual]


Access the output CDR allocators.

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_msgblock_allocator void    [virtual]


Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::purge_percentage void    const [virtual]


This denotes the amount of entries to remove from the connection cache.

Reimplemented in TAO_Default_Resource_Factory.

void TAO_Resource_Factory::reclaim_reactor ACE_Reactor   reactor [virtual]


Reclaim reactor resources (e.g. deallocate, etc).

Reimplemented in TAO_Default_Resource_Factory.

virtual TAO_Resource_Factory::Resource_Usage TAO_Resource_Factory::resource_usage_strategy void    const [pure virtual]


Return the resource usage strategy.

Implemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::use_locked_data_blocks void    const [virtual]


@ Backwards compatibility, return 1 if the ORB core should use Locked_Data_Blocks

Reimplemented in TAO_Default_Resource_Factory.


The documentation for this class was generated from the following files:
