TAO_Protocol_Factory Class Reference

#include <Protocol_Factory.h>

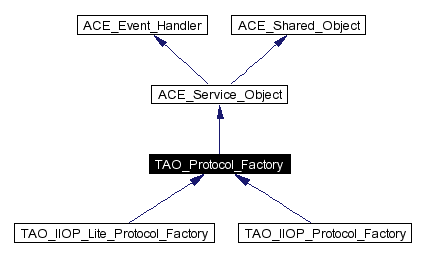

Inheritance diagram for TAO_Protocol_Factory:

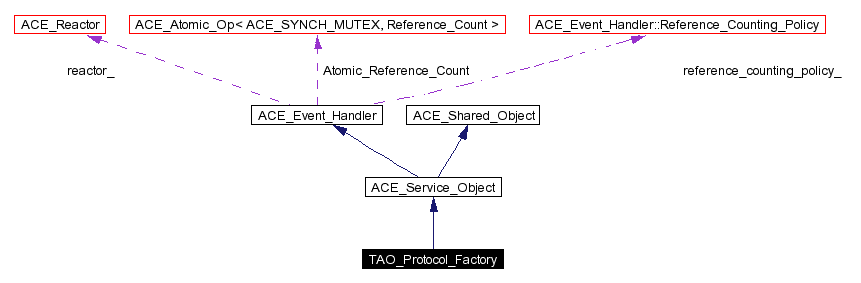

[legend]Collaboration diagram for TAO_Protocol_Factory:

[legend]List of all members.

Public Methods
	TAO_Protocol_Factory (CORBA::ULong tag)
virtual	~TAO_Protocol_Factory (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
	Initialization hook.
CORBA::ULong	tag (void) const
virtual int	match_prefix (const ACE_CString &prefix)
	Verify prefix is a match.
virtual const char *	prefix (void) const
	Returns the prefix used by the protocol.
virtual char	options_delimiter (void) const
virtual TAO_Acceptor *	make_acceptor (void)
	Create an acceptor.
virtual TAO_Connector *	make_connector (void)
	Create a connector.
virtual int	requires_explicit_endpoint (void) const=0
Private Attributes
CORBA::ULong	tag_
	IOP protocol tag.

---

Constructor & Destructor Documentation

TAO_Protocol_Factory::TAO_Protocol_Factory (  CORBA::ULong    tag )

TAO_Protocol_Factory::~TAO_Protocol_Factory (  void    )  [virtual]

---

Member Function Documentation

int TAO_Protocol_Factory::init (  int    argc, ACE_TCHAR *    argv[] )  [virtual]

Initialization hook. Reimplemented from ACE_Shared_Object. Reimplemented in TAO_IIOP_Protocol_Factory, and TAO_IIOP_Lite_Protocol_Factory.

TAO_Acceptor * TAO_Protocol_Factory::make_acceptor (  void    )  [virtual]

Create an acceptor. Reimplemented in TAO_IIOP_Protocol_Factory, and TAO_IIOP_Lite_Protocol_Factory.

TAO_Connector * TAO_Protocol_Factory::make_connector (  void    )  [virtual]

Create a connector. Reimplemented in TAO_IIOP_Protocol_Factory, and TAO_IIOP_Lite_Protocol_Factory.

int TAO_Protocol_Factory::match_prefix (  const ACE_CString &    prefix )  [virtual]

Verify prefix is a match. Reimplemented in TAO_IIOP_Protocol_Factory, and TAO_IIOP_Lite_Protocol_Factory.

char TAO_Protocol_Factory::options_delimiter (  void    )  const [virtual]

Return the character used to mark where an endpoint ends and where its options begin. Reimplemented in TAO_IIOP_Protocol_Factory, and TAO_IIOP_Lite_Protocol_Factory.

const char * TAO_Protocol_Factory::prefix (  void    )  const [virtual]

Returns the prefix used by the protocol. Reimplemented in TAO_IIOP_Protocol_Factory, and TAO_IIOP_Lite_Protocol_Factory.

virtual int TAO_Protocol_Factory::requires_explicit_endpoint (  void    )  const [pure virtual]

Some protocols should not create a default endpoint unless the user specifies a -ORBEndpoint option. For example, local IPC (aka UNIX domain sockets) is unable to remove the rendesvouz point if the server crashes. For those protocols it is better to create the endpoint only if the user requests one. Implemented in TAO_IIOP_Protocol_Factory, and TAO_IIOP_Lite_Protocol_Factory.

CORBA::ULong TAO_Protocol_Factory::tag (  void    )  const

The protocol tag, each concrete class will have a specific tag value.

---

Member Data Documentation

CORBA::ULong TAO_Protocol_Factory::tag_ [private]

IOP protocol tag.

---

The documentation for this class was generated from the following files:

• Protocol_Factory.h
• Protocol_Factory.cpp

---
