TAO_Muxed_TMS Class Reference

#include <Muxed_TMS.h>

Inheritance diagram for TAO_Muxed_TMS:

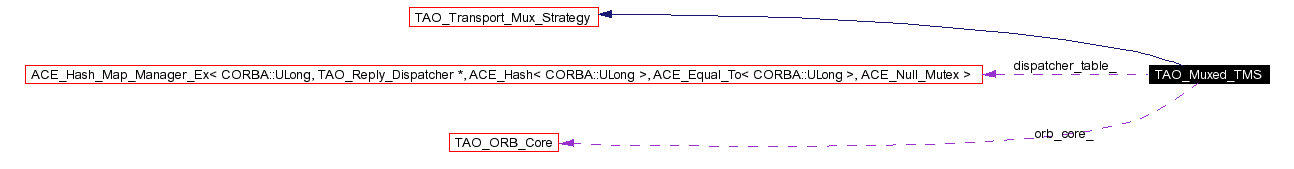

[legend]Collaboration diagram for TAO_Muxed_TMS:

[legend]List of all members.

Public Methods
	TAO_Muxed_TMS (TAO_Transport *transport)
	Constructor.
virtual	~TAO_Muxed_TMS (void)
	Destructor.
virtual CORBA::ULong	request_id (void)
virtual int	bind_dispatcher (CORBA::ULong request_id, TAO_Reply_Dispatcher *rh)
virtual int	unbind_dispatcher (CORBA::ULong request_id)
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual bool	idle_after_send (void)
virtual bool	idle_after_reply (void)
virtual void	connection_closed (void)
Protected Types
typedef ACE_Hash_Map_Manager_Ex< CORBA::ULong, TAO_Reply_Dispatcher *, ACE_Hash< CORBA::ULong >, ACE_Equal_To< CORBA::ULong >, ACE_Null_Mutex >	REQUEST_DISPATCHER_TABLE
Protected Methods
int	clear_cache (void)
Protected Attributes
CORBA::ULong	request_id_generator_
TAO_ORB_Core *	orb_core_
REQUEST_DISPATCHER_TABLE	dispatcher_table_
	Table of <Request ID, Reply Dispatcher> pairs.

---

Detailed Description

Using this strategy a single connection can have multiple outstanding requests. @ Can the performance of the demuxer be made more predictable, for example, using the request id as an active demux key? NOTE: check the OMG resolutions about bidirectional connections, it is possible that the request ids can only assume even or odd values.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<CORBA::ULong, TAO_Reply_Dispatcher *, ACE_Hash <CORBA::ULong>, ACE_Equal_To <CORBA::ULong>, ACE_Null_Mutex> TAO_Muxed_TMS::REQUEST_DISPATCHER_TABLE [protected]

---

Constructor & Destructor Documentation

TAO_Muxed_TMS::TAO_Muxed_TMS (  TAO_Transport *    transport )

Constructor.

TAO_Muxed_TMS::~TAO_Muxed_TMS (  void    )  [virtual]

Destructor.

---

Member Function Documentation

int TAO_Muxed_TMS::bind_dispatcher (  CORBA::ULong    request_id, TAO_Reply_Dispatcher *    rh )  [virtual]

Bind the dispatcher with the request id. Commonalities in the derived class implementations is kept here. Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::clear_cache (  void    )  [protected]

void TAO_Muxed_TMS::connection_closed (  void    )  [virtual]

The transport object has closed the connection, inform all Reply dispatchers and waiting strategies. Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::dispatch_reply (  TAO_Pluggable_Reply_Params &    params )  [virtual]

Dispatch the reply for <request_id>, cleanup any resources allocated for that request. Implements TAO_Transport_Mux_Strategy.

bool TAO_Muxed_TMS::idle_after_reply (  void    )  [virtual]

Request is sent and the reply is received. Idle the transport now. The return value indicates whether idling was successful or not. Implements TAO_Transport_Mux_Strategy.

bool TAO_Muxed_TMS::idle_after_send (  void    )  [virtual]

Request has been just sent, but the reply is not received. Idle the transport now. The return value indicates whether idling was successful or not. Implements TAO_Transport_Mux_Strategy.

CORBA::ULong TAO_Muxed_TMS::request_id (  void    )  [virtual]

Generate and return an unique request id for the current invocation. Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::unbind_dispatcher (  CORBA::ULong    request_id )  [virtual]

Unbind the dispatcher, the client is no longer waiting for the request, for example, because the request timedout. The strategy can (must) cleanup any resources associated with the request. A later reply for that request should be ignored. Implements TAO_Transport_Mux_Strategy.

---

Member Data Documentation

REQUEST_DISPATCHER_TABLE TAO_Muxed_TMS::dispatcher_table_ [protected]

Table of <Request ID, Reply Dispatcher> pairs.

TAO_ORB_Core* TAO_Muxed_TMS::orb_core_ [protected]

Keep track of the orb core pointer. We need to this to create the Reply Dispatchers.

CORBA::ULong TAO_Muxed_TMS::request_id_generator_ [protected]

Used to generate a different request_id on each call to request_id().

---

The documentation for this class was generated from the following files:

• Muxed_TMS.h
• Muxed_TMS.cpp

---
