TAO_IIOP_Transport Class Reference

Specialization of the base TAO_Transport class to handle the IIOP protocol. More...

#include <IIOP_Transport.h>

Inheritance diagram for TAO_IIOP_Transport:

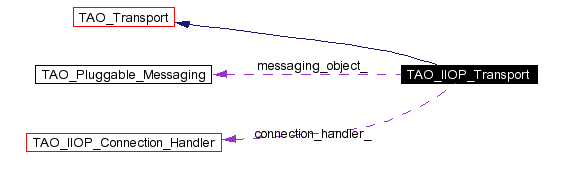

[legend]Collaboration diagram for TAO_IIOP_Transport:

[legend]List of all members.

Overridden Template Methods
Please check the documentation in "tao/Transport.h" for more details.
void	update_protocol_properties (int send_buffer_size, int recv_buffer_size, int no_delay, int enable_network_priority)
	Bridge method to call a similar method on the connection handler.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, int message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, int message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
	Bridge method to call a similar method on the connection handler.
virtual int	generate_request_header (TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
	Bridge method to call a similar method on the connection handler.
virtual int	messaging_init (CORBA::Octet major, CORBA::Octet minor)
	Bridge method to call a similar method on the connection handler.
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
	Bridge method to call a similar method on the connection handler.
virtual TAO_Connection_Handler *	connection_handler_i (void)
	Bridge method to call a similar method on the connection handler.
virtual ACE_Event_Handler *	event_handler_i (void)
	Bridge method to call a similar method on the connection handler.
virtual TAO_Pluggable_Messaging *	messaging_object (void)
	Access the underlying messaging object.
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
	Bridge method to call a similar method on the connection handler.
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
	Bridge method to call a similar method on the connection handler.
virtual int	send_message_shared (TAO_Stub *stub, int message_semantics, const ACE_Message_Block *message_block, ACE_Time_Value *max_wait_time)
	Bridge method to call a similar method on the connection handler.
Public Methods
	TAO_IIOP_Transport (TAO_IIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core, CORBA::Boolean flag)
	Constructor.
Protected Methods
virtual	~TAO_IIOP_Transport (void)
	Destructor.
Private Methods
void	set_bidir_context_info (TAO_Operation_Details &opdetails)
	Set the Bidirectional context info in the service context list.
int	get_listen_point (IIOP::ListenPointList &listen_point_list, TAO_Acceptor *acceptor)
Private Attributes
TAO_IIOP_Connection_Handler *	connection_handler_
TAO_Pluggable_Messaging *	messaging_object_
	Our messaging object.

---

Detailed Description

Specialization of the base TAO_Transport class to handle the IIOP protocol.

Specialization of the base TAO_Transport class to handle the IIOP protocol.

---

Constructor & Destructor Documentation

TAO_IIOP_Transport::TAO_IIOP_Transport (  TAO_IIOP_Connection_Handler *    handler, TAO_ORB_Core *    orb_core, CORBA::Boolean    flag )

Constructor.

TAO_IIOP_Transport::~TAO_IIOP_Transport (  void    )  [protected, virtual]

Destructor. Protected destructor to enforce proper memory management through the reference counting mechanism.

---

Member Function Documentation

TAO_Connection_Handler * TAO_IIOP_Transport::connection_handler_i (  void    )  [virtual]

Bridge method to call a similar method on the connection handler. Implements TAO_Transport.

ACE_Event_Handler * TAO_IIOP_Transport::event_handler_i (  void    )  [protected, virtual]

Bridge method to call a similar method on the connection handler. Implements TAO_Transport.

int TAO_IIOP_Transport::generate_request_header (  TAO_Operation_Details &    opdetails, TAO_Target_Specification &    spec, TAO_OutputCDR &    msg )  [virtual]

Bridge method to call a similar method on the connection handler. Reimplemented from TAO_Transport.

int TAO_IIOP_Transport::get_listen_point (  IIOP::ListenPointList &    listen_point_list, TAO_Acceptor *    acceptor )  [private]

Add the listen points in <acceptor> to the <listen_point_list> if this connection is in the same interface as that of the endpoints in the <acceptor>

int TAO_IIOP_Transport::messaging_init (  CORBA::Octet    major, CORBA::Octet    minor )  [virtual]

Bridge method to call a similar method on the connection handler. Implements TAO_Transport.

TAO_Pluggable_Messaging * TAO_IIOP_Transport::messaging_object (  void    )  [protected, virtual]

Access the underlying messaging object. Implements TAO_Transport.

ssize_t TAO_IIOP_Transport::recv (  char *    buf, size_t    len, const ACE_Time_Value *    s = 0 )  [protected, virtual]

Bridge method to call a similar method on the connection handler. Implements TAO_Transport.

ssize_t TAO_IIOP_Transport::send (  iovec *    iov, int    iovcnt, size_t &    bytes_transferred, const ACE_Time_Value *    timeout = 0 )  [protected, virtual]

Bridge method to call a similar method on the connection handler. Implements TAO_Transport.

int TAO_IIOP_Transport::send_message (  TAO_OutputCDR &    stream, TAO_Stub *    stub = 0, int    message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *    max_time_wait = 0 )  [virtual]

Bridge method to call a similar method on the connection handler. Implements TAO_Transport.

int TAO_IIOP_Transport::send_message_shared (  TAO_Stub *    stub, int    message_semantics, const ACE_Message_Block *    message_block, ACE_Time_Value *    max_wait_time )  [protected, virtual]

Bridge method to call a similar method on the connection handler. Reimplemented from TAO_Transport.

int TAO_IIOP_Transport::send_request (  TAO_Stub *    stub, TAO_ORB_Core *    orb_core, TAO_OutputCDR &    stream, int    message_semantics, ACE_Time_Value *    max_wait_time )  [virtual]

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Implements TAO_Transport.

void TAO_IIOP_Transport::set_bidir_context_info (  TAO_Operation_Details &    opdetails )  [private]

Set the Bidirectional context info in the service context list.

int TAO_IIOP_Transport::tear_listen_point_list (  TAO_InputCDR &    cdr )  [virtual]

Bridge method to call a similar method on the connection handler. Reimplemented from TAO_Transport.

void TAO_IIOP_Transport::update_protocol_properties (  int    send_buffer_size, int    recv_buffer_size, int    no_delay, int    enable_network_priority )

Bridge method to call a similar method on the connection handler.

---

Member Data Documentation

TAO_IIOP_Connection_Handler* TAO_IIOP_Transport::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

TAO_Pluggable_Messaging* TAO_IIOP_Transport::messaging_object_ [private]

Our messaging object.

---

The documentation for this class was generated from the following files:

• IIOP_Transport.h
• IIOP_Transport.cpp

---
