TAO_IIOP_Connector Class Reference

IIOP-specific Connector bridge for pluggable protocols. More...

#include <IIOP_Connector.h>

Inheritance diagram for TAO_IIOP_Connector:

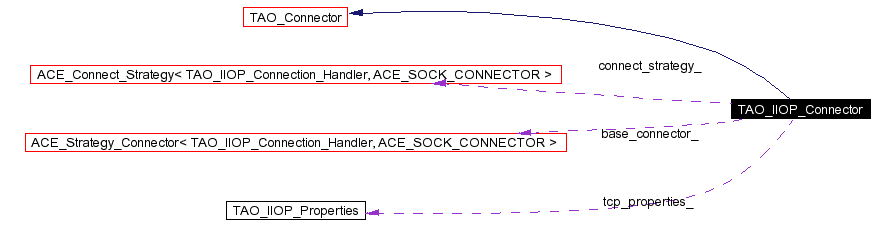

[legend]Collaboration diagram for TAO_IIOP_Connector:

[legend]List of all members.

Public Types
typedef TAO_Connect_Concurrency_Strategy< TAO_IIOP_Connection_Handler >	TAO_IIOP_CONNECT_CONCURRENCY_STRATEGY
typedef TAO_Connect_Creation_Strategy< TAO_IIOP_Connection_Handler >	TAO_IIOP_CONNECT_CREATION_STRATEGY
typedef ACE_Connect_Strategy< TAO_IIOP_Connection_Handler, ACE_SOCK_CONNECTOR >	TAO_IIOP_CONNECT_STRATEGY
typedef ACE_Strategy_Connector< TAO_IIOP_Connection_Handler, ACE_SOCK_CONNECTOR >	TAO_IIOP_BASE_CONNECTOR
Public Methods
	TAO_IIOP_Connector (CORBA::Boolean flag=0)
	Constructor.
	~TAO_IIOP_Connector (void)
	Destructor.
int	open (TAO_ORB_Core *orb_core)
	Initialize object and register with reactor.
int	close (void)
	Shutdown Connector bridge and concrete Connector.
TAO_Profile *	create_profile (TAO_InputCDR &cdr)
virtual int	check_prefix (const char *endpoint)
virtual char	object_key_delimiter (void) const
	Return the object key delimiter to use or expect.
Protected Methods
int	set_validate_endpoint (TAO_Endpoint *ep)
TAO_Transport *	make_connection (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface &desc, ACE_Time_Value *timeout=0)
virtual TAO_Profile *	make_profile (ACE_ENV_SINGLE_ARG_DECL)
int	init_tcp_properties (void)
Protected Attributes
TAO_IIOP_Properties	tcp_properties_
CORBA::Boolean	lite_flag_
	Do we need to use a GIOP_Lite for sending messages?
Private Methods
TAO_IIOP_Endpoint *	remote_endpoint (TAO_Endpoint *ep)
	Return the remote endpoint, a helper function.
Private Attributes
TAO_IIOP_CONNECT_STRATEGY	connect_strategy_
	Our connect strategy.
TAO_IIOP_BASE_CONNECTOR	base_connector_
	The connector initiating connection requests for IIOP.

---

Detailed Description

IIOP-specific Connector bridge for pluggable protocols.

Concrete instance of the TAO_Connector class. Responsible for establishing a connection with a server and is called from the Connector_Registory.

---

Member Typedef Documentation

typedef ACE_Strategy_Connector<TAO_IIOP_Connection_Handler, ACE_SOCK_CONNECTOR> TAO_IIOP_Connector::TAO_IIOP_BASE_CONNECTOR

typedef TAO_Connect_Concurrency_Strategy<TAO_IIOP_Connection_Handler> TAO_IIOP_Connector::TAO_IIOP_CONNECT_CONCURRENCY_STRATEGY

typedef TAO_Connect_Creation_Strategy<TAO_IIOP_Connection_Handler> TAO_IIOP_Connector::TAO_IIOP_CONNECT_CREATION_STRATEGY

typedef ACE_Connect_Strategy<TAO_IIOP_Connection_Handler, ACE_SOCK_CONNECTOR> TAO_IIOP_Connector::TAO_IIOP_CONNECT_STRATEGY

---

Constructor & Destructor Documentation

TAO_IIOP_Connector::TAO_IIOP_Connector (  CORBA::Boolean    flag = 0 )

Constructor.

TAO_IIOP_Connector::~TAO_IIOP_Connector (  void    )

Destructor.

---

Member Function Documentation

int TAO_IIOP_Connector::check_prefix (  const char *    endpoint )  [virtual]

Check that the prefix of the provided endpoint is valid for use with a given pluggable protocol. Implements TAO_Connector.

int TAO_IIOP_Connector::close (  void    )  [virtual]

Shutdown Connector bridge and concrete Connector. Implements TAO_Connector.

TAO_Profile * TAO_IIOP_Connector::create_profile (  TAO_InputCDR &    cdr )  [virtual]

Create a profile for this protocol and initialize it based on the encapsulation in <cdr> Implements TAO_Connector.

int TAO_IIOP_Connector::init_tcp_properties (  void    )  [protected]

Obtain tcp properties that must be used by this connector, i.e., initialize <tcp_properties_>.

TAO_Transport * TAO_IIOP_Connector::make_connection (  TAO::Profile_Transport_Resolver *    r, TAO_Transport_Descriptor_Interface &    desc, ACE_Time_Value *    timeout = 0 )  [protected, virtual]

Implements TAO_Connector.

TAO_Profile * TAO_IIOP_Connector::make_profile (  ACE_ENV_SINGLE_ARG_DECL    )  [protected, virtual]

More TAO_Connector methods, please check the documentation on Transport_Connector.h Implements TAO_Connector.

char TAO_IIOP_Connector::object_key_delimiter (  void    )  const [virtual]

Return the object key delimiter to use or expect. Implements TAO_Connector.

int TAO_IIOP_Connector::open (  TAO_ORB_Core *    orb_core )  [virtual]

Initialize object and register with reactor. Implements TAO_Connector.

TAO_IIOP_Endpoint * TAO_IIOP_Connector::remote_endpoint (  TAO_Endpoint *    ep )  [private]

Return the remote endpoint, a helper function.

int TAO_IIOP_Connector::set_validate_endpoint (  TAO_Endpoint *    ep )  [protected, virtual]

Set and validate endpoint. We need to do this to initialize our remote *_Addr's which have not been done during IOR decode. Implements TAO_Connector.

---

Member Data Documentation

TAO_IIOP_BASE_CONNECTOR TAO_IIOP_Connector::base_connector_ [private]

The connector initiating connection requests for IIOP.

TAO_IIOP_CONNECT_STRATEGY TAO_IIOP_Connector::connect_strategy_ [private]

Our connect strategy.

CORBA::Boolean TAO_IIOP_Connector::lite_flag_ [protected]

Do we need to use a GIOP_Lite for sending messages?

TAO_IIOP_Properties TAO_IIOP_Connector::tcp_properties_ [protected]

TCP configuration properties to be used for all connections established by this connector.

---

The documentation for this class was generated from the following files:

• IIOP_Connector.h
• IIOP_Connector.cpp

---
