TAO_Connect_Strategy Class Reference

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections. More...

#include <Connect_Strategy.h>

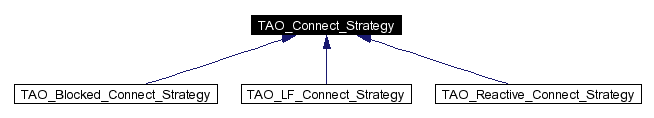

Inheritance diagram for TAO_Connect_Strategy:

[legend]Collaboration diagram for TAO_Connect_Strategy:

[legend]List of all members.

Public Methods
	TAO_Connect_Strategy (TAO_ORB_Core *orb)
	Constructor.
virtual	~TAO_Connect_Strategy (void)
	Destructor.
virtual void	synch_options (ACE_Time_Value *val, ACE_Synch_Options &opt)=0
	Obtain the synch options that can be passed to ACE_Connector.
virtual int	wait (TAO_Connection_Handler *ch, ACE_Time_Value *val)=0
	Wait for the connection to be completed till a timeout occurs.
Protected Attributes
TAO_ORB_Core *	orb_core_
	Cached copy of the ORB core pointer.

---

Detailed Description

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections.

The thread that establishes remote connections can either make a blocking or a non-blocking connect. The strategy to wait for the connection completion can also be different.

This strategy controls how does the ORB schedules and waits for connection completion.

---

Constructor & Destructor Documentation

TAO_Connect_Strategy::TAO_Connect_Strategy (  TAO_ORB_Core *    orb )

Constructor.

TAO_Connect_Strategy::~TAO_Connect_Strategy (  void    )  [virtual]

Destructor.

---

Member Function Documentation

virtual void TAO_Connect_Strategy::synch_options (  ACE_Time_Value *    val, ACE_Synch_Options &    opt )  [pure virtual]

Obtain the synch options that can be passed to ACE_Connector. Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

virtual int TAO_Connect_Strategy::wait (  TAO_Connection_Handler *    ch, ACE_Time_Value *    val )  [pure virtual]

Wait for the connection to be completed till a timeout occurs. Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

---

Member Data Documentation

TAO_ORB_Core* TAO_Connect_Strategy::orb_core_ [protected]

Cached copy of the ORB core pointer.

---

The documentation for this class was generated from the following files:

• Connect_Strategy.h
• Connect_Strategy.cpp

---
