TAO_AV_RTCP_Callback Class Reference

TAO_AV_Callback for RTCP protocol. More...

#include <RTCP.h>

Inheritance diagram for TAO_AV_RTCP_Callback:

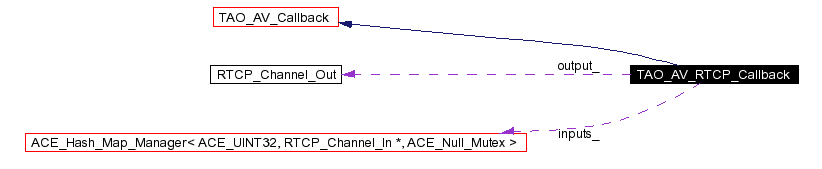

[legend]Collaboration diagram for TAO_AV_RTCP_Callback:

[legend]List of all members.

Public Methods
	TAO_AV_RTCP_Callback (void)
	RTCP callback.
virtual	~TAO_AV_RTCP_Callback (void)
	virtual destructor.
virtual int	handle_start (void)
	Called during Streamctrl->start.
virtual int	handle_stop (void)
	Called during Streamctrl->stop.
virtual int	handle_timeout (void *arg)
	Called during timeout for Flow Producers.
virtual int	receive_frame (ACE_Message_Block *frame, TAO_AV_frame_info *frame_info=0, const ACE_Addr &peer_address=ACE_Addr::sap_any)
	Called when a frame arrives for a FlowConsumer.
int	send_frame (ACE_Message_Block *frame)
virtual int	receive_control_frame (ACE_Message_Block *frame, const ACE_Addr &peer_address=ACE_Addr::sap_any)
	address from which the frame was received.
virtual int	handle_destroy (void)
virtual void	get_timeout (ACE_Time_Value *&tv, void *&arg)
int	send_report (int bye)
void	schedule (int ms)
TAO_AV_RTP_State *	state (void)
void	ts_offset (ACE_UINT32 offset)
Protected Attributes
ACE_Hash_Map_Manager< ACE_UINT32, RTCP_Channel_In *, ACE_Null_Mutex >	inputs_
RTCP_Channel_Out	output_
int	timeout_
int	timestamp_offset_
int	sdes_count_
int	is_initial_timeout_
int	avg_rtcp_size_
int	packet_size_

---

Detailed Description

TAO_AV_Callback for RTCP protocol.

---

Constructor & Destructor Documentation

TAO_AV_RTCP_Callback::TAO_AV_RTCP_Callback (  void    )

RTCP callback.

TAO_AV_RTCP_Callback::~TAO_AV_RTCP_Callback (  void    )  [virtual]

virtual destructor.

---

Member Function Documentation

void TAO_AV_RTCP_Callback::get_timeout (  ACE_Time_Value *&    tv, void *&    arg )  [virtual]

Called to get the timeout. If tv is 0 then the framework stop calling this. Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_destroy (  void    )  [virtual]

Called during Streamctrl->destroy i.e tear_down of the stream @coryan:Call it handle_destroy or handle_close. Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_start (  void    )  [virtual]

Called during Streamctrl->start. Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_stop (  void    )  [virtual]

Called during Streamctrl->stop. Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_timeout (  void *    arg )  [virtual]

Called during timeout for Flow Producers. Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::receive_control_frame (  ACE_Message_Block *    frame, const ACE_Addr &    peer_address = ACE_Addr::sap_any )  [virtual]

address from which the frame was received. Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::receive_frame (  ACE_Message_Block *    frame, TAO_AV_frame_info *    frame_info = 0, const ACE_Addr &    peer_address = ACE_Addr::sap_any )  [virtual]

Called when a frame arrives for a FlowConsumer. Reimplemented from TAO_AV_Callback.

void TAO_AV_RTCP_Callback::schedule (  int    ms )

int TAO_AV_RTCP_Callback::send_frame (  ACE_Message_Block *    frame )

int TAO_AV_RTCP_Callback::send_report (  int    bye )

TAO_AV_RTP_State* TAO_AV_RTCP_Callback::state (  void    )

void TAO_AV_RTCP_Callback::ts_offset (  ACE_UINT32    offset )

---

Member Data Documentation

int TAO_AV_RTCP_Callback::avg_rtcp_size_ [protected]

ACE_Hash_Map_Manager<ACE_UINT32, RTCP_Channel_In*, ACE_Null_Mutex> TAO_AV_RTCP_Callback::inputs_ [protected]

int TAO_AV_RTCP_Callback::is_initial_timeout_ [protected]

RTCP_Channel_Out TAO_AV_RTCP_Callback::output_ [protected]

int TAO_AV_RTCP_Callback::packet_size_ [protected]

int TAO_AV_RTCP_Callback::sdes_count_ [protected]

int TAO_AV_RTCP_Callback::timeout_ [protected]

int TAO_AV_RTCP_Callback::timestamp_offset_ [protected]

---

The documentation for this class was generated from the following files:

• RTCP.h
• RTCP.cpp

---
