ACE_WIN32_Asynch_Write_File Class Reference

This class is a factory for starting off asynchronous writes on a file. More...

#include <WIN32_Asynch_IO.h>

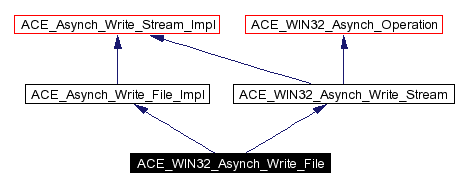

Inheritance diagram for ACE_WIN32_Asynch_Write_File:

[legend]Collaboration diagram for ACE_WIN32_Asynch_Write_File:

[legend]List of all members.

Public Methods
	ACE_WIN32_Asynch_Write_File (ACE_WIN32_Proactor *win32_proactor)
	Constructor.
int	write (ACE_Message_Block &message_block, size_t bytes_to_write, u_long offset, u_long offset_high, const void *act, int priority, int signal_number=0)
int	writev (ACE_Message_Block &message_block, size_t bytes_to_write, u_long offset, u_long offset_high, const void *act, int priority, int signal_number=0)
virtual	~ACE_WIN32_Asynch_Write_File (void)
	Destrcutor.
int	open (ACE_Handler &handler, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)
int	cancel (void)
ACE_Proactor *	proactor (void) const
	Return the underlying proactor.
Private Methods
int	write (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, int priority, int signal_number=0)
int	writev (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, int priority, int signal_number=0)

---

Detailed Description

This class is a factory for starting off asynchronous writes on a file.

Once <open> is called, multiple asynchronous <write>s can be started using this class. A ACE_Asynch_Write_File::Result will be passed back to the <handler> when the asynchronous writes completes through the <ACE_Handler::handle_write_file> callback.

---

Constructor & Destructor Documentation

ACE_WIN32_Asynch_Write_File::ACE_WIN32_Asynch_Write_File (  ACE_WIN32_Proactor *    win32_proactor )

Constructor.

ACE_WIN32_Asynch_Write_File::~ACE_WIN32_Asynch_Write_File (  void    )  [virtual]

Destrcutor.

---

Member Function Documentation

int ACE_WIN32_Asynch_Write_File::cancel (  void    )  [virtual]

This cancels all pending accepts operations that were issued by the calling thread. The function does not cancel asynchronous operations issued by other threads. Reimplemented from ACE_WIN32_Asynch_Write_Stream.

int ACE_WIN32_Asynch_Write_File::open (  ACE_Handler &    handler, ACE_HANDLE    handle, const void *    completion_key, ACE_Proactor *    proactor )  [virtual]

Initializes the factory with information which will be used with each asynchronous call. If (<handle> == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the <handler> to get the correct handle. Reimplemented from ACE_WIN32_Asynch_Write_Stream.

ACE_Proactor * ACE_WIN32_Asynch_Write_File::proactor (  void    )  const [virtual]

Return the underlying proactor. Reimplemented from ACE_WIN32_Asynch_Write_Stream.

int ACE_WIN32_Asynch_Write_File::write (  ACE_Message_Block &    message_block, size_t    bytes_to_write, const void *    act, int    priority, int    signal_number = 0 )  [private, virtual]

This method belongs to ACE_WIN32_Asynch_Write_Stream. It is here to avoid compiler warnings. This method is forwarded to the ACE_WIN32_Asynch_Write_Stream class. Implements ACE_Asynch_Write_File_Impl.

int ACE_WIN32_Asynch_Write_File::write (  ACE_Message_Block &    message_block, size_t    bytes_to_write, u_long    offset, u_long    offset_high, const void *    act, int    priority, int    signal_number = 0 )  [virtual]

This starts off an asynchronous write. Upto <bytes_to_write> will be write and stored in the <message_block>. The write will start at <offset> from the beginning of the file. Implements ACE_Asynch_Write_File_Impl.

int ACE_WIN32_Asynch_Write_File::writev (  ACE_Message_Block &    message_block, size_t    bytes_to_write, const void *    act, int    priority, int    signal_number = 0 )  [private, virtual]

Same as above but with gather support, through chaining of composite message blocks using the continuation field. Implements ACE_Asynch_Write_File_Impl.

int ACE_WIN32_Asynch_Write_File::writev (  ACE_Message_Block &    message_block, size_t    bytes_to_write, u_long    offset, u_long    offset_high, const void *    act, int    priority, int    signal_number = 0 )  [virtual]

Same as above but with gather support, through chaining of composite message blocks using the continuation field. NOTE: Each data block payload must be at least the size of a system memory page and must be aligned on a system memory page size boundary Implements ACE_Asynch_Write_File_Impl.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/WIN32_Asynch_IO.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/WIN32_Asynch_IO.cpp

---
