ACE_WIN32_Asynch_Transmit_File_Result Class Reference

This class implements ACE_Asynch_Transmit_File::Result for WIN32 platforms. More...

#include <WIN32_Asynch_IO.h>

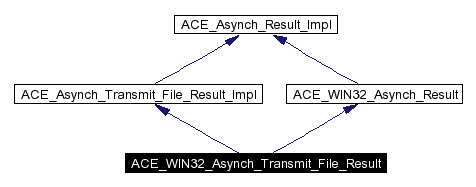

Inheritance diagram for ACE_WIN32_Asynch_Transmit_File_Result:

Inheritance graph
[legend]

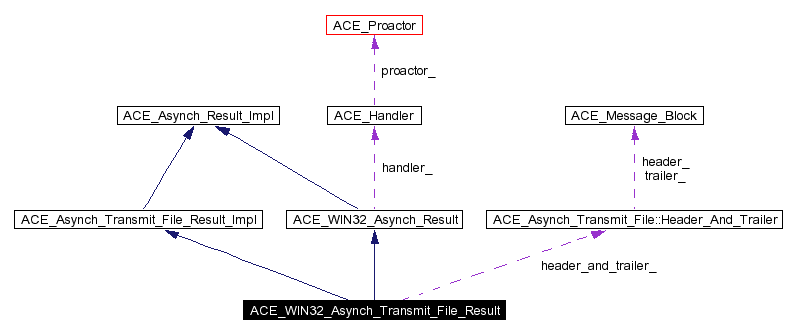

Collaboration diagram for ACE_WIN32_Asynch_Transmit_File_Result:

Collaboration graph
[legend]
List of all members.

Public Methods

ACE_HANDLE socket (void) const
 Socket used for transmitting the file.

ACE_HANDLE file (void) const
 File from which the data is read.

ACE_Asynch_Transmit_File::Header_And_Trailerheader_and_trailer (void) const
 Header and trailer data associated with this transmit file.

size_t bytes_to_write (void) const
size_t bytes_per_send (void) const
u_long flags (void) const
 Flags which were passed into transmit file.

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation.

const void * act (void) const
 ACT associated with the operation.

int success (void) const
 Did the operation succeed?

const void * completion_key (void) const
u_long error (void) const
 Error value if the operation fail.

ACE_HANDLE event (void) const
 Event associated with the OVERLAPPED structure.

u_long offset (void) const
 This really make sense only when doing file I/O.

u_long offset_high (void) const
 Offset_high associated with the OVERLAPPED structure.

int priority (void) const
int signal_number (void) const
 No-op. Returns 0.

int post_completion (ACE_Proactor_Impl *proactor)
 Post <this> to the Proactor's completion port.


Protected Methods

 ACE_WIN32_Asynch_Transmit_File_Result (ACE_Handler &handler, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, size_t bytes_to_write, u_long offset, u_long offset_high, size_t bytes_per_send, u_long flags, const void *act, ACE_HANDLE event, int priority, int signal_number=0)
virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
 Proactor will call this method when the write completes.

virtual ~ACE_WIN32_Asynch_Transmit_File_Result (void)
 Destructor.


Protected Attributes

ACE_HANDLE socket_
 Network I/O handle.

ACE_HANDLE file_
 File I/O handle.

ACE_Asynch_Transmit_File::Header_And_Trailerheader_and_trailer_
 Header and trailer data associated with this transmit file.

size_t bytes_to_write_
size_t bytes_per_send_
u_long flags_
 Flags which were passed into transmit file.


Friends

class ACE_WIN32_Asynch_Transmit_File
 Factory class will have special permission.

class ACE_WIN32_Proactor
 Proactor class has special permission.


Detailed Description

This class implements ACE_Asynch_Transmit_File::Result for WIN32 platforms.

This class has all the information necessary for the <handler> to uniquiely identify the completion of the asynchronous transmit file.


Constructor & Destructor Documentation

ACE_WIN32_Asynch_Transmit_File_Result::ACE_WIN32_Asynch_Transmit_File_Result ACE_Handler   handler,
ACE_HANDLE    socket,
ACE_HANDLE    file,
ACE_Asynch_Transmit_File::Header_And_Trailer   header_and_trailer,
size_t    bytes_to_write,
u_long    offset,
u_long    offset_high,
size_t    bytes_per_send,
u_long    flags,
const void *    act,
ACE_HANDLE    event,
int    priority,
int    signal_number = 0
[protected]


Constructor is protected since creation is limited to ACE_Asynch_Transmit_File factory.

ACE_WIN32_Asynch_Transmit_File_Result::~ACE_WIN32_Asynch_Transmit_File_Result void    [protected, virtual]


Destructor.


Member Function Documentation

const void * ACE_WIN32_Asynch_Transmit_File_Result::act void    const [virtual]


ACT associated with the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_per_send void    const [virtual]


Number of bytes per send requested at the start of the transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_to_write void    const [virtual]


The number of bytes which were requested at the start of the asynchronous transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_transferred void    const [virtual]


Number of bytes transferred by the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

void ACE_WIN32_Asynch_Transmit_File_Result::complete size_t    bytes_transferred,
int    success,
const void *    completion_key,
u_long    error
[protected, virtual]


Proactor will call this method when the write completes.

Implements ACE_Asynch_Result_Impl.

const void * ACE_WIN32_Asynch_Transmit_File_Result::completion_key void    const [virtual]


This returns the ACT associated with the handle when it was registered with the I/O completion port. This ACT is not the same as the ACT associated with the asynchronous operation.

Reimplemented from ACE_WIN32_Asynch_Result.

u_long ACE_WIN32_Asynch_Transmit_File_Result::error void    const [virtual]


Error value if the operation fail.

Reimplemented from ACE_WIN32_Asynch_Result.

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::event void    const [virtual]


Event associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::file void    const [virtual]


File from which the data is read.

Implements ACE_Asynch_Transmit_File_Result_Impl.

u_long ACE_WIN32_Asynch_Transmit_File_Result::flags void    const [virtual]


Flags which were passed into transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

ACE_Asynch_Transmit_File::Header_And_Trailer * ACE_WIN32_Asynch_Transmit_File_Result::header_and_trailer void    const [virtual]


Header and trailer data associated with this transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

u_long ACE_WIN32_Asynch_Transmit_File_Result::offset void    const [virtual]


This really make sense only when doing file I/O.

Reimplemented from ACE_WIN32_Asynch_Result.

u_long ACE_WIN32_Asynch_Transmit_File_Result::offset_high void    const [virtual]


Offset_high associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Transmit_File_Result::post_completion ACE_Proactor_Impl   proactor [virtual]


Post <this> to the Proactor's completion port.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Transmit_File_Result::priority void    const [virtual]


The priority of the asynchronous operation. Currently, this is not supported on Win32.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Transmit_File_Result::signal_number void    const [virtual]


No-op. Returns 0.

Reimplemented from ACE_WIN32_Asynch_Result.

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::socket void    const [virtual]


Socket used for transmitting the file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

int ACE_WIN32_Asynch_Transmit_File_Result::success void    const [virtual]


Did the operation succeed?

Reimplemented from ACE_WIN32_Asynch_Result.


Friends And Related Function Documentation

friend class ACE_WIN32_Asynch_Transmit_File [friend]


Factory class will have special permission.

friend class ACE_WIN32_Proactor [friend]


Proactor class has special permission.

Reimplemented from ACE_WIN32_Asynch_Result.


Member Data Documentation

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_per_send_ [protected]


Number of bytes per send requested at the start of the transmit file.

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_to_write_ [protected]


The number of bytes which were requested at the start of the asynchronous transmit file.

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::file_ [protected]


File I/O handle.

u_long ACE_WIN32_Asynch_Transmit_File_Result::flags_ [protected]


Flags which were passed into transmit file.

ACE_Asynch_Transmit_File::Header_And_Trailer* ACE_WIN32_Asynch_Transmit_File_Result::header_and_trailer_ [protected]


Header and trailer data associated with this transmit file.

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::socket_ [protected]


Network I/O handle.


The documentation for this class was generated from the following files:
