ACE_Token_Invariant_Manager Class Reference

Token Invariants. More...

#include <Token_Invariants.h>

Inheritance diagram for ACE_Token_Invariant_Manager:

Inheritance graph
[legend]

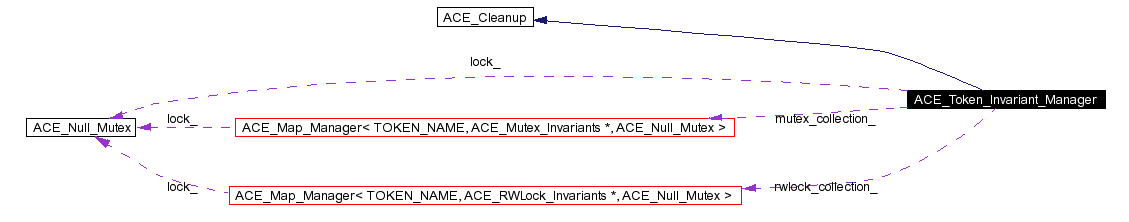

Collaboration diagram for ACE_Token_Invariant_Manager:

Collaboration graph
[legend]
List of all members.

Public Methods

int acquired (const ACE_Token_Proxy *proxy)
void releasing (const ACE_Token_Proxy *proxy)
 Updates internal database.

int mutex_acquired (const ACE_TCHAR *token_name)
void mutex_releasing (const ACE_TCHAR *token_name)
 Updates internal database.

int reader_acquired (const ACE_TCHAR *token_name)
int writer_acquired (const ACE_TCHAR *token_name)
void rwlock_releasing (const ACE_TCHAR *token_name)
 Updates internal database.

void dump (void) const
 Dump the state of the class.

 ACE_Token_Invariant_Manager (void)
 Prevent non-singleton construction.

virtual ~ACE_Token_Invariant_Manager (void)
 Destruction.


Static Public Methods

ACE_Token_Invariant_Manager * instance (void)
 Singleton access point.


Protected Types

typedef ACE_Token_Name TOKEN_NAME
 This may be changed to a template type.

typedef ACE_Map_Manager< TOKEN_NAME,
ACE_Mutex_Invariants *, ACE_Null_Mutex
MUTEX_COLLECTION
 COLLECTION maintains a mapping from token names to mutexes.

typedef MUTEX_COLLECTION::ITERATOR MUTEX_COLLECTION_ITERATOR
 Allows iterations through collection.

typedef MUTEX_COLLECTION::ENTRY MUTEX_COLLECTION_ENTRY
 Allows iterations through collection.

typedef ACE_Map_Manager< TOKEN_NAME,
ACE_RWLock_Invariants *,
ACE_Null_Mutex
RWLOCK_COLLECTION
 COLLECTION maintains a mapping from token names to mutexes.

typedef RWLOCK_COLLECTION::ITERATOR RWLOCK_COLLECTION_ITERATOR
 Allows iterations through collection.

typedef RWLOCK_COLLECTION::ENTRY RWLOCK_COLLECTION_ENTRY
 Allows iterations through collection.


Protected Methods

int get_mutex (const ACE_TCHAR *token_name, ACE_Mutex_Invariants *&inv)
 Return or create.

int get_rwlock (const ACE_TCHAR *token_name, ACE_RWLock_Invariants *&inv)
 Return or create.


Protected Attributes

ACE_TOKEN_CONST::MUTEX lock_
 ACE_Mutex_Token used to lock internal data structures.

MUTEX_COLLECTION mutex_collection_
 MUTEX_COLLECTION maintains a mapping from token names to mutexes.

RWLOCK_COLLECTION rwlock_collection_
 MUTEX_COLLECTION maintains a mapping from token names to mutexes.


Static Protected Attributes

ACE_Token_Invariant_Manager * instance_ = 0
 Singleton pointer.


Detailed Description

Token Invariants.

The Token Invariant Manager allows applications to test that invariants are always satisfied. Currently, Token_Invariants can test mutexes and readers/writer locks. Does not test recursive acquisition. Note that this class does not ever clean its database. Until destroyed, it's size will forever increase.


Member Typedef Documentation

typedef ACE_Map_Manager<TOKEN_NAME, ACE_Mutex_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::MUTEX_COLLECTION [protected]


COLLECTION maintains a mapping from token names to mutexes.

typedef MUTEX_COLLECTION::ENTRY ACE_Token_Invariant_Manager::MUTEX_COLLECTION_ENTRY [protected]


Allows iterations through collection.

Deprecated:
Deprecated typedef. Use MUTEX_COLLECTION::ENTRY trait instead.

typedef MUTEX_COLLECTION::ITERATOR ACE_Token_Invariant_Manager::MUTEX_COLLECTION_ITERATOR [protected]


Allows iterations through collection.

Deprecated:
Deprecated typedef. Use MUTEX_COLLECTION::ITERATOR trait instead.

typedef ACE_Map_Manager<TOKEN_NAME, ACE_RWLock_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::RWLOCK_COLLECTION [protected]


COLLECTION maintains a mapping from token names to mutexes.

typedef RWLOCK_COLLECTION::ENTRY ACE_Token_Invariant_Manager::RWLOCK_COLLECTION_ENTRY [protected]


Allows iterations through collection.

Deprecated:
Deprecated typedef. Use RWLOCK_COLLECTION::ENTRY trait instead.

typedef RWLOCK_COLLECTION::ITERATOR ACE_Token_Invariant_Manager::RWLOCK_COLLECTION_ITERATOR [protected]


Allows iterations through collection.

Deprecated:
Deprecated typedef. Use RWLOCK_COLLECTION::ITERATOR trait instead.

typedef ACE_Token_Name ACE_Token_Invariant_Manager::TOKEN_NAME [protected]


This may be changed to a template type.


Constructor & Destructor Documentation

ACE_Token_Invariant_Manager::ACE_Token_Invariant_Manager void


Prevent non-singleton construction.

ACE_Token_Invariant_Manager::~ACE_Token_Invariant_Manager void    [virtual]


Destruction.


Member Function Documentation

int ACE_Token_Invariant_Manager::acquired const ACE_Token_Proxy   proxy


Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::dump void    const


Dump the state of the class.

int ACE_Token_Invariant_Manager::get_mutex const ACE_TCHAR   token_name,
ACE_Mutex_Invariants *&    inv
[protected]


Return or create.

int ACE_Token_Invariant_Manager::get_rwlock const ACE_TCHAR   token_name,
ACE_RWLock_Invariants *&    inv
[protected]


Return or create.

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance void    [static]


Singleton access point.

int ACE_Token_Invariant_Manager::mutex_acquired const ACE_TCHAR   token_name


Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::mutex_releasing const ACE_TCHAR   token_name


Updates internal database.

int ACE_Token_Invariant_Manager::reader_acquired const ACE_TCHAR   token_name


Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::releasing const ACE_Token_Proxy   proxy


Updates internal database.

void ACE_Token_Invariant_Manager::rwlock_releasing const ACE_TCHAR   token_name


Updates internal database.

int ACE_Token_Invariant_Manager::writer_acquired const ACE_TCHAR   token_name


Returns 1 on success, 0 when an invariant has been violated and -1 on error.


Member Data Documentation

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance_ = 0 [static, protected]


Singleton pointer.

ACE_TOKEN_CONST::MUTEX ACE_Token_Invariant_Manager::lock_ [protected]


ACE_Mutex_Token used to lock internal data structures.

MUTEX_COLLECTION ACE_Token_Invariant_Manager::mutex_collection_ [protected]


MUTEX_COLLECTION maintains a mapping from token names to mutexes.

RWLOCK_COLLECTION ACE_Token_Invariant_Manager::rwlock_collection_ [protected]


MUTEX_COLLECTION maintains a mapping from token names to mutexes.


The documentation for this class was generated from the following files:
Generated on Wed Jan 14 22:49:20 2004 for ACE by doxygen1.2.18
