ACE_Token Class Reference

Class that acquires, renews, and releases a synchronization token that is serviced in strict FIFO/LIFO ordering and that also supports (1) recursion and (2) readers/writer semantics. More...

#include <Token.h>

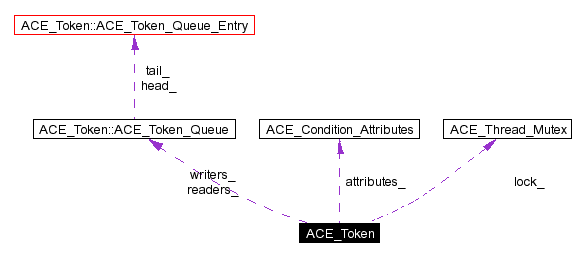

Collaboration diagram for ACE_Token:

[legend]List of all members.

Public Types
enum	QUEUEING_STRATEGY { FIFO = -1, LIFO = 0 }
Public Methods
	ACE_Token (const ACE_TCHAR *name=0, void *=0)
	Constructor.
virtual	~ACE_Token (void)
	Destructor.
int	queueing_strategy (void)
	Retrieve the current queueing strategy.
void	queueing_strategy (int queueing_strategy)
	Set the queueing strategy.
int	acquire (void(*sleep_hook)(void *), void *arg=0, ACE_Time_Value *timeout=0)
int	acquire (ACE_Time_Value *timeout=0)
virtual void	sleep_hook (void)
int	renew (int requeue_position=0, ACE_Time_Value *timeout=0)
int	tryacquire (void)
int	remove (void)
	Shuts down the ACE_Token instance.
int	release (void)
int	acquire_read (void)
int	acquire_read (void(*sleep_hook)(void *), void *arg=0, ACE_Time_Value *timeout=0)
	More sophisticate version of acquire_read.
int	acquire_write (void)
	Just calls <acquire>.
int	acquire_write (void(*sleep_hook)(void *), void *arg=0, ACE_Time_Value *timeout=0)
	More sophisticate version of acquire_write.
int	tryacquire_read (void)
	Lower priority try_acquire.
int	tryacquire_write (void)
	Just calls <tryacquire>.
int	tryacquire_write_upgrade (void)
	Assumes the caller has acquired the token and returns 0.
int	waiters (void)
ACE_thread_t	current_owner (void)
	Return the id of the current thread that owns the token.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Types
enum	ACE_Token_Op_Type { READ_TOKEN = 1, WRITE_TOKEN }
Private Methods
int	shared_acquire (void(*sleep_hook_func)(void *), void *arg, ACE_Time_Value *timeout, ACE_Token_Op_Type op_type)
	Implements the <acquire> and <tryacquire> methods above.
void	wakeup_next_waiter (void)
	Wake next in line for ownership.
Private Attributes
ACE_Token_Queue	writers_
	A queue of writer threads.
ACE_Token_Queue	readers_
	A queue of reader threads.
ACE_Thread_Mutex	lock_
	ACE_Thread_Mutex used to lock internal data structures.
ACE_thread_t	owner_
	Current owner of the token.
int	in_use_
int	waiters_
	Number of waiters.
int	nesting_level_
	Current nesting level.
ACE_Condition_Attributes	attributes_
	The attributes for the condition variables, optimizes lock time.
int	queueing_strategy_
	Queueing strategy, LIFO/FIFO.

---

Detailed Description

Class that acquires, renews, and releases a synchronization token that is serviced in strict FIFO/LIFO ordering and that also supports (1) recursion and (2) readers/writer semantics.

This class is a more general-purpose synchronization mechanism than many native OS mutexes. For example, it implements "recursive mutex" semantics, where a thread that owns the token can reacquire it without deadlocking. If the same thread calls <acquire> multiple times, however, it must call <release> an equal number of times before the token is actually released. Threads that are blocked awaiting the token are serviced in strict FIFO/LIFO order as other threads release the token (Solaris and Pthread mutexes don't strictly enforce an acquisition order). There are two lists within the class. Write acquires always have higher priority over read acquires. Which means, if you use both write/read operations, care must be taken to avoid starvation on the readers. Notice that the read/write acquire operations do not have the usual semantic of reader/writer locks. Only one reader can acquire the token at a time (which is different from the usual reader/writer locks where several readers can acquire a lock at the same time as long as there is no writer waiting for the lock). We choose the names to (1) borrow the semantic to give writers higher priority and (2) support a common interface for all locking classes in ACE.

---

Member Enumeration Documentation

enum ACE_Token::ACE_Token_Op_Type [private]

Enumeration values: READ_TOKEN  WRITE_TOKEN

enum ACE_Token::QUEUEING_STRATEGY

Available queueing strategies. Enumeration values: FIFO  FIFO, First In, First Out. LIFO  LIFO, Last In, First Out.

---

Constructor & Destructor Documentation

ACE_Token::ACE_Token (  const ACE_TCHAR *    name = 0, void *    = 0 )

Constructor.

ACE_Token::~ACE_Token (  void    )  [virtual]

Destructor.

---

Member Function Documentation

int ACE_Token::acquire (  ACE_Time_Value *    timeout = 0 )

This behaves just like the previous <acquire> method, except that it invokes the virtual function called <sleep_hook> that can be overridden by a subclass of ACE_Token.

int ACE_Token::acquire (  void(*    sleep_hook)(void *), void *    arg = 0, ACE_Time_Value *    timeout = 0 )

Acquire the token, sleeping until it is obtained or until the expiration of <timeout>, which is treated as "absolute" time. If some other thread currently holds the token then <sleep_hook> is called before our thread goes to sleep. This <sleep_hook> can be used by the requesting thread to unblock a token-holder that is sleeping, e.g., by means of writing to a pipe (the ACE ACE_Reactor uses this functionality). Return values: 0 if acquires without calling <sleep_hook> 1 if <sleep_hook> is called. 2 if the token is signaled. -1 if failure or timeout occurs (if timeout occurs errno == ETIME) If <timeout> == <&ACE_Time_Value::zero> then acquire has polling semantics (and does *not* call <sleep_hook>).

ACE_INLINE int ACE_Token::acquire_read (  void(*    sleep_hook)(void *), void *    arg = 0, ACE_Time_Value *    timeout = 0 )

More sophisticate version of acquire_read.

ACE_INLINE int ACE_Token::acquire_read (  void    )

Behave like acquire but in a lower priority. It should probably be called acquire_yield.

ACE_INLINE int ACE_Token::acquire_write (  void(*    sleep_hook)(void *), void *    arg = 0, ACE_Time_Value *    timeout = 0 )

More sophisticate version of acquire_write.

ACE_INLINE int ACE_Token::acquire_write (  void    )

Just calls <acquire>.

ACE_INLINE ACE_thread_t ACE_Token::current_owner (  void    )

Return the id of the current thread that owns the token.

void ACE_Token::dump (  void    )  const

Dump the state of an object.

ACE_INLINE void ACE_Token::queueing_strategy (  int    queueing_strategy )

Set the queueing strategy.

ACE_INLINE int ACE_Token::queueing_strategy (  void    )

Retrieve the current queueing strategy.

int ACE_Token::release (  void    )

Relinquish the token. If there are any waiters then the next one in line gets it.

ACE_INLINE int ACE_Token::remove (  void    )

Shuts down the ACE_Token instance.

int ACE_Token::renew (  int    requeue_position = 0, ACE_Time_Value *    timeout = 0 )

An optimized method that efficiently reacquires the token if no other threads are waiting. This is useful for situations where you don't want to degrade the quality of service if there are other threads waiting to get the token. If <requeue_position> == -1 and there are other threads waiting to obtain the token we are queued according to the queueing strategy. If <requeue_position> > -1 then it indicates how many entries to skip over before inserting our thread into the list of waiters (e.g., <requeue_position> == 0 means "insert at front of the queue"). Renew has the rather odd semantics such that if there are other waiting threads it will give up the token even if the nesting_level_ > 1. I'm not sure if this is really the right thing to do (since it makes it possible for shared data to be changed unexpectedly) so use with caution... This method maintians the original token priority. As in <acquire>, the <timeout> value is an absolute time.

int ACE_Token::shared_acquire (  void(*    sleep_hook_func)(void *), void *    arg, ACE_Time_Value *    timeout, ACE_Token_Op_Type    op_type )  [private]

Implements the <acquire> and <tryacquire> methods above.

void ACE_Token::sleep_hook (  void    )  [virtual]

This should be overridden by a subclass to define the appropriate behavior before <acquire> goes to sleep. By default, this is a no-op...

ACE_INLINE int ACE_Token::tryacquire (  void    )

Become interface-compliant with other lock mechanisms (implements a non-blocking <acquire>).

ACE_INLINE int ACE_Token::tryacquire_read (  void    )

Lower priority try_acquire.

ACE_INLINE int ACE_Token::tryacquire_write (  void    )

Just calls <tryacquire>.

ACE_INLINE int ACE_Token::tryacquire_write_upgrade (  void    )

Assumes the caller has acquired the token and returns 0.

ACE_INLINE int ACE_Token::waiters (  void    )

Return the number of threads that are currently waiting to get the token.

void ACE_Token::wakeup_next_waiter (  void    )  [private]

Wake next in line for ownership.

---

Member Data Documentation

ACE_Token::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_Condition_Attributes ACE_Token::attributes_ [private]

The attributes for the condition variables, optimizes lock time.

int ACE_Token::in_use_ [private]

Some thread (i.e., <owner_>) is using the token. We need this extra variable to deal with POSIX pthreads madness...

ACE_Thread_Mutex ACE_Token::lock_ [private]

ACE_Thread_Mutex used to lock internal data structures.

int ACE_Token::nesting_level_ [private]

Current nesting level.

ACE_thread_t ACE_Token::owner_ [private]

Current owner of the token.

int ACE_Token::queueing_strategy_ [private]

Queueing strategy, LIFO/FIFO.

ACE_Token_Queue ACE_Token::readers_ [private]

A queue of reader threads.

int ACE_Token::waiters_ [private]

Number of waiters.

ACE_Token_Queue ACE_Token::writers_ [private]

A queue of writer threads.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Token.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Token.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Token.i

---
