ACE_Service_Type Class Reference

Keeps track of information related to the various <ACE_Service_Type_Impl> subclasses. More...

#include <Service_Object.h>

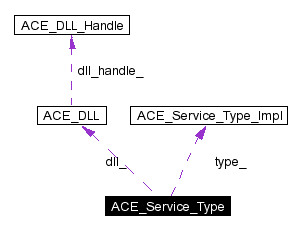

Collaboration diagram for ACE_Service_Type:

Collaboration graph
[legend]
List of all members.

Public Types

enum  { DELETE_OBJ = 1, DELETE_THIS = 2 }
enum  { SERVICE_OBJECT = ACE_SVC_OBJ_T, MODULE = ACE_MODULE_T, STREAM = ACE_STREAM_T, INVALID_TYPE = -1 }

Public Methods

 ACE_Service_Type (const ACE_TCHAR *n, ACE_Service_Type_Impl *o, const ACE_DLL &dll, int active)
 ACE_Service_Type (const ACE_TCHAR *n, ACE_Service_Type_Impl *o, ACE_SHLIB_HANDLE handle, int active)
 ~ACE_Service_Type (void)
const ACE_TCHARname (void) const
void name (const ACE_TCHAR *)
const ACE_Service_Type_Impltype (void) const
void type (const ACE_Service_Type_Impl *, int active=1)
int suspend (void) const
int resume (void) const
int active (void) const
void active (int)
int fini (void)
 Calls <fini> on <type_>.

int fini_called (void) const
 Check if the service has been fini'ed.

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Attributes

const ACE_TCHARname_
 Humanly readible name of svc.

const ACE_Service_Type_Impltype_
 Pointer to C++ object that implements the svc.

ACE_DLL dll_
 ACE_DLL representing the shared object file (non-zero if dynamically linked).

int active_
 1 if svc is currently active, otherwise 0.

int fini_already_called_
 1 if <fini> on <type_> has already been called, otherwise 0.


Detailed Description

Keeps track of information related to the various <ACE_Service_Type_Impl> subclasses.

This class acts as the interface of the "Bridge" pattern.


Member Enumeration Documentation

anonymous enum


Enumeration values:
DELETE_OBJ  Delete the payload object.
DELETE_THIS  Delete the enclosing object.

anonymous enum


Enumeration values:
SERVICE_OBJECT
MODULE
STREAM
INVALID_TYPE


Constructor & Destructor Documentation

ACE_Service_Type::ACE_Service_Type const ACE_TCHAR   n,
ACE_Service_Type_Impl   o,
const ACE_DLL   dll,
int    active


ACE_Service_Type::ACE_Service_Type const ACE_TCHAR   n,
ACE_Service_Type_Impl   o,
ACE_SHLIB_HANDLE    handle,
int    active


ACE_Service_Type::~ACE_Service_Type void



Member Function Documentation

ACE_INLINE void ACE_Service_Type::active int


ACE_INLINE int ACE_Service_Type::active void    const


void ACE_Service_Type::dump void    const


Dump the state of an object.

int ACE_Service_Type::fini void


Calls <fini> on <type_>.

ACE_INLINE int ACE_Service_Type::fini_called void    const


Check if the service has been fini'ed.

void ACE_Service_Type::name const ACE_TCHAR


ACE_INLINE const ACE_TCHAR * ACE_Service_Type::name void    const


int ACE_Service_Type::resume void    const


int ACE_Service_Type::suspend void    const


ACE_INLINE void ACE_Service_Type::type const ACE_Service_Type_Impl  ,
int    active = 1


ACE_INLINE const ACE_Service_Type_Impl * ACE_Service_Type::type void    const



Member Data Documentation

ACE_Service_Type::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

int ACE_Service_Type::active_ [private]


1 if svc is currently active, otherwise 0.

ACE_DLL ACE_Service_Type::dll_ [private]


ACE_DLL representing the shared object file (non-zero if dynamically linked).

int ACE_Service_Type::fini_already_called_ [private]


1 if <fini> on <type_> has already been called, otherwise 0.

const ACE_TCHAR* ACE_Service_Type::name_ [private]


Humanly readible name of svc.

const ACE_Service_Type_Impl* ACE_Service_Type::type_ [private]


Pointer to C++ object that implements the svc.


The documentation for this class was generated from the following files:
Generated on Wed Jan 14 22:47:48 2004 for ACE by doxygen1.2.18
