ACE_Service_Manager Class Reference

Provide a standard ACE service for managing all the services configured in an <ACE_Service_Repository>. More...

#include <Service_Manager.h>

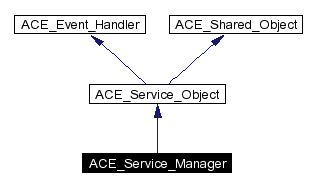

Inheritance diagram for ACE_Service_Manager:

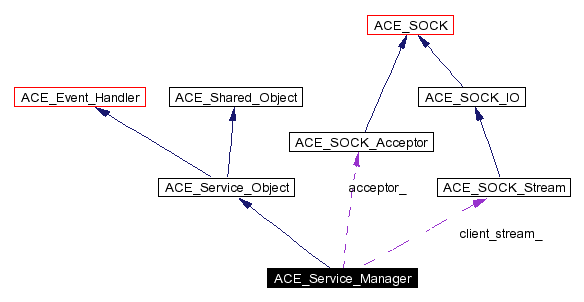

[legend]Collaboration diagram for ACE_Service_Manager:

[legend]List of all members.

Public Methods
	ACE_Service_Manager (void)
	Constructor.
	~ACE_Service_Manager (void)
	Destructor.
Protected Methods
virtual int	reconfigure_services (void)
	Trigger a reconfiguration of the Service Configurator by.
virtual int	list_services (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs.
virtual int	info (ACE_TCHAR **info_string, size_t length) const
	Returns information on a service object.
virtual int	fini (void)
	Terminates object when dynamic unlinking occurs.
virtual int	suspend (void)
	Temporarily disable a service without removing it completely.
virtual int	resume (void)
	Re-enable a previously suspended service.
void	dump (void) const
	Dump the state of an object.
int	open (const ACE_INET_Addr &sia)
virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle.
virtual int	handle_input (ACE_HANDLE fd)
	Called when input events occur (e.g., connection or data).
virtual int	handle_close (ACE_HANDLE fd, ACE_Reactor_Mask)
virtual int	handle_signal (int signum, siginfo_t *, ucontext_t *)
virtual void	process_request (ACE_TCHAR *request)
	Handle one request.
Protected Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
ACE_SOCK_Stream	client_stream_
ACE_SOCK_Acceptor	acceptor_
	Acceptor instance.
int	debug_
	Keep track of the debugging level.
int	signum_
	The signal used to trigger reconfiguration.
Static Protected Attributes
u_short	DEFAULT_PORT_ = 10000
	Default port for the Acceptor to listen on.

---

Detailed Description

Provide a standard ACE service for managing all the services configured in an <ACE_Service_Repository>.

This implementation is simple and just handles each client request one at a time. There are currently 3 types of requests: + List services: If the string "help" is sent, return a list of all the services supported by the Service Configurator. + Reconfigure: If the string "reconfigure" is sent trigger a reconfiguration, which will re-read the local <svc.conf> file. + Process directive: If neither "help" nor "reconfigure" is sent, simply treat the incoming string as a process directive and pass it along to <ACE_Service_Config::process_directive>. This allows remote configuration via command-line instructions like % echo suspend My_Remote_Service | telnet hostname 3911

Each request is associated with a new connection, which is closed when the request is processed. In addition, you must be using the singleton <ACE_Reactor::instance> in order to trigger reconfigurations.

---

Constructor & Destructor Documentation

ACE_Service_Manager::ACE_Service_Manager (  void    )

Constructor.

ACE_INLINE ACE_Service_Manager::~ACE_Service_Manager (  void    )

Destructor.

---

Member Function Documentation

void ACE_Service_Manager::dump (  void    )  const [protected]

Dump the state of an object.

int ACE_Service_Manager::fini (  void    )  [protected, virtual]

Terminates object when dynamic unlinking occurs. Reimplemented from ACE_Shared_Object.

ACE_HANDLE ACE_Service_Manager::get_handle (  void    )  const [protected, virtual]

Get the I/O handle. Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_close (  ACE_HANDLE    fd, ACE_Reactor_Mask    )  [protected, virtual]

Called when a <handle_*()> method returns -1 or when the <remove_handler> method is called on an <ACE_Reactor>. The <close_mask> indicates which event has triggered the <handle_close> method callback on a particular <handle>. Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_input (  ACE_HANDLE    fd )  [protected, virtual]

Called when input events occur (e.g., connection or data). Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_signal (  int    signum, siginfo_t *   , ucontext_t *    )  [protected, virtual]

Called when object is signaled by OS (either via UNIX signals or when a Win32 object becomes signaled). Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::info (  ACE_TCHAR **    info_string, size_t    length )  const [protected, virtual]

Returns information on a service object. Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::init (  int    argc, ACE_TCHAR *    argv[] )  [protected, virtual]

Initializes object when dynamic linking occurs. Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::list_services (  void    )  [protected, virtual]

Determine all the services offered by this daemon and return the information back to the client.

int ACE_Service_Manager::open (  const ACE_INET_Addr &    sia )  [protected]

void ACE_Service_Manager::process_request (  ACE_TCHAR *    request )  [protected, virtual]

Handle one request.

int ACE_Service_Manager::reconfigure_services (  void    )  [protected, virtual]

Trigger a reconfiguration of the Service Configurator by.

int ACE_Service_Manager::resume (  void    )  [protected, virtual]

Re-enable a previously suspended service. Reimplemented from ACE_Service_Object.

int ACE_Service_Manager::suspend (  void    )  [protected, virtual]

Temporarily disable a service without removing it completely. Reimplemented from ACE_Service_Object.

---

Member Data Documentation

ACE_SOCK_Acceptor ACE_Service_Manager::acceptor_ [protected]

Acceptor instance.

ACE_Service_Manager::ACE_ALLOC_HOOK_DECLARE [protected]

Declare the dynamic allocation hooks.

ACE_SOCK_Stream ACE_Service_Manager::client_stream_ [protected]

Connection to the client (we only support one client connection at a time).

int ACE_Service_Manager::debug_ [protected]

Keep track of the debugging level.

u_short ACE_Service_Manager::DEFAULT_PORT_ = 10000 [static, protected]

Default port for the Acceptor to listen on.

int ACE_Service_Manager::signum_ [protected]

The signal used to trigger reconfiguration.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Service_Manager.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Service_Manager.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Service_Manager.i

---
