ACE_Reverse_Lock< ACE_LOCKING_MECHANISM > Class Template Reference

A reverse (or anti) lock. More...

#include <Reverse_Lock_T.h>

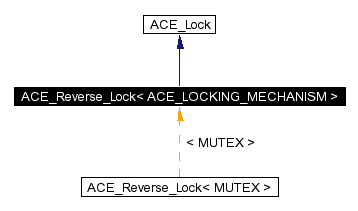

Inheritance diagram for ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >:

Inheritance graph
[legend]

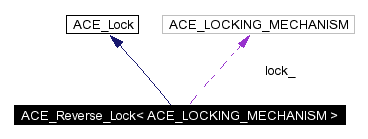

Collaboration diagram for ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_LOCKING_MECHANISM ACE_LOCK

Public Methods

 ACE_Reverse_Lock (ACE_LOCKING_MECHANISM &lock, ACE_Acquire_Method::METHOD_TYPE acquire_method=ACE_Acquire_Method::ACE_REGULAR)
 Constructor. All locking requests will be forwarded to <lock>.

virtual ~ACE_Reverse_Lock (void)
virtual int acquire (void)
 Release the lock.

virtual int tryacquire (void)
 Release the lock.

virtual int release (void)
 Acquire the lock.

virtual int acquire_read (void)
 Release the lock.

virtual int acquire_write (void)
 Release the lock.

virtual int tryacquire_read (void)
 Release the lock.

virtual int tryacquire_write (void)
 Release the lock.

virtual int tryacquire_write_upgrade (void)
 Release the lock.

virtual int remove (void)
 Explicitly destroy the lock.


Private Attributes

ACE_LOCKING_MECHANISM & lock_
 The concrete locking mechanism that all the methods delegate to.

ACE_Acquire_Method::METHOD_TYPE acquire_method_
 This indicates what kind of acquire method will be called.


Detailed Description

template<class ACE_LOCKING_MECHANISM>
class ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >

A reverse (or anti) lock.

This is an interesting adapter class that changes a lock into a reverse lock, i.e., <acquire> on this class calls <release> on the lock, and <release> on this class calls <acquire> on the lock. One motivation for this class is when we temporarily want to release a lock (which we have already acquired) but then reacquire it soon after. An alternative design would be to add a Anti_Guard or Reverse_Guard class which would <release> on construction and <acquire> destruction. However, there are *many* varieties of the Guard class and this design choice would lead to at least 6 new classes. One new ACE_Reverse_Lock class seemed more reasonable.


Member Typedef Documentation

template<class ACE_LOCKING_MECHANISM>
typedef ACE_LOCKING_MECHANISM ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::ACE_LOCK



Constructor & Destructor Documentation

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::ACE_Reverse_Lock ACE_LOCKING_MECHANISM &    lock,
ACE_Acquire_Method::METHOD_TYPE    acquire_method = ACE_Acquire_Method::ACE_REGULAR


Constructor. All locking requests will be forwarded to <lock>.

template<class ACE_LOCKING_MECHANISM>
ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::~ACE_Reverse_Lock void    [virtual]


Destructor. If <lock_> was not passed in by the user, it will be deleted.


Member Function Documentation

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::acquire void    [virtual]


Release the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::acquire_read void    [virtual]


Release the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::acquire_write void    [virtual]


Release the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::release void    [virtual]


Acquire the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::remove void    [virtual]


Explicitly destroy the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::tryacquire void    [virtual]


Release the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::tryacquire_read void    [virtual]


Release the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::tryacquire_write void    [virtual]


Release the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM>
ACE_INLINE int ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::tryacquire_write_upgrade void    [virtual]


Release the lock.

Implements ACE_Lock.


Member Data Documentation

template<class ACE_LOCKING_MECHANISM>
ACE_Acquire_Method::METHOD_TYPE ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::acquire_method_ [private]


This indicates what kind of acquire method will be called.

template<class ACE_LOCKING_MECHANISM>
ACE_LOCKING_MECHANISM& ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::lock_ [private]


The concrete locking mechanism that all the methods delegate to.


The documentation for this class was generated from the following files:
Generated on Wed Jan 14 22:47:26 2004 for ACE by doxygen1.2.18
