ACE_POSIX_Asynch_Connect Class Reference

#include <POSIX_Asynch_IO.h>

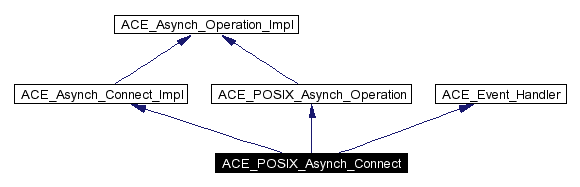

Inheritance diagram for ACE_POSIX_Asynch_Connect:

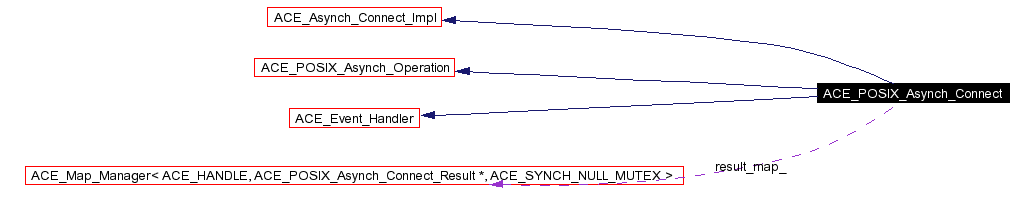

[legend]Collaboration diagram for ACE_POSIX_Asynch_Connect:

[legend]List of all members.

Public Methods
	ACE_POSIX_Asynch_Connect (ACE_POSIX_Proactor *posix_proactor)
	Constructor.
virtual	~ACE_POSIX_Asynch_Connect (void)
	Destructor.
int	open (ACE_Handler &handler, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor=0)
int	connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act, int priority, int signal_number=0)
int	cancel (void)
int	close (void)
ACE_HANDLE	get_handle (void) const
	virtual from ACE_Event_Handler
void	set_handle (ACE_HANDLE handle)
	virtual from ACE_Event_Handler
int	handle_input (ACE_HANDLE handle)
int	handle_output (ACE_HANDLE handle)
int	handle_exception (ACE_HANDLE handle)
	Called when an exceptional events occur (e.g., SIGURG).
int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
	virtual from ACE_Event_Handler
Private Types
typedef ACE_Map_Manager< ACE_HANDLE, ACE_POSIX_Asynch_Connect_Result *, ACE_SYNCH_NULL_MUTEX >	MAP_MANAGER
typedef MAP_MANAGER::ITERATOR	MAP_ITERATOR
typedef MAP_MANAGER::ENTRY	MAP_ENTRY
Private Methods
int	connect_i (ACE_POSIX_Asynch_Connect_Result *result, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr)
int	post_result (ACE_POSIX_Asynch_Connect_Result *result, int flg_post)
int	cancel_uncompleted (int flg_notify, ACE_Handle_Set &set)
	Cancel uncompleted connect operations.
Private Attributes
int	flg_open_
int	task_lock_count_
MAP_MANAGER	result_map_
ACE_SYNCH_MUTEX	lock_

---

Member Typedef Documentation

typedef MAP_MANAGER::ENTRY ACE_POSIX_Asynch_Connect::MAP_ENTRY [private]

typedef MAP_MANAGER::ITERATOR ACE_POSIX_Asynch_Connect::MAP_ITERATOR [private]

typedef ACE_Map_Manager<ACE_HANDLE, ACE_POSIX_Asynch_Connect_Result *, ACE_SYNCH_NULL_MUTEX> ACE_POSIX_Asynch_Connect::MAP_MANAGER [private]

---

Constructor & Destructor Documentation

ACE_POSIX_Asynch_Connect::ACE_POSIX_Asynch_Connect (  ACE_POSIX_Proactor *    posix_proactor )

Constructor.

ACE_POSIX_Asynch_Connect::~ACE_POSIX_Asynch_Connect (  void    )  [virtual]

Destructor.

---

Member Function Documentation

int ACE_POSIX_Asynch_Connect::cancel (  void    )  [virtual]

Cancel all pending pseudo-asynchronus requests Behavior as usual AIO request Reimplemented from ACE_POSIX_Asynch_Operation.

int ACE_POSIX_Asynch_Connect::cancel_uncompleted (  int    flg_notify, ACE_Handle_Set &    set )  [private]

Cancel uncompleted connect operations. flg_notify Indicates whether or not we should send notification about canceled accepts. If this is 0, don't send notifications about canceled connects. If 1, notify user about canceled connects according POSIX standards we should receive notifications on canceled AIO requests.

int ACE_POSIX_Asynch_Connect::close (  void    )

Close performs cancellation of all pending requests.

int ACE_POSIX_Asynch_Connect::connect (  ACE_HANDLE    connect_handle, const ACE_Addr &    remote_sap, const ACE_Addr &    local_sap, int    reuse_addr, const void *    act, int    priority, int    signal_number = 0 )  [virtual]

This starts off an asynchronous connect. connect_handle will be used for the connect call. If ACE_INVALID_HANDLE is specified, a new handle will be created. Implements ACE_Asynch_Connect_Impl.

int ACE_POSIX_Asynch_Connect::connect_i (  ACE_POSIX_Asynch_Connect_Result *    result, const ACE_Addr &    remote_sap, const ACE_Addr &    local_sap, int    reuse_addr )  [private]

ACE_HANDLE ACE_POSIX_Asynch_Connect::get_handle (  void    )  const [virtual]

virtual from ACE_Event_Handler Reimplemented from ACE_Event_Handler.

int ACE_POSIX_Asynch_Connect::handle_close (  ACE_HANDLE    handle, ACE_Reactor_Mask    close_mask )  [virtual]

virtual from ACE_Event_Handler Reimplemented from ACE_Event_Handler.

int ACE_POSIX_Asynch_Connect::handle_exception (  ACE_HANDLE    handle )  [virtual]

Called when an exceptional events occur (e.g., SIGURG). Reimplemented from ACE_Event_Handler.

int ACE_POSIX_Asynch_Connect::handle_input (  ACE_HANDLE    handle )  [virtual]

virtual from ACE_Event_Handler Called when accept event comes up on <listen_hanlde> Reimplemented from ACE_Event_Handler.

int ACE_POSIX_Asynch_Connect::handle_output (  ACE_HANDLE    handle )  [virtual]

Called when output events are possible (e.g., when flow control abates or non-blocking connection completes). Reimplemented from ACE_Event_Handler.

int ACE_POSIX_Asynch_Connect::open (  ACE_Handler &    handler, ACE_HANDLE    handle, const void *    completion_key, ACE_Proactor *    proactor = 0 )  [virtual]

This belongs to ACE_POSIX_Asynch_Operation. We forward this call to that method. We have put this here to avoid the compiler warnings. Reimplemented from ACE_POSIX_Asynch_Operation.

int ACE_POSIX_Asynch_Connect::post_result (  ACE_POSIX_Asynch_Connect_Result *    result, int    flg_post )  [private]

void ACE_POSIX_Asynch_Connect::set_handle (  ACE_HANDLE    handle )  [virtual]

virtual from ACE_Event_Handler Reimplemented from ACE_Event_Handler.

---

Member Data Documentation

int ACE_POSIX_Asynch_Connect::flg_open_ [private]

ACE_SYNCH_MUTEX ACE_POSIX_Asynch_Connect::lock_ [private]

The lock to protect the result queue which is shared. The queue is updated by main thread in the register function call and through the auxillary thread in the deregister fun. So let us mutex it.

MAP_MANAGER ACE_POSIX_Asynch_Connect::result_map_ [private]

Map of Result pointers that correspond to all the <accept>'s pending.

int ACE_POSIX_Asynch_Connect::task_lock_count_ [private]

to prevent ACE_Asynch_Pseudo_Task from deletion while we make a call to the ACE_Asynch_Pseudo_Task This is extra cost !!! we could avoid them if all applications will follow the rule: Proactor should be deleted only after deletion all AsynchOperation objects connected with it

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/POSIX_Asynch_IO.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/POSIX_Asynch_IO.cpp

---
