ACE_POSIX_AIOCB_Proactor Class Reference

This Proactor makes use of Asynchronous I/O Control Blocks (AIOCB) to notify/get the completion status of the <aio_> operations issued. More...

#include <POSIX_Proactor.h>

Inheritance diagram for ACE_POSIX_AIOCB_Proactor:

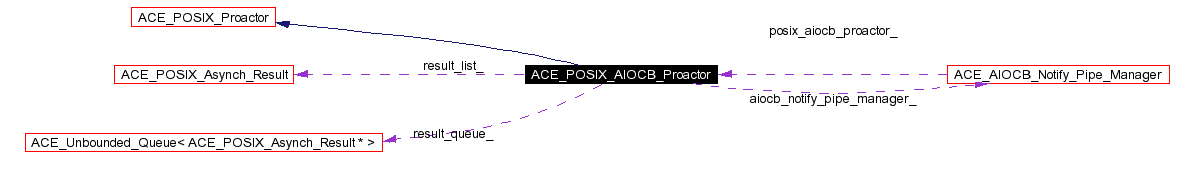

[legend]Collaboration diagram for ACE_POSIX_AIOCB_Proactor:

[legend]List of all members.

Public Methods
	ACE_POSIX_AIOCB_Proactor (size_t nmaxop=ACE_AIO_DEFAULT_SIZE)
virtual Proactor_Type	get_impl_type (void)
virtual	~ACE_POSIX_AIOCB_Proactor (void)
	Destructor.
virtual int	close (void)
	Close down the Proactor.
virtual int	handle_events (ACE_Time_Value &wait_time)
virtual int	handle_events (void)
virtual int	post_completion (ACE_POSIX_Asynch_Result *result)
	Post a result to the completion port of the Proactor.
virtual int	start_aio (ACE_POSIX_Asynch_Result *result, ACE_POSIX_Proactor::Opcode op)
virtual int	cancel_aio (ACE_HANDLE h)
Protected Methods
	ACE_POSIX_AIOCB_Proactor (size_t nmaxop, ACE_POSIX_Proactor::Proactor_Type ptype)
virtual int	get_result_status (ACE_POSIX_Asynch_Result *asynch_result, int &error_status, size_t &transfer_count)
int	create_result_aiocb_list (void)
	Create aiocb list.
int	delete_result_aiocb_list (void)
void	create_notify_manager (void)
void	delete_notify_manager (void)
void	check_max_aio_num (void)
void	set_notify_handle (ACE_HANDLE h)
	To identify requests from Notify_Pipe_Manager.
int	handle_events_i (u_long milli_seconds)
int	start_deferred_aio (void)
	Start deferred AIO if necessary.
virtual int	cancel_aiocb (ACE_POSIX_Asynch_Result *result)
	Cancel running or deferred AIO.
ACE_POSIX_Asynch_Result *	find_completed_aio (int &error_status, size_t &transfer_count, size_t &index, size_t &count)
	Extract the results of aio.
virtual ssize_t	allocate_aio_slot (ACE_POSIX_Asynch_Result *result)
	Find free slot to store result and aiocb pointer.
virtual int	start_aio_i (ACE_POSIX_Asynch_Result *result)
	Initiate an aio operation.
virtual int	notify_completion (int sig_num)
int	putq_result (ACE_POSIX_Asynch_Result *result)
	Put "post_completed" result into the internal queue.
ACE_POSIX_Asynch_Result *	getq_result (void)
	Get "post_completed" result from the internal queue.
int	clear_result_queue (void)
	Clear the internal results queue.
int	process_result_queue (void)
	Process the internal results queue.
Protected Attributes
ACE_AIOCB_Notify_Pipe_Manager *	aiocb_notify_pipe_manager_
aiocb **	aiocb_list_
ACE_POSIX_Asynch_Result **	result_list_
size_t	aiocb_list_max_size_
	To maintain the maximum size of the array (list).
size_t	aiocb_list_cur_size_
	To maintain the current size of the array (list).
ACE_SYNCH_MUTEX	mutex_
	Mutex to protect work with lists.
ACE_HANDLE	notify_pipe_read_handle_
size_t	num_deferred_aiocb_
size_t	num_started_aio_
	Number active,i.e. running requests.
ACE_Unbounded_Queue< ACE_POSIX_Asynch_Result * >	result_queue_
	Queue which keeps "post_completed" ACE_POSIX_Asynch_Result's.
Friends
class	ACE_AIOCB_Notify_Pipe_Manager
	Handler needs to call application specific code.
class	ACE_POSIX_Asynch_Operation
class	ACE_POSIX_Asynch_Accept
class	ACE_POSIX_Asynch_Connect

---

Detailed Description

This Proactor makes use of Asynchronous I/O Control Blocks (AIOCB) to notify/get the completion status of the <aio_> operations issued.

---

Constructor & Destructor Documentation

ACE_POSIX_AIOCB_Proactor::ACE_POSIX_AIOCB_Proactor (  size_t    nmaxop = ACE_AIO_DEFAULT_SIZE )

Constructor defines max number asynchronous operations which can be started at the same time

ACE_POSIX_AIOCB_Proactor::~ACE_POSIX_AIOCB_Proactor (  void    )  [virtual]

Destructor.

ACE_POSIX_AIOCB_Proactor::ACE_POSIX_AIOCB_Proactor (  size_t    nmaxop, ACE_POSIX_Proactor::Proactor_Type    ptype )  [protected]

Special constructor for ACE_SUN_Proactor and ACE_POSIX_SIG_Proactor

---

Member Function Documentation

ssize_t ACE_POSIX_AIOCB_Proactor::allocate_aio_slot (  ACE_POSIX_Asynch_Result *    result )  [protected, virtual]

Find free slot to store result and aiocb pointer. Reimplemented in ACE_POSIX_CB_Proactor.

int ACE_POSIX_AIOCB_Proactor::cancel_aio (  ACE_HANDLE    h )  [virtual]

This method should be called from ACE_POSIX_Asynch_Operation::cancel() instead of usual aio_cancel. For all deferred AIO requests with handle "h" it removes its from the lists and notifies user. For all running AIO requests with handle "h" it calls aio_cancel. According to the POSIX standards we will receive ECANCELED for all aio_canceled AIO requests later on return from aio_suspend Implements ACE_POSIX_Proactor.

int ACE_POSIX_AIOCB_Proactor::cancel_aiocb (  ACE_POSIX_Asynch_Result *    result )  [protected, virtual]

Cancel running or deferred AIO.

void ACE_POSIX_AIOCB_Proactor::check_max_aio_num (  void    )  [protected]

Define the maximum number of asynchronous I/O requests for the current OS

int ACE_POSIX_AIOCB_Proactor::clear_result_queue (  void    )  [protected]

Clear the internal results queue.

int ACE_POSIX_AIOCB_Proactor::close (  void    )  [virtual]

Close down the Proactor. Reimplemented from ACE_POSIX_Proactor.

void ACE_POSIX_AIOCB_Proactor::create_notify_manager (  void    )  [protected]

Call these methods from derived class when virtual table is built.

int ACE_POSIX_AIOCB_Proactor::create_result_aiocb_list (  void    )  [protected]

Create aiocb list.

void ACE_POSIX_AIOCB_Proactor::delete_notify_manager (  void    )  [protected]

int ACE_POSIX_AIOCB_Proactor::delete_result_aiocb_list (  void    )  [protected]

Call this method from derived class when virtual table is built.

ACE_POSIX_Asynch_Result * ACE_POSIX_AIOCB_Proactor::find_completed_aio (  int &    error_status, size_t &    transfer_count, size_t &    index, size_t &    count )  [protected]

Extract the results of aio.

ACE_INLINE ACE_POSIX_Proactor::Proactor_Type ACE_POSIX_AIOCB_Proactor::get_impl_type (  void    )  [virtual]

Reimplemented from ACE_POSIX_Proactor. Reimplemented in ACE_POSIX_CB_Proactor.

int ACE_POSIX_AIOCB_Proactor::get_result_status (  ACE_POSIX_Asynch_Result *    asynch_result, int &    error_status, size_t &    transfer_count )  [protected, virtual]

Check AIO for completion, error and result status Return: 1 - AIO completed , 0 - not completed yet

ACE_POSIX_Asynch_Result * ACE_POSIX_AIOCB_Proactor::getq_result (  void    )  [protected]

Get "post_completed" result from the internal queue.

int ACE_POSIX_AIOCB_Proactor::handle_events (  void    )  [virtual]

Block indefinitely until at least one event is dispatched. Dispatch a single set of events. If <wait_time> elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly. Implements ACE_POSIX_Proactor. Reimplemented in ACE_POSIX_CB_Proactor.

int ACE_POSIX_AIOCB_Proactor::handle_events (  ACE_Time_Value &    wait_time )  [virtual]

Dispatch a single set of events. If <wait_time> elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly. Implements ACE_POSIX_Proactor. Reimplemented in ACE_POSIX_CB_Proactor.

int ACE_POSIX_AIOCB_Proactor::handle_events_i (  u_long    milli_seconds )  [protected]

Dispatch a single set of events. If <milli_seconds> elapses before any events occur, return 0. Return 1 if a completion dispatched. Return -1 on errors. Reimplemented in ACE_POSIX_CB_Proactor.

int ACE_POSIX_AIOCB_Proactor::notify_completion (  int    sig_num )  [protected, virtual]

Notify queue of "post_completed" ACE_POSIX_Asynch_Results called from post_completion method Reimplemented in ACE_POSIX_CB_Proactor.

int ACE_POSIX_AIOCB_Proactor::post_completion (  ACE_POSIX_Asynch_Result *    result )  [virtual]

Post a result to the completion port of the Proactor. Implements ACE_POSIX_Proactor.

int ACE_POSIX_AIOCB_Proactor::process_result_queue (  void    )  [protected]

Process the internal results queue.

int ACE_POSIX_AIOCB_Proactor::putq_result (  ACE_POSIX_Asynch_Result *    result )  [protected]

Put "post_completed" result into the internal queue.

void ACE_POSIX_AIOCB_Proactor::set_notify_handle (  ACE_HANDLE    h )  [protected]

To identify requests from Notify_Pipe_Manager.

int ACE_POSIX_AIOCB_Proactor::start_aio (  ACE_POSIX_Asynch_Result *    result, ACE_POSIX_Proactor::Opcode    op )  [virtual]

int ACE_POSIX_AIOCB_Proactor::start_aio_i (  ACE_POSIX_Asynch_Result *    result )  [protected, virtual]

Initiate an aio operation.

int ACE_POSIX_AIOCB_Proactor::start_deferred_aio (  void    )  [protected]

Start deferred AIO if necessary.

---

Friends And Related Function Documentation

friend class ACE_AIOCB_Notify_Pipe_Manager [friend]

Handler needs to call application specific code.

friend class ACE_POSIX_Asynch_Accept [friend]

friend class ACE_POSIX_Asynch_Connect [friend]

friend class ACE_POSIX_Asynch_Operation [friend]

This class does the registering of Asynch Operations with the Proactor which is necessary in the AIOCB strategy.

---

Member Data Documentation

aiocb** ACE_POSIX_AIOCB_Proactor::aiocb_list_ [protected]

Use a dynamically allocated array to keep track of all the aio's issued currently.

size_t ACE_POSIX_AIOCB_Proactor::aiocb_list_cur_size_ [protected]

To maintain the current size of the array (list).

size_t ACE_POSIX_AIOCB_Proactor::aiocb_list_max_size_ [protected]

To maintain the maximum size of the array (list).

ACE_AIOCB_Notify_Pipe_Manager* ACE_POSIX_AIOCB_Proactor::aiocb_notify_pipe_manager_ [protected]

This class takes care of doing <accept> when we use AIO_CONTROL_BLOCKS strategy.

ACE_SYNCH_MUTEX ACE_POSIX_AIOCB_Proactor::mutex_ [protected]

Mutex to protect work with lists.

ACE_HANDLE ACE_POSIX_AIOCB_Proactor::notify_pipe_read_handle_ [protected]

The purpose of this member is only to identify asynchronous request from NotifyManager. We will reserve for it always slot 0 in the list of aiocb's to be sure that don't lose notifications.

size_t ACE_POSIX_AIOCB_Proactor::num_deferred_aiocb_ [protected]

Number of ACE_POSIX_Asynch_Result's waiting for start i.e. deferred AIOs

size_t ACE_POSIX_AIOCB_Proactor::num_started_aio_ [protected]

Number active,i.e. running requests.

ACE_POSIX_Asynch_Result** ACE_POSIX_AIOCB_Proactor::result_list_ [protected]

ACE_Unbounded_Queue<ACE_POSIX_Asynch_Result *> ACE_POSIX_AIOCB_Proactor::result_queue_ [protected]

Queue which keeps "post_completed" ACE_POSIX_Asynch_Result's.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/POSIX_Proactor.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/POSIX_Proactor.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/POSIX_Proactor.i

---
