ACE_Lock_Adapter< ACE_LOCKING_MECHANISM > Class Template Reference

This is an adapter that allows applications to transparently combine the <ACE_Lock> abstract base class (which contains pure virtual methods) with any of the other concrete ACE synchronization classes (e.g., <ACE_Mutex>, <ACE_Semaphore>, <ACE_RW_Mutex>, etc.). More...

#include <Lock_Adapter_T.h>

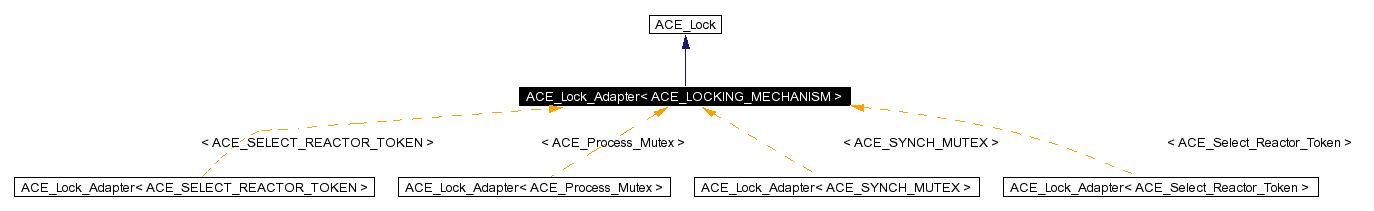

Inheritance diagram for ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >:

[legend]Collaboration diagram for ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >:

[legend]List of all members.

Public Types
typedef ACE_LOCKING_MECHANISM	ACE_LOCK
Public Methods
	ACE_Lock_Adapter (ACE_LOCKING_MECHANISM &lock)
	Constructor. All locking requests will be forwarded to <lock>.
	ACE_Lock_Adapter (void)
virtual	~ACE_Lock_Adapter (void)
virtual int	acquire (void)
	Block the thread until the lock is acquired.
virtual int	tryacquire (void)
	Conditionally acquire the lock (i.e., won't block).
virtual int	release (void)
	Release the lock.
virtual int	acquire_read (void)
virtual int	acquire_write (void)
virtual int	tryacquire_read (void)
virtual int	tryacquire_write (void)
virtual int	tryacquire_write_upgrade (void)
virtual int	remove (void)
	Explicitly destroy the lock.
Private Attributes
ACE_LOCKING_MECHANISM *	lock_
	The concrete locking mechanism that all the methods delegate to.
int	delete_lock_

---

Detailed Description

template<class ACE_LOCKING_MECHANISM>
class ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >

This is an adapter that allows applications to transparently combine the <ACE_Lock> abstract base class (which contains pure virtual methods) with any of the other concrete ACE synchronization classes (e.g., <ACE_Mutex>, <ACE_Semaphore>, <ACE_RW_Mutex>, etc.).

This class uses a form of the Adapter pattern.

---

Member Typedef Documentation

template<class ACE_LOCKING_MECHANISM> typedef ACE_LOCKING_MECHANISM ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_LOCK

---

Constructor & Destructor Documentation

template<class ACE_LOCKING_MECHANISM> ACE_INLINE ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_Lock_Adapter (  ACE_LOCKING_MECHANISM &    lock )

Constructor. All locking requests will be forwarded to <lock>.

template<class ACE_LOCKING_MECHANISM> ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_Lock_Adapter (  void    )

Constructor. Since no lock is provided by the user, one will be created internally.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::~ACE_Lock_Adapter (  void    )  [virtual]

Destructor. If <lock_> was not passed in by the user, it will be deleted.

---

Member Function Documentation

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire (  void    )  [virtual]

Block the thread until the lock is acquired. Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_read (  void    )  [virtual]

Block until the thread acquires a read lock. If the locking mechanism doesn't support read locks then this just calls <acquire>. Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_write (  void    )  [virtual]

Block until the thread acquires a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>. Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::release (  void    )  [virtual]

Release the lock. Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::remove (  void    )  [virtual]

Explicitly destroy the lock. Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire (  void    )  [virtual]

Conditionally acquire the lock (i.e., won't block). Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_read (  void    )  [virtual]

Conditionally acquire a read lock. If the locking mechanism doesn't support read locks then this just calls <acquire>. Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write (  void    )  [virtual]

Conditionally acquire a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>. Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM> ACE_INLINE int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write_upgrade (  void    )  [virtual]

Conditionally try to upgrade a lock held for read to a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>. Returns 0 on success, -1 on failure. Implements ACE_Lock.

---

Member Data Documentation

template<class ACE_LOCKING_MECHANISM> int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::delete_lock_ [private]

This flag keep track of whether we are responsible for deleting the lock

template<class ACE_LOCKING_MECHANISM> ACE_LOCKING_MECHANISM* ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_ [private]

The concrete locking mechanism that all the methods delegate to.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Lock_Adapter_T.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Lock_Adapter_T.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Lock_Adapter_T.inl

---
