ACE_Fixed_Set< T, ACE_SIZE > Class Template Reference

Implement a simple unordered set of <T> with maximum <ACE_SIZE>. More...

#include <Containers_T.h>

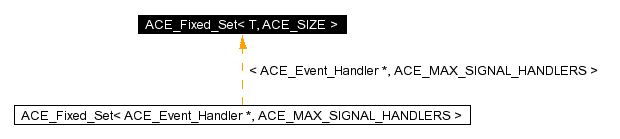

Inheritance diagram for ACE_Fixed_Set< T, ACE_SIZE >:

[legend]Collaboration diagram for ACE_Fixed_Set< T, ACE_SIZE >:

[legend]List of all members.

Public Types
typedef ACE_Fixed_Set_Iterator< T, ACE_SIZE >	ITERATOR
typedef ACE_Fixed_Set_Iterator< T, ACE_SIZE >	CONST_ITERATOR
Public Methods
	ACE_Fixed_Set (void)
	Default Constructor.
	ACE_Fixed_Set (const ACE_Fixed_Set< T, ACE_SIZE > &)
	Copy constructor.
void	operator= (const ACE_Fixed_Set< T, ACE_SIZE > &)
	Assignment operator.
	~ACE_Fixed_Set (void)
	Destructor.
int	is_empty (void) const
	Returns 1 if the container is empty, otherwise returns 0.
int	is_full (void) const
	Returns 1 if the container is full, otherwise returns 0.
int	insert (const T &new_item)
	Linear time insertion of an item unique to the set.
int	remove (const T &item)
	Linear time removal operation of an item.
int	find (const T &item) const
	Finds if item occurs in the set. Returns 0 if finds, else -1.
size_t	size (void) const
	Size of the set.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Attributes
struct {
T   item_
int   is_free_
}	search_structure_ [ACE_SIZE]
	Holds the contents of the set.
size_t	cur_size_
	Current size of the set.
size_t	max_size_
	Maximum size of the set.
Friends
class	ACE_Fixed_Set_Iterator< T, ACE_SIZE >
class	ACE_Fixed_Set_Const_Iterator< T, ACE_SIZE >

---

Detailed Description

template<class T, size_t ACE_SIZE>
class ACE_Fixed_Set< T, ACE_SIZE >

Implement a simple unordered set of <T> with maximum <ACE_SIZE>.

This implementation of an unordered set uses a fixed array. It does not allow duplicate members. The set provides linear insertion/deletion operations.

Requirements and Performance Characteristics

• Internal Structure Fixed array
• Duplicates allowed? No
• Random access allowed? No
• Search speed Linear
• Insert/replace speed Linear
• Iterator still valid after change to container? Yes
• Frees memory for removed elements? No
• Items inserted by Value
• Requirements for contained type
  1. Default constructor
  2. Copy constructor
  3. operator=
  4. operator==

---

Member Typedef Documentation

template<class T, size_t ACE_SIZE> typedef ACE_Fixed_Set_Iterator<T, ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::CONST_ITERATOR

template<class T, size_t ACE_SIZE> typedef ACE_Fixed_Set_Iterator<T, ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::ITERATOR

---

Constructor & Destructor Documentation

template<class T, size_t ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::ACE_Fixed_Set (  void    )

Default Constructor. Creates an empy set

template<class T, size_t ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::ACE_Fixed_Set (  const ACE_Fixed_Set< T, ACE_SIZE > &    )

Copy constructor. Initializes a set to be a copy of the set parameter.

template<class T, size_t ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::~ACE_Fixed_Set (  void    )

Destructor. Destroys a set.

---

Member Function Documentation

template<class T, size_t ACE_SIZE> void ACE_Fixed_Set< T, ACE_SIZE >::dump (  void    )  const

Dump the state of an object.

template<class T, size_t ACE_SIZE> int ACE_Fixed_Set< T, ACE_SIZE >::find (  const T &    item )  const

Finds if item occurs in the set. Returns 0 if finds, else -1. Performs a linear find operation for the specified item.

template<class T, size_t ACE_SIZE> int ACE_Fixed_Set< T, ACE_SIZE >::insert (  const T &    new_item )

Linear time insertion of an item unique to the set. Insert new_item into the set (doesn't allow duplicates). Returns -1 if failures occur, 1 if item is already present, else 0.

template<class T, size_t ACE_SIZE> ACE_INLINE int ACE_Fixed_Set< T, ACE_SIZE >::is_empty (  void    )  const

Returns 1 if the container is empty, otherwise returns 0. Performs constant time check to determine if a set is empty.

template<class T, size_t ACE_SIZE> ACE_INLINE int ACE_Fixed_Set< T, ACE_SIZE >::is_full (  void    )  const

Returns 1 if the container is full, otherwise returns 0. Performs a constant time check to see if the set is full.

template<class T, size_t ACE_SIZE> void ACE_Fixed_Set< T, ACE_SIZE >::operator= (  const ACE_Fixed_Set< T, ACE_SIZE > &    )

Assignment operator. Deep copy of one set to another.

template<class T, size_t ACE_SIZE> int ACE_Fixed_Set< T, ACE_SIZE >::remove (  const T &    item )

Linear time removal operation of an item. Remove first occurrence of <item> from the set. Returns 0 if it removes the item, -1 if it can't find the item, and -1 if a failure occurs. Removal doesn't reclaim memory for the item.

template<class T, size_t ACE_SIZE> size_t ACE_Fixed_Set< T, ACE_SIZE >::size (  void    )  const

Size of the set. Returns the current size of the set.

---

Friends And Related Function Documentation

template<class T, size_t ACE_SIZE> friend class ACE_Fixed_Set_Const_Iterator< T, ACE_SIZE > [friend]

template<class T, size_t ACE_SIZE> friend class ACE_Fixed_Set_Iterator< T, ACE_SIZE > [friend]

---

Member Data Documentation

template<class T, size_t ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class T, size_t ACE_SIZE> size_t ACE_Fixed_Set< T, ACE_SIZE >::cur_size_ [private]

Current size of the set.

template<class T, size_t ACE_SIZE> int ACE_Fixed_Set< T, ACE_SIZE >::is_free_ [private]

Keeps track of whether this item is in use or not.

template<class T, size_t ACE_SIZE> T ACE_Fixed_Set< T, ACE_SIZE >::item_ [private]

Item in the set.

template<class T, size_t ACE_SIZE> size_t ACE_Fixed_Set< T, ACE_SIZE >::max_size_ [private]

Maximum size of the set.

struct { ... } ACE_Fixed_Set< T, ACE_SIZE >::search_structure_[ACE_SIZE] [private]

Holds the contents of the set.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Containers_T.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Containers_T.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Containers_T.i

---
