ACE_DLL_Singleton_T< TYPE, ACE_LOCK > Class Template Reference

Same as ACE_Singleton, except that it registers for destruction with the ACE_Framework_Repository instead of with the ACE_Object_Manager directly. More...

#include <Singleton.h>

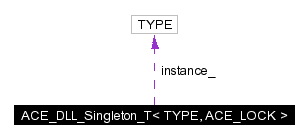

Collaboration diagram for ACE_DLL_Singleton_T< TYPE, ACE_LOCK >:

Collaboration graph
[legend]
List of all members.

Public Methods

const ACE_TCHARdll_name (void)
const ACE_TCHARname (void)

Static Public Methods

TYPE * instance (void)
 Global access point to the Singleton.

void close (void)
 Explicitly delete the Singleton instance.

void close_singleton (void)
void dump (void)
 Dump the state of the object.


Protected Methods

 ACE_DLL_Singleton_T (void)
 Default constructor.

 ~ACE_DLL_Singleton_T (void)
 Destructor.


Static Protected Methods

ACE_DLL_Singleton_T< TYPE,
ACE_LOCK > *&
instance_i (void)
 Get pointer to the singleton instance.


Protected Attributes

TYPE instance_
 Contained instance.


Static Protected Attributes

ACE_DLL_Singleton_T< TYPE,
ACE_LOCK > *
singleton_ = 0
 Pointer to the Singleton instance.


Detailed Description

template<class TYPE, class ACE_LOCK>
class ACE_DLL_Singleton_T< TYPE, ACE_LOCK >

Same as ACE_Singleton, except that it registers for destruction with the ACE_Framework_Repository instead of with the ACE_Object_Manager directly.

This version of ACE_Singleton should be used for singletons that live in a dll loaded either directly by ACE_DLL or indirectly by the ACE Service Configuration framework. Whenever ACE_DLL is ready to actually unload the dll, ACE_DLL_Singleton based dlls associated with that dll will be destroyed first. In fact, any singleton can safely use ACE_DLL_Singleton, even those that don't live in dlls. In that case, the singleton will be destroyed at normal program shutdown.

The only additional requirement is that the contained class export name() and dll_name() methods. See ACE_DLL_Singleton_Adapter_T below for a convenient example of how to satisfy this requirement for the dll_name().

Usage is the same as for ACE_Singleton, but note that if you you declare a friend, the friend class must still be an *ACE_Singleton*<T, [ACE_LOCK]>, not an ACE_Unmanaged_Singleton.


Constructor & Destructor Documentation

template<class TYPE, class ACE_LOCK>
ACE_INLINE ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::ACE_DLL_Singleton_T void    [protected]


Default constructor.

template<class TYPE, class ACE_LOCK>
ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::~ACE_DLL_Singleton_T void    [protected]


Destructor.


Member Function Documentation

template<class TYPE, class ACE_LOCK>
void ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::close void    [static]


Explicitly delete the Singleton instance.

template<class TYPE, class ACE_LOCK>
void ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::close_singleton void    [static]


template<class TYPE, class ACE_LOCK>
const ACE_TCHAR * ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::dll_name void


template<class TYPE, class ACE_LOCK>
void ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::dump void    [static]


Dump the state of the object.

template<class TYPE, class ACE_LOCK>
TYPE * ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::instance void    [static]


Global access point to the Singleton.

template<class TYPE, class ACE_LOCK>
ACE_DLL_Singleton_T< TYPE, ACE_LOCK > *& ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::instance_i void    [static, protected]


Get pointer to the singleton instance.

template<class TYPE, class ACE_LOCK>
const ACE_TCHAR * ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::name void



Member Data Documentation

template<class TYPE, class ACE_LOCK>
TYPE ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::instance_ [protected]


Contained instance.

template<class TYPE, class ACE_LOCK>
ACE_DLL_Singleton_T< TYPE, ACE_LOCK > * ACE_DLL_Singleton_T< TYPE, ACE_LOCK >::singleton_ = 0 [static, protected]


Pointer to the Singleton instance.


The documentation for this class was generated from the following files:
