ACE_Data_Block Class Reference

Stores the data payload that is accessed via one or more <ACE_Message_Block>s. More...

#include <Message_Block.h>

Inheritance diagram for ACE_Data_Block:

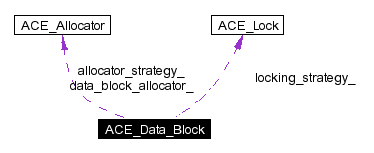

[legend]Collaboration diagram for ACE_Data_Block:

[legend]List of all members.

Public Methods
	ACE_Data_Block (void)
	Default "do-nothing" constructor.
	ACE_Data_Block (size_t size, ACE_Message_Block::ACE_Message_Type msg_type, const char *msg_data, ACE_Allocator *allocator_strategy, ACE_Lock *locking_strategy, ACE_Message_Block::Message_Flags flags, ACE_Allocator *data_block_allocator)
	Initialize.
virtual	~ACE_Data_Block (void)
	Delete all the resources held in the message.
ACE_Message_Block::ACE_Message_Type	msg_type (void) const
	Get type of the message.
void	msg_type (ACE_Message_Block::ACE_Message_Type type)
	Set type of the message.
char *	base (void) const
	Get message data pointer.
void	base (char *data, size_t size, ACE_Message_Block::Message_Flags mflags=ACE_Message_Block::DONT_DELETE)
	Set message data pointer (doesn't reallocate).
char *	end (void) const
	Return a pointer to 1 past the end of the allocated data in a message.
char *	mark (void) const
size_t	size (void) const
int	size (size_t length)
size_t	capacity (void) const
	Get the total amount of allocated space.
virtual ACE_Data_Block *	clone (ACE_Message_Block::Message_Flags mask=0) const
virtual ACE_Data_Block *	clone_nocopy (ACE_Message_Block::Message_Flags mask=0) const
ACE_Data_Block *	duplicate (void)
	Return a "shallow" copy that increments our reference count by 1.
ACE_Data_Block *	release (ACE_Lock *lock=0)
ACE_Message_Block::Message_Flags	set_flags (ACE_Message_Block::Message_Flags more_flags)
ACE_Message_Block::Message_Flags	clr_flags (ACE_Message_Block::Message_Flags less_flags)
ACE_Message_Block::Message_Flags	flags (void) const
	Get the current message flags.
ACE_Allocator *	allocator_strategy (void) const
	Obtain the allocator strategy.
ACE_Lock *	locking_strategy (void)
	Get the locking strategy.
ACE_Lock *	locking_strategy (ACE_Lock *)
	Set a new locking strategy and return the hold one.
void	dump (void) const
	Dump the state of an object.
int	reference_count (void) const
	Get the current reference count.
ACE_Allocator *	data_block_allocator (void) const
	Get the allocator used to create this object.
Protected Methods
ACE_Data_Block *	release_i (void)
	Internal release implementation.
ACE_Data_Block *	release_no_delete (ACE_Lock *lock)
Protected Attributes
ACE_Message_Block::ACE_Message_Type	type_
	Type of message.
size_t	cur_size_
	Current size of message block.
size_t	max_size_
	Total size of buffer.
ACE_Message_Block::Message_Flags	flags_
	Misc flags (e.g., DONT_DELETE and USER_FLAGS).
char *	base_
	Pointer To beginning of message payload.
ACE_Allocator *	allocator_strategy_
ACE_Lock *	locking_strategy_
int	reference_count_
ACE_Allocator *	data_block_allocator_
	The allocator use to destroy ourselves.
Private Methods
ACE_Data_Block &	operator= (const ACE_Data_Block &)
	ACE_Data_Block (const ACE_Data_Block &)
Friends
class	ACE_Message_Block

---

Detailed Description

Stores the data payload that is accessed via one or more <ACE_Message_Block>s.

This data structure is reference counted to maximize sharing. It also contains the <locking_strategy_> (which protects the reference count from race conditions in concurrent programs) and the <allocation_strategy_> (which determines what memory pool is used to allocate the memory).

---

Constructor & Destructor Documentation

ACE_Data_Block::ACE_Data_Block (  void    )

Default "do-nothing" constructor.

ACE_Data_Block::ACE_Data_Block (  size_t    size, ACE_Message_Block::ACE_Message_Type    msg_type, const char *    msg_data, ACE_Allocator *    allocator_strategy, ACE_Lock *    locking_strategy, ACE_Message_Block::Message_Flags    flags, ACE_Allocator *    data_block_allocator )

Initialize.

ACE_Data_Block::~ACE_Data_Block (  void    )  [virtual]

Delete all the resources held in the message.

ACE_Data_Block::ACE_Data_Block (  const ACE_Data_Block &    )  [private]

---

Member Function Documentation

ACE_INLINE ACE_Allocator * ACE_Data_Block::allocator_strategy (  void    )  const

Obtain the allocator strategy.

void ACE_Data_Block::base (  char *    data, size_t    size, ACE_Message_Block::Message_Flags    mflags = ACE_Message_Block::DONT_DELETE )

Set message data pointer (doesn't reallocate).

ACE_INLINE char * ACE_Data_Block::base (  void    )  const

Get message data pointer.

ACE_INLINE size_t ACE_Data_Block::capacity (  void    )  const

Get the total amount of allocated space.

ACE_Data_Block * ACE_Data_Block::clone (  ACE_Message_Block::Message_Flags    mask = 0 )  const [virtual]

Return an exact "deep copy" of the message, i.e., create fresh new copies of all the Data_Blocks and continuations. Notice that Data_Blocks can act as "Prototypes", i.e. derived classes can override this method and create instances of themselves.

ACE_Data_Block * ACE_Data_Block::clone_nocopy (  ACE_Message_Block::Message_Flags    mask = 0 )  const [virtual]

As clone above, but it does not copy the contents of the buffer, i.e., create a new Data_Block of the same dynamic type, with the same allocator, locking_strategy, and with the same amount of storage available but the buffer is unitialized. Reimplemented in ACE_Locked_Data_Block< ACE_LOCK >.

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Data_Block::clr_flags (  ACE_Message_Block::Message_Flags    less_flags )

Clear the message flag bits specified in <less_flags> and return the new value.

ACE_INLINE ACE_Allocator * ACE_Data_Block::data_block_allocator (  void    )  const

Get the allocator used to create this object.

void ACE_Data_Block::dump (  void    )  const

Dump the state of an object.

ACE_Data_Block * ACE_Data_Block::duplicate (  void    )

Return a "shallow" copy that increments our reference count by 1.

ACE_INLINE char * ACE_Data_Block::end (  void    )  const

Return a pointer to 1 past the end of the allocated data in a message.

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Data_Block::flags (  void    )  const

Get the current message flags.

ACE_INLINE ACE_Lock * ACE_Data_Block::locking_strategy (  ACE_Lock *    )

Set a new locking strategy and return the hold one.

ACE_INLINE ACE_Lock * ACE_Data_Block::locking_strategy (  void    )

Get the locking strategy.

ACE_INLINE char * ACE_Data_Block::mark (  void    )  const

Return a pointer to 1 past the end of the allotted data in a message. The allotted data may be less than allocated data if <size()> is passed an argument less than <capacity()>.

ACE_INLINE void ACE_Data_Block::msg_type (  ACE_Message_Block::ACE_Message_Type    type )

Set type of the message.

ACE_INLINE ACE_Message_Block::ACE_Message_Type ACE_Data_Block::msg_type (  void    )  const

Get type of the message.

ACE_Data_Block& ACE_Data_Block::operator= (  const ACE_Data_Block &    )  [private]

ACE_INLINE int ACE_Data_Block::reference_count (  void    )  const

Get the current reference count.

ACE_Data_Block * ACE_Data_Block::release (  ACE_Lock *    lock = 0 )

Decrease the shared reference count by 1. If the reference count is > 0 then return this; else if reference count == 0 then delete <this> and <mb> and return 0. Behavior is undefined if reference count < 0.

ACE_Data_Block * ACE_Data_Block::release_i (  void    )  [protected]

Internal release implementation.

ACE_Data_Block * ACE_Data_Block::release_no_delete (  ACE_Lock *    lock )  [protected]

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Data_Block::set_flags (  ACE_Message_Block::Message_Flags    more_flags )

Bitwise-or the <more_flags> into the existing message flags and return the new value.

int ACE_Data_Block::size (  size_t    length )

Set the total amount of space in the message. Returns 0 if successful, else -1.

ACE_INLINE size_t ACE_Data_Block::size (  void    )  const

Get the total amount of allotted space in the message. The amount of allotted space may be less than allocated space.

---

Friends And Related Function Documentation

friend class ACE_Message_Block [friend]

Decrease the reference count, but don't delete the object. Returns 0 if the object should be removed. If <lock> is equal to the locking strategy then we assume that the lock is beign held by the current thread; this is used to release all the data blocks in a chain while holding a single lock.

---

Member Data Documentation

ACE_Allocator* ACE_Data_Block::allocator_strategy_ [protected]

Pointer to the allocator defined for this <ACE_Data_Block>. Note that this pointer is shared by all owners of this <ACE_Data_Block>.

char* ACE_Data_Block::base_ [protected]

Pointer To beginning of message payload.

size_t ACE_Data_Block::cur_size_ [protected]

Current size of message block.

ACE_Allocator* ACE_Data_Block::data_block_allocator_ [protected]

The allocator use to destroy ourselves.

ACE_Message_Block::Message_Flags ACE_Data_Block::flags_ [protected]

Misc flags (e.g., DONT_DELETE and USER_FLAGS).

ACE_Lock* ACE_Data_Block::locking_strategy_ [protected]

Pointer to the locking strategy defined for this <ACE_Data_Block>. This is used to protect regions of code that access shared <ACE_Data_Block> state. Note that this lock is shared by all owners of the <ACE_Data_Block>'s data.

size_t ACE_Data_Block::max_size_ [protected]

Total size of buffer.

int ACE_Data_Block::reference_count_ [protected]

Reference count for this <ACE_Data_Block>, which is used to avoid deep copies (i.e., <clone>). Note that this pointer value is shared by all owners of the <Data_Block>'s data, i.e., all the <ACE_Message_Block>s.

ACE_Message_Block::ACE_Message_Type ACE_Data_Block::type_ [protected]

Type of message.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Message_Block.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Message_Block.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Message_Block.i

---
