ACE_Configuration_Heap Class Reference

The concrete implementation of a allocator based configuration database. More...

#include <Configuration.h>

Inheritance diagram for ACE_Configuration_Heap:

Inheritance graph
[legend]

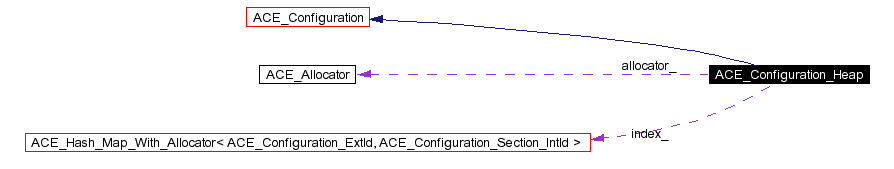

Collaboration diagram for ACE_Configuration_Heap:

Collaboration graph
[legend]
List of all members.

Public Methods

 ACE_Configuration_Heap (void)
 Default ctor.

virtual ~ACE_Configuration_Heap (void)
 Destructor.

int open (const ACE_TCHAR *file_name, void *base_address=ACE_DEFAULT_BASE_ADDR, int default_map_size=ACE_DEFAULT_CONFIG_SECTION_SIZE)
 Opens a configuration based on a file name.

int open (int default_map_size=ACE_DEFAULT_CONFIG_SECTION_SIZE)
 Opens a heap based configuration.

virtual int open_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, int create, ACE_Configuration_Section_Key &result)
virtual int remove_section (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *sub_section, int recursive)
 Removes a named section.

virtual int enumerate_values (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name, VALUETYPE &type)
virtual int enumerate_sections (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name)
virtual int set_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const ACE_TString &value)
 Sets a string-typed value.

virtual int set_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int value)
 Sets a integer-typed value.

virtual int set_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const void *data, size_t length)
 Sets a binary-typed value.

virtual int get_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, ACE_TString &value)
 Gets a string-typed value.

virtual int get_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int &value)
 Gets an integer-typed value.

virtual int get_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, void *&data, size_t &length)
 Gets a binary-typed value.

virtual int find_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, VALUETYPE &type)
virtual int remove_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name)
 Removes the the value <name> from <key>. returns non zero on error.


Private Methods

int open_simple_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, int create, ACE_Configuration_Section_Key &result)
 <sub_section> may not contain path separators

int add_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, ACE_Configuration_Section_Key &result)
 Adds a new section.

int create_index (void)
 Helper for the <open> method.

int create_index_helper (void *buffer)
int value_open_helper (size_t hash_table_size, void *buffer)
int section_open_helper (size_t hash_table_size, void *buffer)
int load_key (const ACE_Configuration_Section_Key &key, ACE_TString &name)
int new_section (const ACE_TString &section, ACE_Configuration_Section_Key &result)
 ACE_Configuration_Heap (const ACE_Configuration_Heap &rhs)
ACE_Configuration_Heap & operator= (const ACE_Configuration_Heap &rhs)

Private Attributes

ACE_Allocatorallocator_
SECTION_MAPindex_
int default_map_size_

Detailed Description

The concrete implementation of a allocator based configuration database.

This class uses ACE's Allocators to manage a memory representation of a configuraiton database. A persistent heap may be used to store configurations persistently

Note: Before using this class you must call one of the open methods.

Todo:
-Need to investigate what happens if memory mapped file gets mapped to a location different than it was created with.


Constructor & Destructor Documentation

ACE_Configuration_Heap::ACE_Configuration_Heap void


Default ctor.

ACE_Configuration_Heap::~ACE_Configuration_Heap void    [virtual]


Destructor.

ACE_Configuration_Heap::ACE_Configuration_Heap const ACE_Configuration_Heap &    rhs [private]



Member Function Documentation

int ACE_Configuration_Heap::add_section const ACE_Configuration_Section_Key   base,
const ACE_TCHAR   sub_section,
ACE_Configuration_Section_Key   result
[private]


Adds a new section.

int ACE_Configuration_Heap::create_index void    [private]


Helper for the <open> method.

int ACE_Configuration_Heap::create_index_helper void *    buffer [private]


Helper for create_index() method: places hash table into an allocated space.

int ACE_Configuration_Heap::enumerate_sections const ACE_Configuration_Section_Key   key,
int    index,
ACE_TString   name
[virtual]


Enumerates through the subsections in a section.

Parameters:
key  Section key to iterate through.
index  Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name  Receives the subsection's name.
Note:
You may not modify the key section while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values:
0  for success, name has a valid name.
1  there are no more subsections in the section.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::enumerate_values const ACE_Configuration_Section_Key   key,
int    index,
ACE_TString   name,
VALUETYPE   type
[virtual]


Enumerates through the values in a section.

Parameters:
key  Section key to iterate through.
index  Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name  Receives the value's name.
type  Receives the value's data type.
Note:
You may not delete or add values while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values:
0  for success, name and type are valid.
1  there are no more values in the section.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::find_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name,
VALUETYPE   type
[virtual]


Retrieves the type of a named configuration value.

Parameters:
key  Configuration section to look up the name in.
name  Name of the configuration value to get the type of.
type  Receives the data type of the named value, if it exists.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::get_binary_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name,
void *&    data,
size_t &    length
[virtual]


Gets a binary-typed value.

Parameters:
key  Configuration section to get the value from.
name  Name of the configuration value to get.
data  Receives a pointer to memory holding the binary data for the value. This method allocates the memory pointed to using operator new[]. The caller is responsible for freeing the memory using operator delete[].
length  Receives the number of bytes in the value.
Return values:
0  for success; caller is responsible for freeing the returned memory.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::get_integer_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name,
u_int &    value
[virtual]


Gets an integer-typed value.

Parameters:
key  Configuration section to get the value from.
name  Name of the configuration value to get.
value  Receives the configuration value if it exists and has type INTEGER.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::get_string_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name,
ACE_TString   value
[virtual]


Gets a string-typed value.

Parameters:
key  Configuration section to get the value from.
name  Name of the configuration value to get.
value  Receives the configuration value if it exists and has type STRING.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::load_key const ACE_Configuration_Section_Key   key,
ACE_TString   name
[private]


int ACE_Configuration_Heap::new_section const ACE_TString   section,
ACE_Configuration_Section_Key   result
[private]


int ACE_Configuration_Heap::open int    default_map_size = ACE_DEFAULT_CONFIG_SECTION_SIZE


Opens a heap based configuration.

int ACE_Configuration_Heap::open const ACE_TCHAR   file_name,
void *    base_address = ACE_DEFAULT_BASE_ADDR,
int    default_map_size = ACE_DEFAULT_CONFIG_SECTION_SIZE


Opens a configuration based on a file name.

int ACE_Configuration_Heap::open_section const ACE_Configuration_Section_Key   base,
const ACE_TCHAR   sub_section,
int    create,
ACE_Configuration_Section_Key   result
[virtual]


Opens a named section in an existing section.

Parameters:
base  Existing section in which to open the named section.
sub_section  Name of the section to open.
create  If zero, the named section must exist. If non-zero, the named section will be created if it does not exist.
result  Reference; receives the section key for the new section.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::open_simple_section const ACE_Configuration_Section_Key   base,
const ACE_TCHAR   sub_section,
int    create,
ACE_Configuration_Section_Key   result
[private]


<sub_section> may not contain path separators

ACE_Configuration_Heap& ACE_Configuration_Heap::operator= const ACE_Configuration_Heap &    rhs [private]


int ACE_Configuration_Heap::remove_section const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   sub_section,
int    recursive
[virtual]


Removes a named section.

Parameters:
key  Section key to remove the named section from.
sub_section  Name of the section to remove.
recursive  If non zero, any subkeys below sub_section are removed as well.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::remove_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name
[virtual]


Removes the the value <name> from <key>. returns non zero on error.

Implements ACE_Configuration.

int ACE_Configuration_Heap::section_open_helper size_t    hash_table_size,
void *    buffer
[private]


int ACE_Configuration_Heap::set_binary_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name,
const void *    data,
size_t    length
[virtual]


Sets a binary-typed value.

Parameters:
key  Configuration section to set the value in.
name  Name of the configuration value to set. If a value with the specified name exists, it is replaced.
data  Pointer to the binary data for the value.
length  Number of bytes for the new value.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::set_integer_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name,
u_int    value
[virtual]


Sets a integer-typed value.

Parameters:
key  Configuration section to set the value in.
name  Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value  The integer to set the configuration value to.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::set_string_value const ACE_Configuration_Section_Key   key,
const ACE_TCHAR   name,
const ACE_TString   value
[virtual]


Sets a string-typed value.

Parameters:
key  Configuration section to set the value in.
name  Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value  The string to set the configuration value to.
Return values:
0  for success.
-1  for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Heap::value_open_helper size_t    hash_table_size,
void *    buffer
[private]



Member Data Documentation

ACE_Allocator* ACE_Configuration_Heap::allocator_ [private]


int ACE_Configuration_Heap::default_map_size_ [private]


SECTION_MAP* ACE_Configuration_Heap::index_ [private]



The documentation for this class was generated from the following files:
Generated on Wed Jan 14 22:42:21 2004 for ACE by doxygen1.2.18
