ACE_Asynch_Write_Dgram_Result_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Dgram::Result class. More...

#include <Asynch_IO_Impl.h>

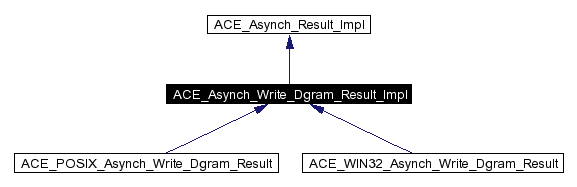

Inheritance diagram for ACE_Asynch_Write_Dgram_Result_Impl:

[legend]Collaboration diagram for ACE_Asynch_Write_Dgram_Result_Impl:

[legend]List of all members.

Public Methods
virtual	~ACE_Asynch_Write_Dgram_Result_Impl (void)
virtual size_t	bytes_to_write (void) const=0
virtual ACE_Message_Block *	message_block (void) const=0
	Message block which contains the sent data.
virtual int	flags (void) const=0
	The flags using in the write.
virtual ACE_HANDLE	handle (void) const=0
	I/O handle used for writing.
Protected Methods
	ACE_Asynch_Write_Dgram_Result_Impl (void)
	Do-nothing constructor.

---

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Dgram::Result class.

---

Constructor & Destructor Documentation

ACE_Asynch_Write_Dgram_Result_Impl::~ACE_Asynch_Write_Dgram_Result_Impl (  void    )  [virtual]

ACE_Asynch_Write_Dgram_Result_Impl::ACE_Asynch_Write_Dgram_Result_Impl (  void    )  [protected]

Do-nothing constructor.

---

Member Function Documentation

virtual size_t ACE_Asynch_Write_Dgram_Result_Impl::bytes_to_write (  void    )  const [pure virtual]

The number of bytes which were requested at the start of the asynchronous write. Implemented in ACE_POSIX_Asynch_Write_Dgram_Result, and ACE_WIN32_Asynch_Write_Dgram_Result.

virtual int ACE_Asynch_Write_Dgram_Result_Impl::flags (  void    )  const [pure virtual]

The flags using in the write. Implemented in ACE_POSIX_Asynch_Write_Dgram_Result, and ACE_WIN32_Asynch_Write_Dgram_Result.

virtual ACE_HANDLE ACE_Asynch_Write_Dgram_Result_Impl::handle (  void    )  const [pure virtual]

I/O handle used for writing. Implemented in ACE_POSIX_Asynch_Write_Dgram_Result, and ACE_WIN32_Asynch_Write_Dgram_Result.

virtual ACE_Message_Block* ACE_Asynch_Write_Dgram_Result_Impl::message_block (  void    )  const [pure virtual]

Message block which contains the sent data. Implemented in ACE_POSIX_Asynch_Write_Dgram_Result, and ACE_WIN32_Asynch_Write_Dgram_Result.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Asynch_IO_Impl.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Asynch_IO_Impl.cpp

---
