ACE_Asynch_Connect Class Reference

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Connect:

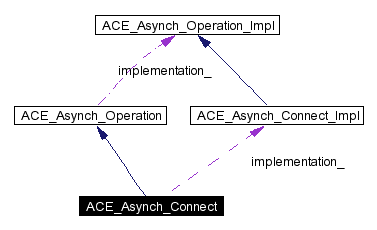

[legend]Collaboration diagram for ACE_Asynch_Connect:

[legend]List of all members.

Public Methods
	ACE_Asynch_Connect (void)
	A do nothing constructor.
virtual	~ACE_Asynch_Connect (void)
	Destructor.
int	open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int	connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Connect_Impl *	implementation (void) const
	Return the underlying implementation class.
Protected Methods
void	implementation (ACE_Asynch_Connect_Impl *implementation)
	Set the implementation class.
Protected Attributes
ACE_Asynch_Connect_Impl *	implementation_

---

Detailed Description

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class.

Once open is called, multiple asynchronous connect operationss can started using this class. A ACE_Asynch_Connect::Result will be passed back to the associated ACE_Handler when the asynchronous connect completes through the ACE_Handler::handle_connect() callback.

---

Constructor & Destructor Documentation

ACE_Asynch_Connect::ACE_Asynch_Connect (  void    )

A do nothing constructor.

ACE_Asynch_Connect::~ACE_Asynch_Connect (  void    )  [virtual]

Destructor.

---

Member Function Documentation

int ACE_Asynch_Connect::connect (  ACE_HANDLE    connect_handle, const ACE_Addr &    remote_sap, const ACE_Addr &    local_sap, int    reuse_addr, const void *    act = 0, int    priority = 0, int    signal_number = ACE_SIGRTMIN )

This starts off an asynchronous Connect.

void ACE_Asynch_Connect::implementation (  ACE_Asynch_Connect_Impl *    implementation )  [protected]

Set the implementation class.

ACE_Asynch_Connect_Impl * ACE_Asynch_Connect::implementation (  void    )  const

Return the underlying implementation class. Reimplemented from ACE_Asynch_Operation.

int ACE_Asynch_Connect::open (  ACE_Handler &    handler, ACE_HANDLE    handle = ACE_INVALID_HANDLE, const void *    completion_key = 0, ACE_Proactor *    proactor = 0 )

Initializes the factory with information which will be used with each asynchronous call. Note: handle is ignored and should be ACE_INVALID_HANDLE. Reimplemented from ACE_Asynch_Operation.

---

Member Data Documentation

ACE_Asynch_Connect_Impl* ACE_Asynch_Connect::implementation_ [protected]

Delegation/implementation class that all methods will be forwarded to. Reimplemented from ACE_Asynch_Operation.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Asynch_IO.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Asynch_IO.cpp

---
