ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > Class Template Reference

Defines a map implementation. More...

#include <Map_T.h>

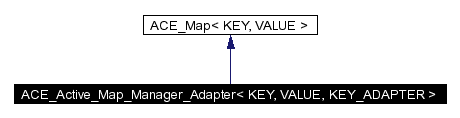

Inheritance diagram for ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >:

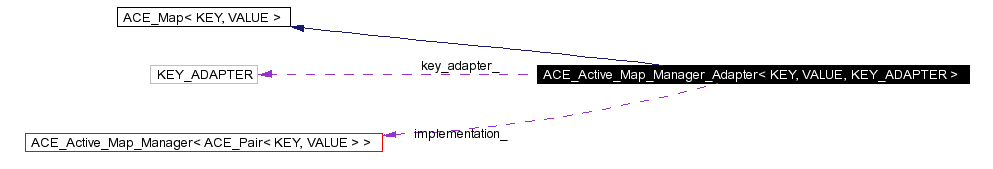

[legend]Collaboration diagram for ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >:

[legend]List of all members.


Public Types
typedef ACE_Pair< KEY, VALUE >	expanded_value
typedef ACE_Active_Map_Manager_Iterator_Adapter< ACE_Reference_Pair< const KEY, VALUE >, expanded_value >	iterator_impl
typedef ACE_Active_Map_Manager_Reverse_Iterator_Adapter< ACE_Reference_Pair< const KEY, VALUE >, expanded_value >	reverse_iterator_impl
typedef ACE_Active_Map_Manager< expanded_value >	implementation
Public Methods
	ACE_Active_Map_Manager_Adapter (ACE_Allocator *alloc=0)
	Initialize with the <ACE_DEFAULT_MAP_SIZE>.
	ACE_Active_Map_Manager_Adapter (size_t size, ACE_Allocator *alloc=0)
virtual	~ACE_Active_Map_Manager_Adapter (void)
	Close down and release dynamically allocated resources.
virtual int	open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
	Initialize a <Map> with size <length>.
virtual int	close (void)
	Close down a <Map> and release dynamically allocated resources.
virtual int	bind (const KEY &key, const VALUE &value)
virtual int	bind_modify_key (const VALUE &value, KEY &key)
virtual int	create_key (KEY &key)
virtual int	bind_create_key (const VALUE &value, KEY &key)
virtual int	bind_create_key (const VALUE &value)
virtual int	recover_key (const KEY &modified_key, KEY &original_key)
virtual int	rebind (const KEY &key, const VALUE &value)
virtual int	rebind (const KEY &key, const VALUE &value, VALUE &old_value)
virtual int	rebind (const KEY &key, const VALUE &value, KEY &old_key, VALUE &old_value)
virtual int	trybind (const KEY &key, VALUE &value)
virtual int	find (const KEY &key, VALUE &value)
	Locate <value> associated with <key>.
virtual int	find (const KEY &key)
	Is <key> in the map?
virtual int	unbind (const KEY &key)
	Remove <key> from the map.
virtual int	unbind (const KEY &key, VALUE &value)
virtual size_t	current_size (void) const
	Return the current size of the map.
virtual size_t	total_size (void) const
	Return the total size of the map.
virtual void	dump (void) const
	Dump the state of an object.
ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > > &	impl (void)
	Accessor to implementation object.
KEY_ADAPTER &	key_adapter (void)
	Accessor to key adapter.
Protected Methods
virtual int	find (const KEY &key, expanded_value *&internal_value)
	Find helper.
virtual int	unbind (const KEY &key, expanded_value *&internal_value)
	Unbind helper.
virtual ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > *	begin_impl (void)
	Return forward iterator.
virtual ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > *	end_impl (void)
virtual ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > *	rbegin_impl (void)
	Return reverse iterator.
virtual ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > *	rend_impl (void)
Protected Attributes
ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >	implementation_
	All implementation details are forwarded to this class.
KEY_ADAPTER	key_adapter_
	Adapts between the user key and the Active_Map_Manager_Key.
Private Methods
void	operator= (const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &)
	ACE_Active_Map_Manager_Adapter (const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &)

Detailed Description

template<class KEY, class VALUE, class KEY_ADAPTER>
class ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >

Defines a map implementation.

Implementation to be provided by <ACE_Active_Map_Manager>.

Member Typedef Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>

typedef ACE_Pair<KEY, VALUE> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::expanded_value

template<class KEY, class VALUE, class KEY_ADAPTER>

typedef ACE_Active_Map_Manager<expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::implementation

template<class KEY, class VALUE, class KEY_ADAPTER>

typedef ACE_Active_Map_Manager_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::iterator_impl

template<class KEY, class VALUE, class KEY_ADAPTER>

typedef ACE_Active_Map_Manager_Reverse_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::reverse_iterator_impl

Constructor & Destructor Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter ( ACE_Allocator * alloc = 0 )

Initialize with the <ACE_DEFAULT_MAP_SIZE>.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter ( size_t size,

ACE_Allocator * alloc = 0

)

Initialize with <size> entries. The <size> parameter is ignored by maps for which an initialize size does not make sense.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::~ACE_Active_Map_Manager_Adapter ( void ) [virtual]

Close down and release dynamically allocated resources.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter ( const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > & ) [private]

Member Function Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::begin_impl ( void ) [protected, virtual]

Return forward iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind ( const KEY & key,

const VALUE & value

) [virtual]

Add <key>/<value> pair to the map. If <key> is already in the map then no changes are made and 1 is returned. Returns 0 on a successful addition. This function fails for maps that do not allow user specified keys. <key> is an "in" parameter.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_create_key ( const VALUE & value ) [virtual]

Add <value> to the map. The user does not care about the corresponding key produced by the Map. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_create_key ( const VALUE & value,

KEY & key

) [virtual]

Add <value> to the map, and the corresponding key produced by the Map is returned through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_modify_key ( const VALUE & value,

KEY & key

) [virtual]

Add <key>/<value> pair to the map. <key> is an "inout" parameter and maybe modified/extended by the map to add additional information. To recover original key, call the <recover_key> method.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::close ( void ) [virtual]

Close down a <Map> and release dynamically allocated resources.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::create_key ( KEY & key ) [virtual]

Produce a key and return it through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE size_t ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::current_size ( void ) const [virtual]

Return the current size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE void ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::dump ( void ) const [virtual]

Dump the state of an object.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::end_impl ( void ) [protected, virtual]

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find ( const KEY & key,

expanded_value *& internal_value

) [protected, virtual]

Find helper.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find ( const KEY & key ) [virtual]

Is <key> in the map?

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find ( const KEY & key,

VALUE & value

) [virtual]

Locate <value> associated with <key>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > > & ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::impl ( void )

Accessor to implementation object.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE KEY_ADAPTER & ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::key_adapter ( void )

Accessor to key adapter.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::open ( size_t length = ACE_DEFAULT_MAP_SIZE,

ACE_Allocator * alloc = 0

) [virtual]

Initialize a <Map> with size <length>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

void ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::operator= ( const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > & ) [private]

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rbegin_impl ( void ) [protected, virtual]

Return reverse iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind ( const KEY & key,

const VALUE & value,

KEY & old_key,

VALUE & old_value

) [virtual]

Reassociate <key> with <value>, storing the old key and value into the "out" parameters <old_key> and <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind ( const KEY & key,

const VALUE & value,

VALUE & old_value

) [virtual]

Reassociate <key> with <value>, storing the old value into the "out" parameter <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind ( const KEY & key,

const VALUE & value

) [virtual]

Reassociate <key> with <value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::recover_key ( const KEY & modified_key,

KEY & original_key

) [virtual]

Recovers the original key potentially modified by the map during <bind_modify_key>.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rend_impl ( void ) [protected, virtual]

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE size_t ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::total_size ( void ) const [virtual]

Return the total size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::trybind ( const KEY & key,

VALUE & value

) [virtual]

Associate <key> with <value> if and only if <key> is not in the map. If <key> is already in the map, then the <value> parameter is overwritten with the existing value in the map. Returns 0 if a new <key>/<value> association is created. Returns 1 if an attempt is made to bind an existing entry. This function fails for maps that do not allow user specified keys.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind ( const KEY & key,

expanded_value *& internal_value

) [protected, virtual]

Unbind helper.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind ( const KEY & key,

VALUE & value

) [virtual]

Remove <key> from the map, and return the <value> associated with <key>.
Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind ( const KEY & key ) [virtual]

Remove <key> from the map.

Implements ACE_Map< KEY, VALUE >.

Member Data Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>

ACE_Active_Map_Manager<ACE_Pair<KEY, VALUE> > ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::implementation_ [protected]

All implementation details are forwarded to this class.

template<class KEY, class VALUE, class KEY_ADAPTER>

KEY_ADAPTER ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::key_adapter_ [protected]

Adapts between the user key and the Active_Map_Manager_Key.

The documentation for this class was generated from the following files:

/export2/deucetmp/bala/release_try/ACE_wrappers/ace/Map_T.h
/export2/deucetmp/bala/release_try/ACE_wrappers/ace/Map_T.i

Generated on Wed Jan 14 22:40:54 2004 for ACE by

1.2.18

ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > Class Template Reference

Public Types

Public Methods

Protected Methods

Protected Attributes
