ACE_Accept_Strategy< SVC_HANDLER, > Class Template Reference

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER. More...

#include <Strategies_T.h>

Inheritance diagram for ACE_Accept_Strategy< SVC_HANDLER, >:

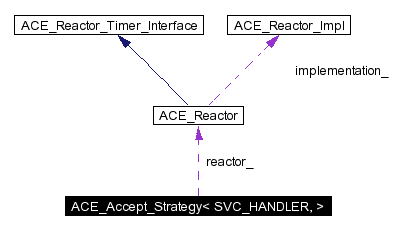

[legend]Collaboration diagram for ACE_Accept_Strategy< SVC_HANDLER, >:

[legend]List of all members.

Public Types
typedef ACE_PEER_ACCEPTOR_ADDR	addr_type
typedef ACE_PEER_ACCEPTOR	acceptor_type
typedef SVC_HANDLER	handler_type
typedef ACE_TYPENAME SVC_HANDLER::stream_type	stream_type
Public Methods
	ACE_Accept_Strategy (ACE_Reactor *reactor=ACE_Reactor::instance())
	Default constructor.
	ACE_Accept_Strategy (const ACE_PEER_ACCEPTOR_ADDR &local_addr, int restart=0, ACE_Reactor *reactor=ACE_Reactor::instance())
	Initialize the <peer_acceptor_> with <local_addr>.
virtual int	open (const ACE_PEER_ACCEPTOR_ADDR &local_addr, int reuse_addr=0)
virtual ACE_HANDLE	get_handle (void) const
	Return the underlying ACE_HANDLE of the <peer_acceptor_>.
virtual ACE_PEER_ACCEPTOR &	acceptor (void) const
	Return a reference to the <peer_acceptor_>.
virtual	~ACE_Accept_Strategy (void)
virtual int	accept_svc_handler (SVC_HANDLER *)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Attributes
ACE_PEER_ACCEPTOR	peer_acceptor_
	Factory that establishes connections passively.
ACE_Reactor *	reactor_
	Pointer to the reactor used by the Acceptor.
int	reuse_addr_
	Needed to reopen the socket if <accept> fails.
ACE_PEER_ACCEPTOR_ADDR	peer_acceptor_addr_
	Needed to reopen the socket if <accept> fails.

---

Detailed Description

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1>
class ACE_Accept_Strategy< SVC_HANDLER, >

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER.

This class provides a strategy that manages passive connection acceptance of a client.

---

Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, >::acceptor_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, >::addr_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef SVC_HANDLER ACE_Accept_Strategy< SVC_HANDLER, >::handler_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef ACE_TYPENAME SVC_HANDLER::stream_type ACE_Accept_Strategy< SVC_HANDLER, >::stream_type

---

Constructor & Destructor Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_Accept_Strategy< SVC_HANDLER, >::ACE_Accept_Strategy (  ACE_Reactor *    reactor = ACE_Reactor::instance() )

Default constructor.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_Accept_Strategy< SVC_HANDLER, >::ACE_Accept_Strategy (  const ACE_PEER_ACCEPTOR_ADDR &    local_addr, int    restart = 0, ACE_Reactor *    reactor = ACE_Reactor::instance() )

Initialize the <peer_acceptor_> with <local_addr>.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual ACE_Accept_Strategy< SVC_HANDLER, >::~ACE_Accept_Strategy (  void    )  [virtual]

---

Member Function Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Accept_Strategy< SVC_HANDLER, >::accept_svc_handler (  SVC_HANDLER *    )  [virtual]

The default behavior delegates to the <accept> method of the PEER_ACCEPTOR.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual ACE_PEER_ACCEPTOR& ACE_Accept_Strategy< SVC_HANDLER, >::acceptor (  void    )  const [virtual]

Return a reference to the <peer_acceptor_>.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > void ACE_Accept_Strategy< SVC_HANDLER, >::dump (  void    )  const

Dump the state of an object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual ACE_HANDLE ACE_Accept_Strategy< SVC_HANDLER, >::get_handle (  void    )  const [virtual]

Return the underlying ACE_HANDLE of the <peer_acceptor_>.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Accept_Strategy< SVC_HANDLER, >::open (  const ACE_PEER_ACCEPTOR_ADDR &    local_addr, int    reuse_addr = 0 )  [virtual]

Initialize the <peer_acceptor_> with <local_addr>, indicating whether to <reuse_addr> if it's already in use.

---

Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_Accept_Strategy< SVC_HANDLER, >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, >::peer_acceptor_ [protected]

Factory that establishes connections passively.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, >::peer_acceptor_addr_ [protected]

Needed to reopen the socket if <accept> fails.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_Reactor* ACE_Accept_Strategy< SVC_HANDLER, >::reactor_ [protected]

Pointer to the reactor used by the Acceptor.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > int ACE_Accept_Strategy< SVC_HANDLER, >::reuse_addr_ [protected]

Needed to reopen the socket if <accept> fails.

---

The documentation for this class was generated from the following file:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Strategies_T.h

---
