TAO::SSLIOP::Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <SSLIOP_Connection_Handler.h>

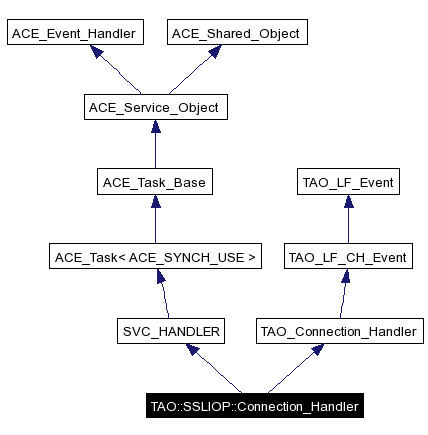

Inheritance diagram for TAO::SSLIOP::Connection_Handler:

Inheritance graph

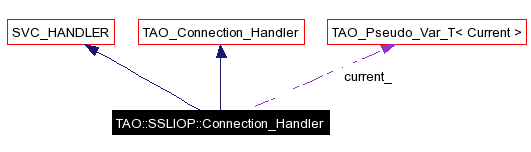

Collaboration diagram for TAO::SSLIOP::Connection_Handler:

Collaboration graph
List of all members.

Public Member Functions

 Connection_Handler (ACE_Thread_Manager *t=0)
 Connection_Handler (TAO_ORB_Core *orb_core, CORBA::Boolean flag)
 ~Connection_Handler (void)
int close (u_long=0)
int add_transport_to_cache (void)
 Add ourselves to cache.
int process_listen_point_list (IIOP::ListenPointList &listen_list)
 Process the listen_list.
int setup_ssl_state (TAO::SSLIOP::Current_Impl *&previous_current_impl, TAO::SSLIOP::Current_Impl *new_current_impl, bool &setup_done)
void teardown_ssl_state (TAO::SSLIOP::Current_Impl *previous_current_impl, bool &setup_done)
 Teardown the SSL session state.
Connection Handler overloads
Connection Handler overloads.

virtual int open_handler (void *)
Event Handler overloads
virtual int resume_handler (void)
virtual int close_connection (void)
virtual int handle_input (ACE_HANDLE)
virtual int handle_output (ACE_HANDLE)
virtual int handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int open (void *)

Protected Member Functions

TAO_Connection Handler overloads
virtual int release_os_resources (void)
virtual void pos_io_hook (int &return_value)

Protected Attributes

TAO::SSLIOP::Current_var current_

Private Attributes

TAO_IIOP_Properties * tcp_properties_
 TCP configuration for this connection.

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO::SSLIOP::Connection_Handler::Connection_Handler ACE_Thread_Manager t = 0  )

TAO::SSLIOP::Connection_Handler::Connection_Handler TAO_ORB_Core orb_core,
CORBA::Boolean  flag


arg Parameter is used by the Acceptor to pass the protocol configuration properties for this connection.

TAO::SSLIOP::Connection_Handler::~Connection_Handler void   )


Member Function Documentation

int TAO::SSLIOP::Connection_Handler::add_transport_to_cache void   )

Add ourselves to cache.

int TAO::SSLIOP::Connection_Handler::close u_long  = 0  )  [virtual]

Close called by the Acceptor or Connector when connection establishment fails.

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO::SSLIOP::Connection_Handler::close_connection void   )  [virtual]

Implements TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::handle_close ACE_HANDLE  ,

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO::SSLIOP::Connection_Handler::handle_input ACE_HANDLE   )  [virtual]

Implements TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::handle_output ACE_HANDLE   )  [virtual]

Reimplemented from ACE_Event_Handler.

int TAO::SSLIOP::Connection_Handler::handle_timeout const ACE_Time_Value current_time,
const void *  act = 0

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO::SSLIOP::Connection_Handler::open void *   )  [virtual]

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO::SSLIOP::Connection_Handler::open_handler void *   )  [virtual]

Implements TAO_Connection_Handler.

void TAO::SSLIOP::Connection_Handler::pos_io_hook int &  return_value  )  [protected, virtual]

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::process_listen_point_list IIOP::ListenPointList listen_list  )

Process the listen_list.

int TAO::SSLIOP::Connection_Handler::release_os_resources void   )  [protected, virtual]

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::resume_handler void   )  [virtual]

Reimplemented from ACE_Event_Handler.

int TAO::SSLIOP::Connection_Handler::setup_ssl_state TAO::SSLIOP::Current_Impl *&  previous_current_impl,
TAO::SSLIOP::Current_Impl new_current_impl,
bool &  setup_done

Make the SSL session state available to the SSLIOP::Current object.

void TAO::SSLIOP::Connection_Handler::teardown_ssl_state TAO::SSLIOP::Current_Impl previous_current_impl,
bool &  setup_done

Teardown the SSL session state.

Member Data Documentation

TAO::SSLIOP::Current_var TAO::SSLIOP::Connection_Handler::current_ [protected]

Reference to the SSLIOP::Current object (downcast to gain access to the low-level management methods).

TAO_IIOP_Properties* TAO::SSLIOP::Connection_Handler::tcp_properties_ [private]

TCP configuration for this connection.

The documentation for this class was generated from the following files:
