TAO_Thread_Lane_Resources Class Reference

Class representing a thread lane's resources. More...

#include <Thread_Lane_Resources.h>

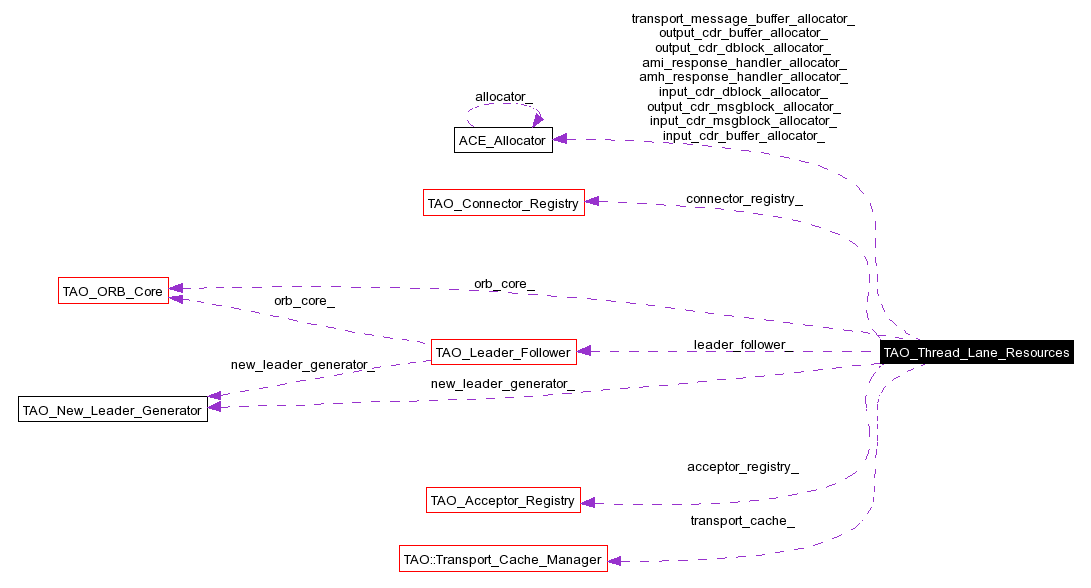

Collaboration diagram for TAO_Thread_Lane_Resources:

[legend]List of all members.

d Accessors
TAO_Acceptor_Registry &	acceptor_registry (void)
TAO_Connector_Registry *	connector_registry ()
TAO::Transport_Cache_Manager &	transport_cache (void)
TAO_Leader_Follower &	leader_follower (void)
ACE_Allocator *	input_cdr_dblock_allocator (void)
ACE_Allocator *	input_cdr_buffer_allocator (void)
ACE_Allocator *	input_cdr_msgblock_allocator (void)
ACE_Allocator *	transport_message_buffer_allocator (void)
ACE_Allocator *	output_cdr_dblock_allocator (void)
ACE_Allocator *	output_cdr_buffer_allocator (void)
ACE_Allocator *	output_cdr_msgblock_allocator (void)
ACE_Allocator *	amh_response_handler_allocator (void)
ACE_Allocator *	ami_response_handler_allocator (void)
The allocators for the input CDR streams.
ACE_Allocator *	input_cdr_dblock_allocator_
ACE_Allocator *	input_cdr_buffer_allocator_
ACE_Allocator *	input_cdr_msgblock_allocator_
The allocators for the buffering messages in the transport.
ACE_Allocator *	transport_message_buffer_allocator_
The allocators for the output CDR streams.
ACE_Allocator *	output_cdr_dblock_allocator_
ACE_Allocator *	output_cdr_buffer_allocator_
ACE_Allocator *	output_cdr_msgblock_allocator_
The allocators for AMH.
ACE_Allocator *	amh_response_handler_allocator_
The allocators for AMI.
ACE_Allocator *	ami_response_handler_allocator_
Public Member Functions
	TAO_Thread_Lane_Resources (TAO_ORB_Core &orb_core, TAO_New_Leader_Generator *new_leader_generator=0)
	Constructor.
	~TAO_Thread_Lane_Resources (void)
	Destructor.
int	is_collocated (const TAO_MProfile &mprofile)
int	open_acceptor_registry (const TAO_EndpointSet &endpoint_set, bool ignore_address)
	Open the acceptor registry.
void	finalize (void)
	Finalize resources.
void	shutdown_reactor (void)
	Shutdown the reactor.
void	cleanup_rw_transports (void)
Private Member Functions
int	has_acceptor_registry_been_created (void) const
	Checks if the acceptor registry has been created.
TAO_Resource_Factory *	resource_factory (void)
	Helper to get the resource factory in the ORB_Core.
Private Attributes
TAO_ORB_Core &	orb_core_
	ORB_Core related to this thread lane.
TAO_Acceptor_Registry *	acceptor_registry_
TAO_Connector_Registry *	connector_registry_
TAO::Transport_Cache_Manager *	transport_cache_
	Transport cache.
TAO_Leader_Follower *	leader_follower_
	The leader/followers management class for this lane.
TAO_SYNCH_MUTEX	lock_
	Synchronization.
TAO_New_Leader_Generator *	new_leader_generator_
	Generator of new leader threads.

---

Detailed Description

Class representing a thread lane's resources.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Thread_Lane_Resources::TAO_Thread_Lane_Resources (  TAO_ORB_Core &  orb_core, TAO_New_Leader_Generator *  new_leader_generator = 0 )

Constructor.

TAO_Thread_Lane_Resources::~TAO_Thread_Lane_Resources (  void   )

Destructor.

---

Member Function Documentation

TAO_Acceptor_Registry & TAO_Thread_Lane_Resources::acceptor_registry (  void   )

ACE_Allocator * TAO_Thread_Lane_Resources::amh_response_handler_allocator (  void   )

ACE_Allocator * TAO_Thread_Lane_Resources::ami_response_handler_allocator (  void   )

void TAO_Thread_Lane_Resources::cleanup_rw_transports (  void   )

Certain ORB policies such as dropping replies on shutdown with RW connection handlers would need cleanup of transports to wake threads up.

TAO_Connector_Registry * TAO_Thread_Lane_Resources::connector_registry (   )

void TAO_Thread_Lane_Resources::finalize (  void   )

Finalize resources.

int TAO_Thread_Lane_Resources::has_acceptor_registry_been_created (  void   )  const [private]

Checks if the acceptor registry has been created.

ACE_Allocator * TAO_Thread_Lane_Resources::input_cdr_buffer_allocator (  void   )

ACE_Allocator * TAO_Thread_Lane_Resources::input_cdr_dblock_allocator (  void   )

ACE_Allocator * TAO_Thread_Lane_Resources::input_cdr_msgblock_allocator (  void   )

int TAO_Thread_Lane_Resources::is_collocated (  const TAO_MProfile &  mprofile  )

TAO_Leader_Follower & TAO_Thread_Lane_Resources::leader_follower (  void   )

int TAO_Thread_Lane_Resources::open_acceptor_registry (  const TAO_EndpointSet &  endpoint_set, bool  ignore_address )

Open the acceptor registry.

ACE_Allocator * TAO_Thread_Lane_Resources::output_cdr_buffer_allocator (  void   )

ACE_Allocator * TAO_Thread_Lane_Resources::output_cdr_dblock_allocator (  void   )

ACE_Allocator * TAO_Thread_Lane_Resources::output_cdr_msgblock_allocator (  void   )

TAO_Resource_Factory * TAO_Thread_Lane_Resources::resource_factory (  void   )  [private]

Helper to get the resource factory in the ORB_Core.

void TAO_Thread_Lane_Resources::shutdown_reactor (  void   )

Shutdown the reactor.

TAO::Transport_Cache_Manager & TAO_Thread_Lane_Resources::transport_cache (  void   )

ACE_Allocator * TAO_Thread_Lane_Resources::transport_message_buffer_allocator (  void   )

---

Member Data Documentation

TAO_Acceptor_Registry* TAO_Thread_Lane_Resources::acceptor_registry_ [private]

The registry which maintains a list of acceptor factories for each loaded protocol.

ACE_Allocator* TAO_Thread_Lane_Resources::amh_response_handler_allocator_ [private]

ACE_Allocator* TAO_Thread_Lane_Resources::ami_response_handler_allocator_ [private]

TAO_Connector_Registry* TAO_Thread_Lane_Resources::connector_registry_ [private]

The connector registry which all active connectors must register themselves with.

ACE_Allocator* TAO_Thread_Lane_Resources::input_cdr_buffer_allocator_ [private]

ACE_Allocator* TAO_Thread_Lane_Resources::input_cdr_dblock_allocator_ [private]

ACE_Allocator* TAO_Thread_Lane_Resources::input_cdr_msgblock_allocator_ [private]

TAO_Leader_Follower* TAO_Thread_Lane_Resources::leader_follower_ [private]

The leader/followers management class for this lane.

TAO_SYNCH_MUTEX TAO_Thread_Lane_Resources::lock_ [private]

Synchronization.

TAO_New_Leader_Generator* TAO_Thread_Lane_Resources::new_leader_generator_ [private]

Generator of new leader threads.

TAO_ORB_Core& TAO_Thread_Lane_Resources::orb_core_ [private]

ORB_Core related to this thread lane.

ACE_Allocator* TAO_Thread_Lane_Resources::output_cdr_buffer_allocator_ [private]

ACE_Allocator* TAO_Thread_Lane_Resources::output_cdr_dblock_allocator_ [private]

ACE_Allocator* TAO_Thread_Lane_Resources::output_cdr_msgblock_allocator_ [private]

TAO::Transport_Cache_Manager* TAO_Thread_Lane_Resources::transport_cache_ [private]

Transport cache.

ACE_Allocator* TAO_Thread_Lane_Resources::transport_message_buffer_allocator_ [private]

---

The documentation for this class was generated from the following files:

• Thread_Lane_Resources.h
• Thread_Lane_Resources.cpp

---
