TAO_LF_CH_Event Class Reference

Use the Leader/Follower loop to wait for one specific event in the invocation path. More...

#include <LF_CH_Event.h>

Inheritance diagram for TAO_LF_CH_Event:

Inheritance graph
[legend]

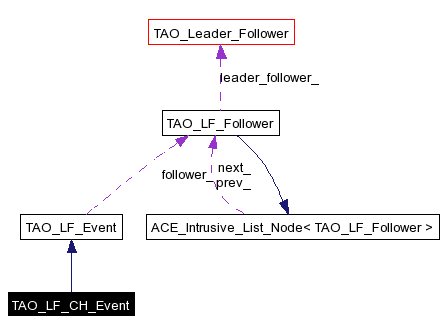

Collaboration diagram for TAO_LF_CH_Event:

Collaboration graph
[legend]
List of all members.

[NOHEADER]

int successful (void) const
int error_detected (void) const
void reset_state (int new_state)
 Reset the state, irrespective of the previous states.
virtual int is_state_final (void)
 Check whether we have reached the final state..

Public Member Functions

 TAO_LF_CH_Event (void)
 Constructor.
virtual ~TAO_LF_CH_Event (void)
 Destructor.

Private Member Functions

virtual void state_changed_i (int new_state)
 Validate and change the state.
virtual void set_state (int new_state)
 Set the state irrespective of anything.

Private Attributes

int prev_state_
 The previous state that the LF_CH_Event was in.

Detailed Description

Use the Leader/Follower loop to wait for one specific event in the invocation path.

Concrete event types and manipulation class which is used for connection handling purposes.


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_LF_CH_Event::TAO_LF_CH_Event void   )


Constructor.

TAO_LF_CH_Event::~TAO_LF_CH_Event void   )  [virtual]


Destructor.


Member Function Documentation

int TAO_LF_CH_Event::error_detected void   )  const [virtual]


Return 1 if an error was detected while waiting for the event

Implements TAO_LF_Event.

int TAO_LF_CH_Event::is_state_final void   )  [protected, virtual]


Check whether we have reached the final state..

Implements TAO_LF_Event.

void TAO_LF_CH_Event::reset_state int  new_state  )


Reset the state, irrespective of the previous states.

Reimplemented from TAO_LF_Event.

void TAO_LF_CH_Event::set_state int  new_state  )  [private, virtual]


Set the state irrespective of anything.

Reimplemented from TAO_LF_Event.

void TAO_LF_CH_Event::state_changed_i int  new_state  )  [private, virtual]


Validate and change the state.

Implements TAO_LF_Event.

int TAO_LF_CH_Event::successful void   )  const [virtual]


Return 1 if the condition was satisfied successfully, 0 if it has not

Implements TAO_LF_Event.


Member Data Documentation

int TAO_LF_CH_Event::prev_state_ [private]


The previous state that the LF_CH_Event was in.


The documentation for this class was generated from the following files:
