ACE_SSL_Asynch_Stream Class Reference

This class is a factory for starting off asynchronous reads on a stream. This class forwards all methods to its implementation class. More...

#include <SSL_Asynch_Stream.h>

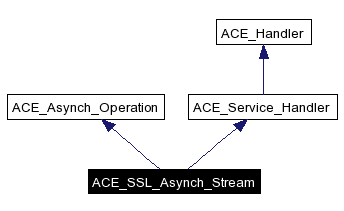

Inheritance diagram for ACE_SSL_Asynch_Stream:

Inheritance graph
[legend]

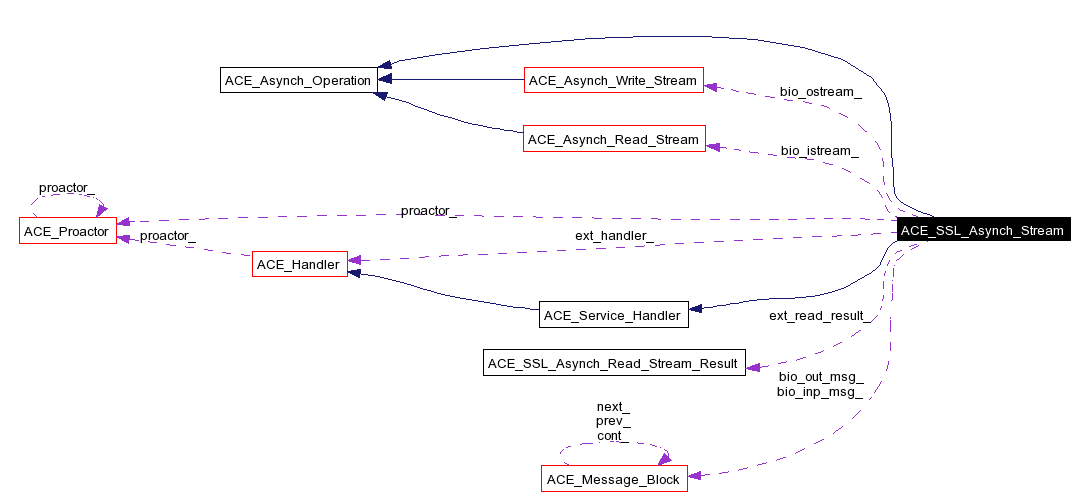

Collaboration diagram for ACE_SSL_Asynch_Stream:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Stream_Type { ST_CLIENT = 0x0001, ST_SERVER = 0x0002 }

Public Member Functions

 ACE_SSL_Asynch_Stream (Stream_Type s_type=ST_SERVER, ACE_SSL_Context *context=0)
 The constructor.
virtual ~ACE_SSL_Asynch_Stream (void)
 Destructor.
int cancel (void)
int close (void)
int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
void open (ACE_HANDLE new_handle, ACE_Message_Block &message_block)
int read (ACE_Message_Block &message_block, size_t num_bytes_to_read, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
int write (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)

Protected Types

enum  Stream_Flag {
  SF_STREAM_OPEN = 0x0001, SF_REQ_SHUTDOWN = 0x0002, SF_SHUTDOWN_DONE = 0x0004, SF_CLOSE_NTF_SENT = 0x0008,
  SF_DELETE_ENABLE = 0x0010
}
 Stream state/flags. More...
enum  BIO_Flag { BF_EOS = 0x01, BF_AIO = 0x02 }

Protected Member Functions

virtual void handle_write_stream (const ACE_Asynch_Write_Stream::Result &result)
 virtual from ACE_Service_Handler
virtual void handle_read_stream (const ACE_Asynch_Read_Stream::Result &result)
virtual void handle_wakeup (void)
void print_error (int err_ssl, const ACE_TCHAR *pText)
int pending_BIO_count (void)
int notify_read (int bytes_transferred, int error)
int notify_write (int bytes_transferred, int error)
int notify_close (void)
SSL State Machine
int do_SSL_state_machine (void)
int do_SSL_handshake (void)
int do_SSL_read (void)
int do_SSL_write (void)
int do_SSL_shutdown (void)
BIO Helpers
int ssl_bio_read (char *buf, size_t len, int &errval)
int ssl_bio_write (const char *buf, size_t len, int &errval)

Protected Attributes

Stream_Type type_
 Stream Type ST_CLIENT/ST_SERVER.
ACE_HANDLE handle_
 The real file/socket handle.
ACE_Proactor * proactor_
 The proactor.
ACE_Handler * ext_handler_
 External,i.e user handler.
ACE_SSL_Asynch_Read_Stream_Result * ext_read_result_
 External, i.e. read result faked for user.
ACE_SSL_Asynch_Write_Stream_Result * ext_write_result_
 External, i.e. write result faked for user.
int flags_
SSL * ssl_
 The SSL session.
BIO * bio_
 The BIO implementation.
ACE_SYNCH_MUTEX mutex_
 Mutex to protect work.
Internal stream, buffer and info for BIO read
ACE_Asynch_Read_Stream bio_istream_
ACE_Message_Block bio_inp_msg_
int bio_inp_errno_
int bio_inp_flag_
Internal stream, buffer and info for BIO write
ACE_Asynch_Write_Stream bio_ostream_
ACE_Message_Block bio_out_msg_
int bio_out_errno_
int bio_out_flag_

Private Member Functions

 ACE_SSL_Asynch_Stream (ACE_SSL_Asynch_Stream const &)
ACE_SSL_Asynch_Stream & operator= (ACE_SSL_Asynch_Stream const &)

Friends

struct ACE_SSL_Asynch_Stream_Accessor

Detailed Description

This class is a factory for starting off asynchronous reads on a stream. This class forwards all methods to its implementation class.

Once open() is called, multiple asynchronous read()s can started using this class. An ACE_SSL_Asynch_Stream::Result will be passed back to the
Parameters:
handler when the asynchronous reads completes through the ACE_Handler::handle_read_stream callback.

Member Enumeration Documentation

enum ACE_SSL_Asynch_Stream::BIO_Flag [protected]


The real streams which work under the ssl connection. BIO performs I/O via this streams

Enumeration values:
BF_EOS  End of stream.
BF_AIO  Real AIO in progress.

enum ACE_SSL_Asynch_Stream::Stream_Flag [protected]


Stream state/flags.

Enumeration values:
SF_STREAM_OPEN  istream_ open OK
SF_REQ_SHUTDOWN  request to SSL shutdown
SF_SHUTDOWN_DONE  SSL shutdown finished.
SF_CLOSE_NTF_SENT  Close notification sent.
SF_DELETE_ENABLE  Stream can be safely destroyed.

enum ACE_SSL_Asynch_Stream::Stream_Type


Enumeration values:
ST_CLIENT
ST_SERVER

Constructor & Destructor Documentation

ACE_SSL_Asynch_Stream::ACE_SSL_Asynch_Stream (  Stream_Type  s_type = ST_SERVER,
ACE_SSL_Context *  context = 0
)


The constructor.

Parameters:
context Pointer to ACE_SSL_Context instance containing the OpenSSL SSL data structure to be associated with this ACE_SSL_SOCK_Stream. The SSL data structure will be copied to make it at least logically independent of the supplied context.

ACE_SSL_Asynch_Stream::~ACE_SSL_Asynch_Stream (  void   )  [virtual]


Destructor.

ACE_SSL_Asynch_Stream::ACE_SSL_Asynch_Stream (  ACE_SSL_Asynch_Stream const &   )  [private]


Member Function Documentation

int ACE_SSL_Asynch_Stream::cancel (  void   )


Reimplemented from ACE_Asynch_Operation.

int ACE_SSL_Asynch_Stream::close (  void   )


int ACE_SSL_Asynch_Stream::do_SSL_handshake (  void   )  [protected]


int ACE_SSL_Asynch_Stream::do_SSL_read (  void   )  [protected]


int ACE_SSL_Asynch_Stream::do_SSL_shutdown (  void   )  [protected]


int ACE_SSL_Asynch_Stream::do_SSL_state_machine (  void   )  [protected]


int ACE_SSL_Asynch_Stream::do_SSL_write (  void   )  [protected]


void ACE_SSL_Asynch_Stream::handle_read_stream (  const ACE_Asynch_Read_Stream::Result &  result  )  [protected, virtual]


This method is called when BIO read request is completed. It processes the IO completion and calls do_SSL_state_machine().

Reimplemented from ACE_Handler.

void ACE_SSL_Asynch_Stream::handle_wakeup (  void   )  [protected, virtual]


This method is called when all SSL sessions are closed and no more pending AIOs exist. It also calls users handle_wakeup().

Reimplemented from ACE_Handler.

void ACE_SSL_Asynch_Stream::handle_write_stream (  const ACE_Asynch_Write_Stream::Result &  result  )  [protected, virtual]


virtual from ACE_Service_Handler

This method is called when BIO write request is completed. It processes the IO completion and calls do_SSL_state_machine().

Reimplemented from ACE_Handler.

int ACE_SSL_Asynch_Stream::notify_close (  void   )  [protected]


This method is called to notify ourself that SSL session is shutdown and that there is no more I/O activity now and in the future.

int ACE_SSL_Asynch_Stream::notify_read (  int  bytes_transferred,
int  error
)  [protected]


This method is called to notify user handler when user's read in done.

int ACE_SSL_Asynch_Stream::notify_write (  int  bytes_transferred,
int  error
)  [protected]


This method is called to notify user handler when user's write in done.

void ACE_SSL_Asynch_Stream::open (  ACE_HANDLE  new_handle,
ACE_Message_Block &  message_block
)  [virtual]


NOTE: This method has been specifically put in place so that compilers like the borland doesnt get confused between the above open () call with the one in the ACE_Service_Handler, from which this class is derived from..

Reimplemented from ACE_Service_Handler.

int ACE_SSL_Asynch_Stream::open (  ACE_Handler &  handler,
ACE_HANDLE  handle = ACE_INVALID_HANDLE,
const void *  completion_key = 0,
ACE_Proactor *  proactor = 0
)


Reimplemented from ACE_Asynch_Operation.

ACE_SSL_Asynch_Stream& ACE_SSL_Asynch_Stream::operator= (  ACE_SSL_Asynch_Stream const &   )  [private]


int ACE_SSL_Asynch_Stream::pending_BIO_count (  void   )  [protected]


void ACE_SSL_Asynch_Stream::print_error (  int  err_ssl,
const ACE_TCHAR *  pText
)  [protected]


int ACE_SSL_Asynch_Stream::read (  ACE_Message_Block &  message_block,
size_t  num_bytes_to_read,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)


int ACE_SSL_Asynch_Stream::ssl_bio_read (  char *  buf,
size_t  len,
int &  errval
)  [protected]


int ACE_SSL_Asynch_Stream::ssl_bio_write (  const char *  buf,
size_t  len,
int &  errval
)  [protected]


int ACE_SSL_Asynch_Stream::write (  ACE_Message_Block &  message_block,
size_t  bytes_to_write,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)


Friends And Related Function Documentation

friend struct ACE_SSL_Asynch_Stream_Accessor [friend]


Member Data Documentation

BIO* ACE_SSL_Asynch_Stream::bio_ [protected]


The BIO implementation.

int ACE_SSL_Asynch_Stream::bio_inp_errno_ [protected]


int ACE_SSL_Asynch_Stream::bio_inp_flag_ [protected]


ACE_Message_Block ACE_SSL_Asynch_Stream::bio_inp_msg_ [protected]


ACE_Asynch_Read_Stream ACE_SSL_Asynch_Stream::bio_istream_ [protected]


ACE_Asynch_Write_Stream ACE_SSL_Asynch_Stream::bio_ostream_ [protected]


int ACE_SSL_Asynch_Stream::bio_out_errno_ [protected]


int ACE_SSL_Asynch_Stream::bio_out_flag_ [protected]


ACE_Message_Block ACE_SSL_Asynch_Stream::bio_out_msg_ [protected]


ACE_Handler* ACE_SSL_Asynch_Stream::ext_handler_ [protected]


External,i.e user handler.

ACE_SSL_Asynch_Read_Stream_Result* ACE_SSL_Asynch_Stream::ext_read_result_ [protected]


External, i.e. read result faked for user.

ACE_SSL_Asynch_Write_Stream_Result* ACE_SSL_Asynch_Stream::ext_write_result_ [protected]


External, i.e. write result faked for user.

int ACE_SSL_Asynch_Stream::flags_ [protected]


ACE_HANDLE ACE_SSL_Asynch_Stream::handle_ [protected]


The real file/socket handle.

Reimplemented from ACE_Handler.

ACE_SYNCH_MUTEX ACE_SSL_Asynch_Stream::mutex_ [protected]


Mutex to protect work.

ACE_Proactor* ACE_SSL_Asynch_Stream::proactor_ [protected]


The proactor.

Reimplemented from ACE_Handler.

SSL* ACE_SSL_Asynch_Stream::ssl_ [protected]


The SSL session.

Stream_Type ACE_SSL_Asynch_Stream::type_ [protected]


Stream Type ST_CLIENT/ST_SERVER.

The documentation for this class was generated from the following files:
