ACE_WIN32_Asynch_Write_Dgram Class Reference

This class is a factory for starting off asynchronous writes on a UDP socket. More...

#include <WIN32_Asynch_IO.h>

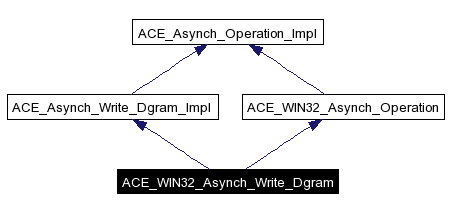

Inheritance diagram for ACE_WIN32_Asynch_Write_Dgram:

Inheritance graph
[legend]

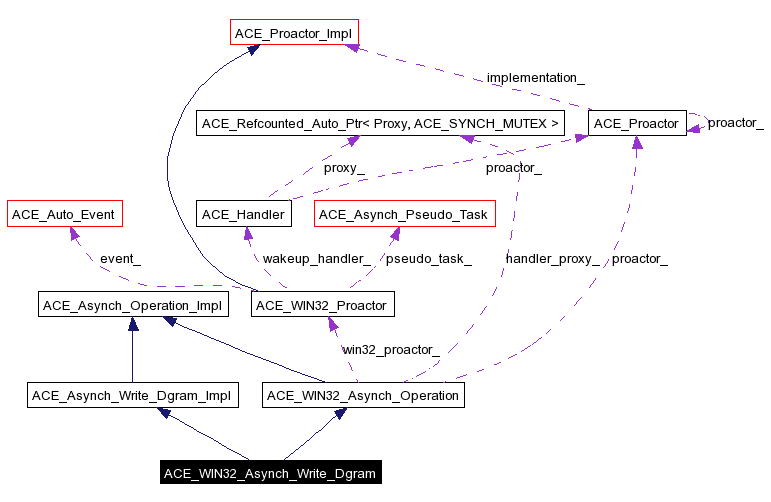

Collaboration diagram for ACE_WIN32_Asynch_Write_Dgram:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_WIN32_Asynch_Write_Dgram (ACE_WIN32_Proactor *win32_proactor)
 Constructor.
virtual ~ACE_WIN32_Asynch_Write_Dgram (void)
 Destructor.
virtual ssize_t send (ACE_Message_Block *message_block, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, const void *act, int priority, int signal_number)
int open (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)
int cancel (void)
ACE_Proactorproactor (void) const
 Return the underlying proactor.

Protected Member Functions

 ACE_WIN32_Asynch_Write_Dgram (void)
 Do-nothing constructor.

Detailed Description

This class is a factory for starting off asynchronous writes on a UDP socket.

Once <open> is called, multiple asynchronous <writes>s can started using this class. A ACE_Asynch_Write_Stream::Result will be passed back to the <handler> when the asynchronous write completes through the <ACE_Handler::handle_write_stream> callback.


Constructor & Destructor Documentation

ACE_WIN32_Asynch_Write_Dgram::ACE_WIN32_Asynch_Write_Dgram ACE_WIN32_Proactor win32_proactor  )


Constructor.

ACE_WIN32_Asynch_Write_Dgram::~ACE_WIN32_Asynch_Write_Dgram void   )  [virtual]


Destructor.

ACE_WIN32_Asynch_Write_Dgram::ACE_WIN32_Asynch_Write_Dgram void   )  [protected]


Do-nothing constructor.


Member Function Documentation

int ACE_WIN32_Asynch_Write_Dgram::cancel void   )  [virtual]


This cancels all pending accepts operations that were issued by the calling thread. The function does not cancel asynchronous operations issued by other threads.

Reimplemented from ACE_WIN32_Asynch_Operation.

int ACE_WIN32_Asynch_Write_Dgram::open const ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
const void *  completion_key,
ACE_Proactor proactor
[virtual]


Initializes the factory with information which will be used with each asynchronous call. If (<handle> == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the <handler> to get the correct handle.

Reimplemented from ACE_WIN32_Asynch_Operation.

ACE_Proactor * ACE_WIN32_Asynch_Write_Dgram::proactor void   )  const [virtual]


Return the underlying proactor.

Reimplemented from ACE_WIN32_Asynch_Operation.

ssize_t ACE_WIN32_Asynch_Write_Dgram::send ACE_Message_Block message_block,
size_t &  number_of_bytes_sent,
int  flags,
const ACE_Addr addr,
const void *  act,
int  priority,
int  signal_number
[virtual]


This starts off an asynchronous send. Upto <message_block->total_length()> will be sent. <message_block>'s <rd_ptr> will be updated to reflect the sent bytes if the send operation is successfully completed. Return code of 1 means immediate success and <number_of_bytes_sent> is updated to number of bytes sent. The <ACE_Handler::handle_write_dgram> method will still be called. Return code of 0 means the IO will complete proactively. Return code of -1 means there was an error, use errno to get the error code.

Scatter/gather is supported on WIN32 by using the <message_block->cont()> method. Up to ACE_IOV_MAX <message_block>'s are supported. Upto <message_block->length()> bytes will be sent from each <message block=""> for a total of <message_block->total_length()> bytes. All <message_block>'s <rd_ptr>'s will be updated to reflect the bytes sent from each <message_block>.

Implements ACE_Asynch_Write_Dgram_Impl.


The documentation for this class was generated from the following files:
Generated on Thu Feb 16 03:40:31 2006 for ACE by  doxygen 1.3.9.1
