ACE_Multihomed_INET_Addr Class Reference

Extends ACE_INET_Addr with support for multi-homed addresses. More...

#include <Multihomed_INET_Addr.h>

Inheritance diagram for ACE_Multihomed_INET_Addr:

Inheritance graph
[legend]

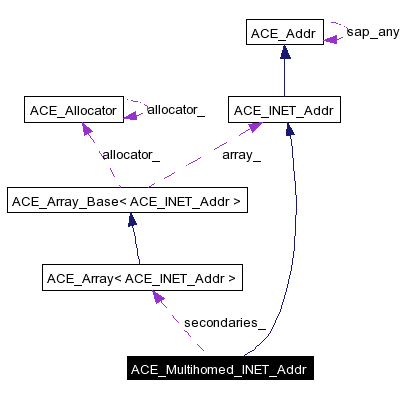

Collaboration diagram for ACE_Multihomed_INET_Addr:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Multihomed_INET_Addr (void)
 Default constructor.
 ACE_Multihomed_INET_Addr (const char address[])
 ACE_Multihomed_INET_Addr (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
 ACE_Multihomed_INET_Addr (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
 ACE_Multihomed_INET_Addr (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
int set (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
 ~ACE_Multihomed_INET_Addr (void)
 Use compiler-generated copy constructor. Use compiler-generated assignment operator. Default dtor.
int set (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
int set (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
void set_port_number (u_short, int encode=1)
size_t get_num_secondary_addresses () const
int get_secondary_addresses (ACE_INET_Addr *secondary_addrs, size_t size) const
void get_addresses (sockaddr_in *addrs, size_t size) const
void get_addresses (sockaddr_in6 *addrs, size_t size) const
 IPV6 version of the above.

Private Attributes

ACE_Array< ACE_INET_Addrsecondaries_

Detailed Description

Extends ACE_INET_Addr with support for multi-homed addresses.


Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr void   )


Default constructor.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr const char  address[]  )  [explicit]


Initializes an <ace_multihomed_inet_addr> from the <address>, which can be "ip-number:port-number" (e.g., "tango.cs.wustl.edu:1234" or "128.252.166.57:1234"). If there is no ':' in the <address> it is assumed to be a port number, with the IP address being INADDR_ANY.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr u_short  port_number,
const char  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const char *  (secondary_host_names[]) = 0,
size_t  size = 0


Constructs an <ace_multihomed_inet_addr> from a <port_number>, a <primary_host_name>, and an array of <secondary_host_names>. <size> is taken to be the length of the array. If <encode> is non-zero, then <port_number> is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. <address_family> can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr u_short  port_number,
ACE_UINT32  primary_ip_addr = INADDR_ANY,
int  encode = 1,
const ACE_UINT32 *  secondary_ip_addrs = 0,
size_t  size = 0


Constructs an <ace_multihomed_inet_addr> from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr u_short  port_number,
const wchar_t  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const wchar_t *  (secondary_host_names[]) = 0,
size_t  size = 0


WCHAR versions of the methods that take char's as arguments.

ACE_Multihomed_INET_Addr::~ACE_Multihomed_INET_Addr void   )


Use compiler-generated copy constructor. Use compiler-generated assignment operator. Default dtor.


Member Function Documentation

void ACE_Multihomed_INET_Addr::get_addresses sockaddr_in6 *  addrs,
size_t  size
const


IPV6 version of the above.

void ACE_Multihomed_INET_Addr::get_addresses sockaddr_in *  addrs,
size_t  size
const


Initialize user-supplied array <addrs> with the the current primary and secondary addresses. <size> is taken as the size of this array.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE size_t ACE_Multihomed_INET_Addr::get_num_secondary_addresses  )  const


Returns the number of secondary addresses.

int ACE_Multihomed_INET_Addr::get_secondary_addresses ACE_INET_Addr secondary_addrs,
size_t  size
const


Initialize user-supplied array <secondary_addrs> with the current secondary addresses. <size> is taken as the size of this array.

int ACE_Multihomed_INET_Addr::set u_short  port_number,
ACE_UINT32  primary_ip_addr = INADDR_ANY,
int  encode = 1,
const ACE_UINT32 *  secondary_ip_addrs = 0,
size_t  size = 0


Initializes an <ace_multihomed_inet_addr> from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

int ACE_Multihomed_INET_Addr::set u_short  port_number,
const char  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const char *  (secondary_host_names[]) = 0,
size_t  size = 0


Initializes an <ace_multihomed_inet_addr> from a <port_number>, a <primary_host_name>, and an array of <secondary_host_names>. <size> is taken to be the length of the array. If <encode> is non-zero, then <port_number> is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. <address_family> can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

int ACE_Multihomed_INET_Addr::set u_short  port_number,
const wchar_t  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const wchar_t *  (secondary_host_names[]) = 0,
size_t  size = 0


void ACE_Multihomed_INET_Addr::set_port_number u_short  ,
int  encode = 1


Sets the port number without affecting the host name. The port numbers of the primary address, and of any and all secondary addresses, are affected. If <encode> is enabled, then <port_number> is converted into network byte order, otherwise it is assumed to be in network byte order already and is passed straight through.

Reimplemented from ACE_INET_Addr.


Member Data Documentation

ACE_Array<ACE_INET_Addr> ACE_Multihomed_INET_Addr::secondaries_ [private]



The documentation for this class was generated from the following files:
