ACE_Configuration_Win32Registry Class Reference

The win32 registry implementation of a configuration database. More...

#include <Configuration.h>

Inheritance diagram for ACE_Configuration_Win32Registry:

Inheritance graph
[legend]

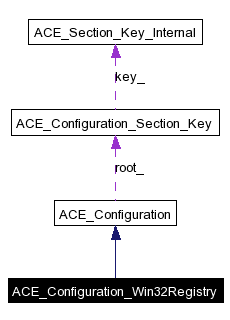

Collaboration diagram for ACE_Configuration_Win32Registry:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Configuration_Win32Registry (HKEY hKey)
virtual ~ACE_Configuration_Win32Registry (void)
 Destructor.
virtual int open_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, int create, ACE_Configuration_Section_Key &result)
virtual int remove_section (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *sub_section, int recursive)
 Removes a named section.
virtual int enumerate_values (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name, VALUETYPE &type)
virtual int enumerate_sections (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name)
virtual int set_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const ACE_TString &value)
 Sets a string-typed value.
virtual int set_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int value)
 Sets a integer-typed value.
virtual int set_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const void *data, size_t length)
 Sets a binary-typed value.
virtual int get_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, ACE_TString &value)
 Gets a string-typed value.
virtual int get_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int &value)
 Gets an integer-typed value.
virtual int get_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, void *&data, size_t &length)
 Gets a binary-typed value.
virtual int find_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, VALUETYPE &type)
virtual int remove_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name)
 Removes the the value name from key. returns non zero on error.
virtual bool operator== (const ACE_Configuration_Win32Registry &rhs) const
virtual bool operator!= (const ACE_Configuration_Win32Registry &rhs) const

Static Public Member Functions

HKEY resolve_key (HKEY hKey, const ACE_TCHAR *path, int create=1)

Protected Member Functions

int load_key (const ACE_Configuration_Section_Key &key, HKEY &hKey)
 Gets the HKEY for a configuration section.
 ACE_Configuration_Win32Registry (void)
 ACE_Configuration_Win32Registry (const ACE_Configuration_Win32Registry &rhs)
ACE_Configuration_Win32Registryoperator= (const ACE_Configuration_Win32Registry &rhs)

Detailed Description

The win32 registry implementation of a configuration database.

The win32 implementation basically makes calls through to the registry functions. The API is very similar so very little work must be done


Constructor & Destructor Documentation

ACE_Configuration_Win32Registry::ACE_Configuration_Win32Registry HKEY  hKey  )  [explicit]


Constructor for registry configuration database. hKey is the base registry key to attach to. This class takes ownership of hKey, it will invoke <regclosekey> on it upon destruction.

virtual ACE_Configuration_Win32Registry::~ACE_Configuration_Win32Registry void   )  [virtual]


Destructor.

ACE_Configuration_Win32Registry::ACE_Configuration_Win32Registry void   )  [protected]


ACE_Configuration_Win32Registry::ACE_Configuration_Win32Registry const ACE_Configuration_Win32Registry rhs  )  [protected]



Member Function Documentation

virtual int ACE_Configuration_Win32Registry::enumerate_sections const ACE_Configuration_Section_Key key,
int  index,
ACE_TString name
[virtual]


Enumerates through the subsections in a section.

Parameters:
key Section key to iterate through.
index Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name Receives the subsection's name.
Note:
You may not modify the key section while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values:
0 for success, name has a valid name.
1 there are no more subsections in the section.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::enumerate_values const ACE_Configuration_Section_Key key,
int  index,
ACE_TString name,
VALUETYPE type
[virtual]


Enumerates through the values in a section.

Parameters:
key Section key to iterate through.
index Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name Receives the value's name.
type Receives the value's data type.
Note:
You may not delete or add values while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values:
0 for success, name and type are valid.
1 there are no more values in the section.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::find_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
VALUETYPE type
[virtual]


Retrieves the type of a named configuration value.

Parameters:
key Configuration section to look up the name in.
name Name of the configuration value to get the type of.
type Receives the data type of the named value, if it exists.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::get_binary_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
void *&  data,
size_t &  length
[virtual]


Gets a binary-typed value.

Parameters:
key Configuration section to get the value from.
name Name of the configuration value to get.
data Receives a pointer to memory holding the binary data for the value. This method allocates the memory pointed to using operator new[]. The caller is responsible for freeing the memory using operator delete[].
length Receives the number of bytes in the value.
Return values:
0 for success; caller is responsible for freeing the returned memory.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::get_integer_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
u_int &  value
[virtual]


Gets an integer-typed value.

Parameters:
key Configuration section to get the value from.
name Name of the configuration value to get.
value Receives the configuration value if it exists and has type INTEGER.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::get_string_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
ACE_TString value
[virtual]


Gets a string-typed value.

Parameters:
key Configuration section to get the value from.
name Name of the configuration value to get.
value Receives the configuration value if it exists and has type STRING.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

int ACE_Configuration_Win32Registry::load_key const ACE_Configuration_Section_Key key,
HKEY &  hKey
[protected]


Gets the HKEY for a configuration section.

virtual int ACE_Configuration_Win32Registry::open_section const ACE_Configuration_Section_Key base,
const ACE_TCHAR sub_section,
int  create,
ACE_Configuration_Section_Key result
[virtual]


Opens a named section in an existing section.

Parameters:
base Existing section in which to open the named section.
sub_section Name of the section to open.
create If zero, the named section must exist. If non-zero, the named section will be created if it does not exist.
result Reference; receives the section key for the new section.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual bool ACE_Configuration_Win32Registry::operator!= const ACE_Configuration_Win32Registry rhs  )  const [virtual]


ACE_Configuration_Win32Registry& ACE_Configuration_Win32Registry::operator= const ACE_Configuration_Win32Registry rhs  )  [protected]


virtual bool ACE_Configuration_Win32Registry::operator== const ACE_Configuration_Win32Registry rhs  )  const [virtual]


virtual int ACE_Configuration_Win32Registry::remove_section const ACE_Configuration_Section_Key key,
const ACE_TCHAR sub_section,
int  recursive
[virtual]


Removes a named section.

Parameters:
key Section key to remove the named section from.
sub_section Name of the section to remove.
recursive If non zero, any subkeys below sub_section are removed as well.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::remove_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name
[virtual]


Removes the the value name from key. returns non zero on error.

Implements ACE_Configuration.

HKEY ACE_Configuration_Win32Registry::resolve_key HKEY  hKey,
const ACE_TCHAR path,
int  create = 1
[static]


This method traverses <path> through <hkey>. It is useful when you want the HKEY for a specific registry key, especially when initializing this implementation. Caller is responsible for closeing this key when it is no longer used. If create is 1 (default) the keys are create if they don't already exist. Returns 0 on error

virtual int ACE_Configuration_Win32Registry::set_binary_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
const void *  data,
size_t  length
[virtual]


Sets a binary-typed value.

Parameters:
key Configuration section to set the value in.
name Name of the configuration value to set. If a value with the specified name exists, it is replaced.
data Pointer to the binary data for the value.
length Number of bytes for the new value.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::set_integer_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
u_int  value
[virtual]


Sets a integer-typed value.

Parameters:
key Configuration section to set the value in.
name Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value The integer to set the configuration value to.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

virtual int ACE_Configuration_Win32Registry::set_string_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
const ACE_TString value
[virtual]


Sets a string-typed value.

Parameters:
key Configuration section to set the value in.
name Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value The string to set the configuration value to.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.


The documentation for this class was generated from the following file:
